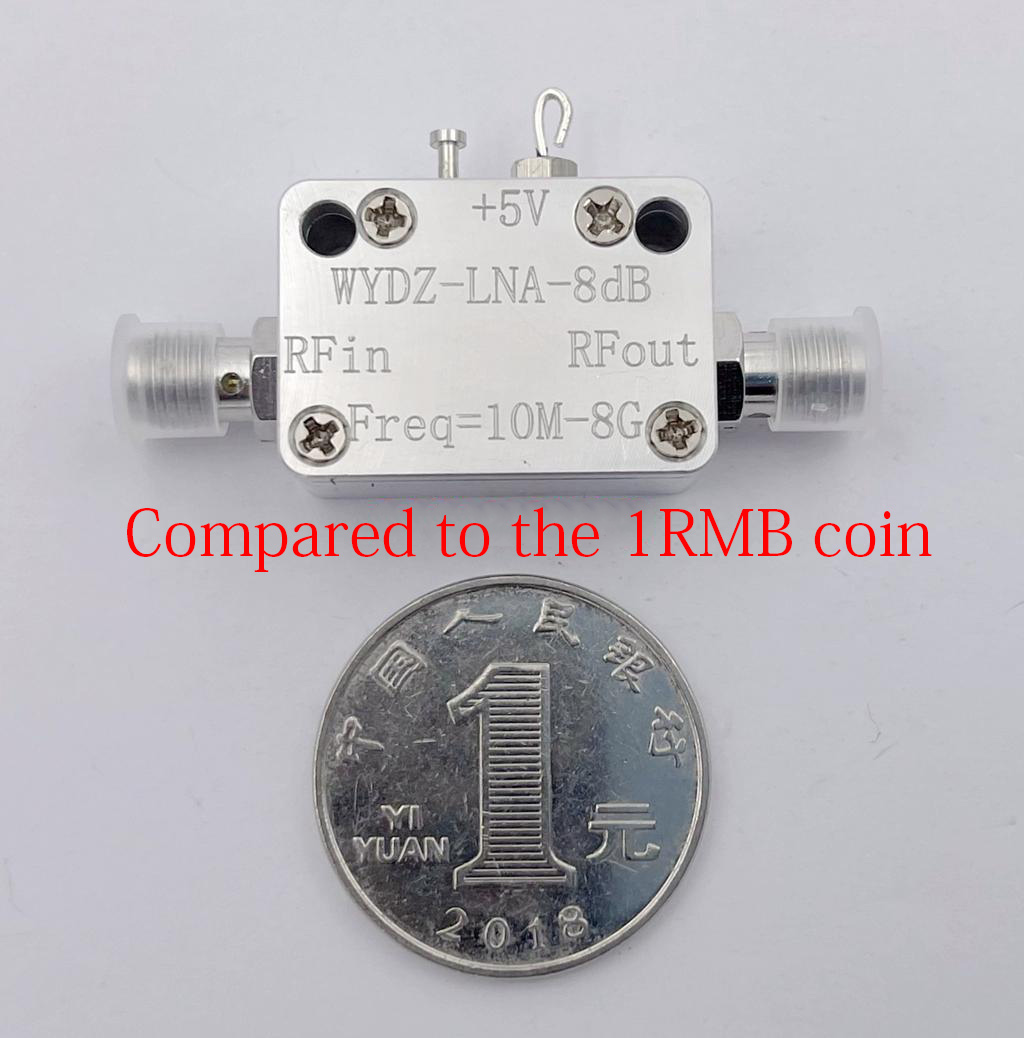

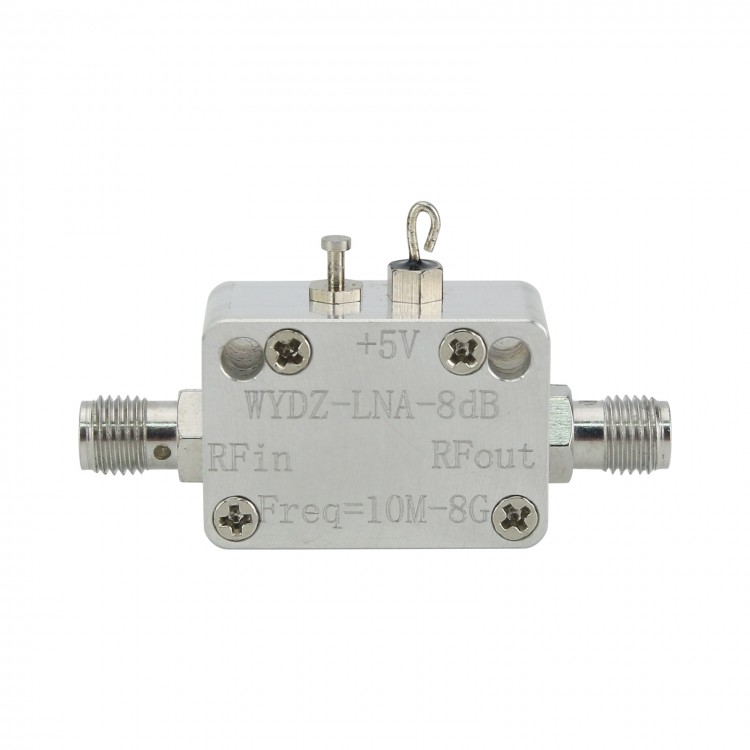

WYDZ-LNA-10M-8G-8dB RF 10MHz-8GHz Wide Band Amplifier Excellent Flatness Low Noise Amplifier with SMA Female Connector
Description:
- It is an ultra wide band amplifier with full frequency band of 10M - 8000M, noise figure ≤ 4.5 and 8dB gain.

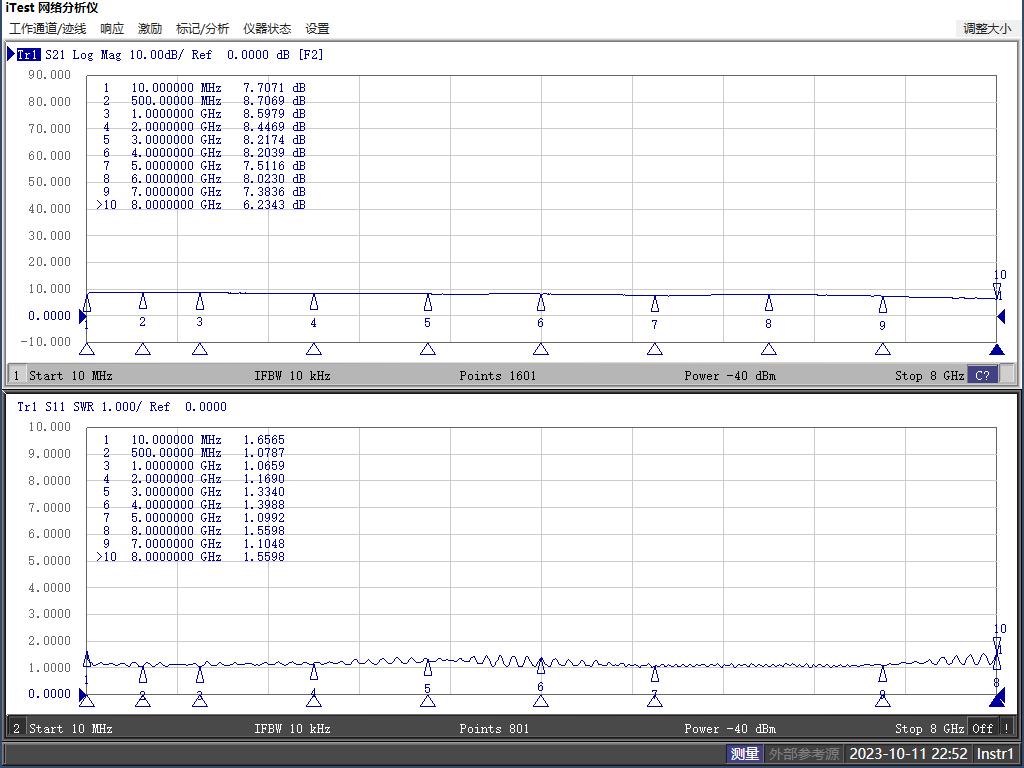

- It has excellent flatness in the full frequency band
- It can be used as an input low noise amplifier for broadband receivers, or as a driver stage for mixer local oscillator signals.
- It can be directly applied as a system module or as a verification platform.
Specification:
- Working frequency: 10M - 8000M

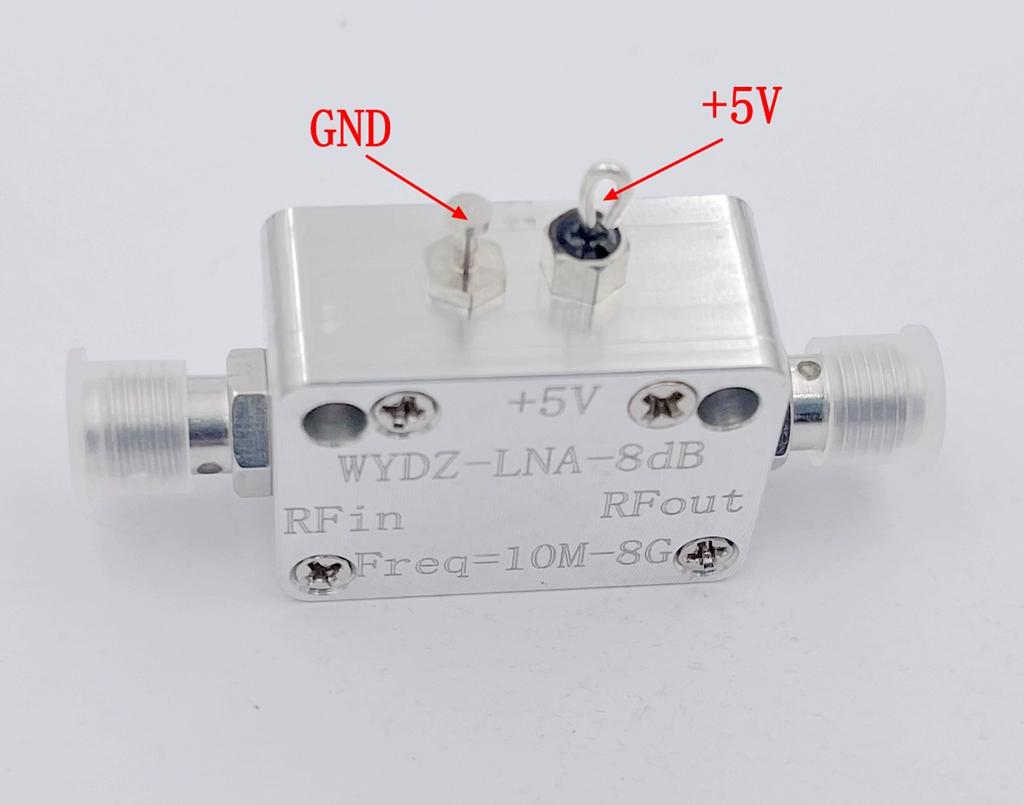

- Working voltage: 5V/70mA
- Gain: 8dB at 10M - 8000M
- NF: 4.5dB at 4000M
- P1dB: 13dB at 4000M
- Size: 26 x 18 x 12mm (excluding the connector size)
- Input and output impedance: 50ohm

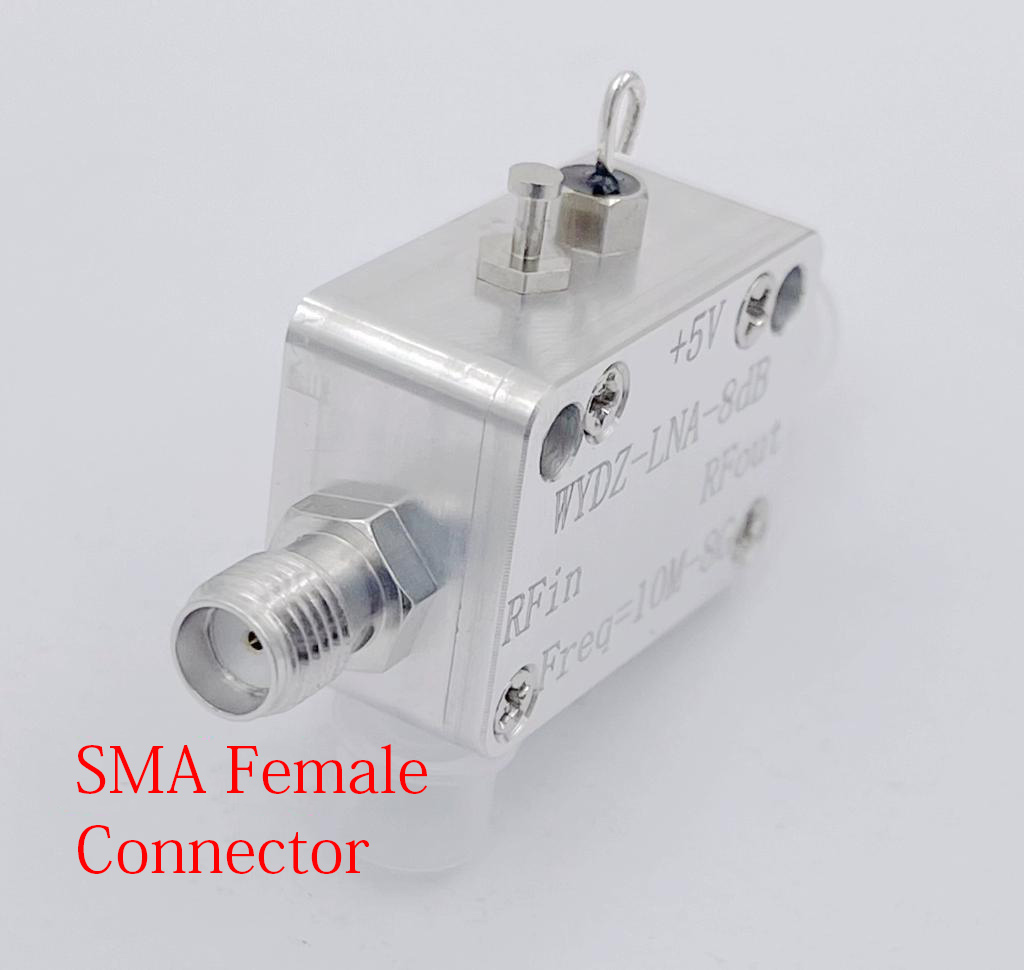

- Connector: SMA Female connector
Package Included:
- 1 x LNA
