X-900 5200mAh ARC Fusion Splicer Fiber Fusion Splicer Core To Core Alignment For SM MM DS NZDS

X-900 5200mAh ARC Fusion Splicer Fiber Fusion Splicer Core To Core Alignment For SM MM DS NZDS

Description:

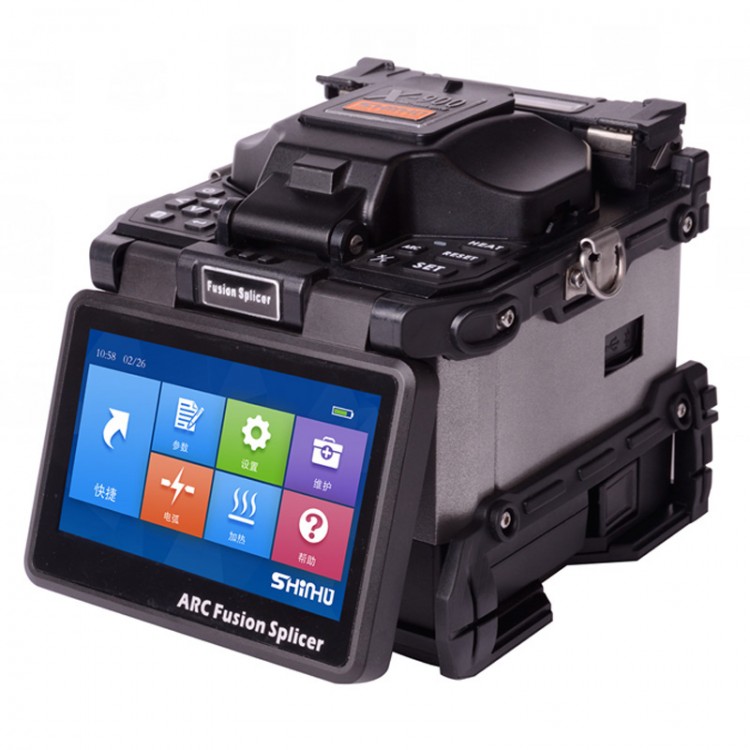

X-900 Fiber fusion splicer is a 6-motor fusion splicer with the latest fiber core to core alignment technology. It has very stable performance and low fusion loss. It is suitable for different fiber optical projects , including backbone and FTTx.

Features:
- 1s boot up, 6s splicing, 16s heating
- 6 motors accurate core to core alignment
- Automatic fiber type identification
- 6s stable splicing & 16s fast heating
- Automatic & real-time ARC calibration
- Upgraded CPU with 30% power saving
- Real-time heating temperature monitoring
- Anti-shock,Anti-dust and waterproof
- Apply to bare fibers, drop cables, patch cords etc.

Specifications:
- Applicable Fiber: SM(ITU-T G.652), MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
- Diameter of cladding: 80 -150μm
- Diameter of Coating: 160-900μm
- Typical Splice Loss: SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
- Return Loss: ＞60dB
- Fiber Cleaved Length: 10-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
- Splicing Program: 40 groups
- Operation Mode: Automatic/Manual
- Auto-heating: Available
- Typical Splicing Time: 6 seconds
- Typical Heating Time: 16 seconds
- Fiber Magnification: 250X (X or Y view), 125X (X and Y view)
- Display Screen: 5.0 inch color LCD monitor
- Records Storage: 4000 results
- Loss Evaluation: Available
- Tension Test: 1.8-2.2N
- Interface: GUI menu interface, easy for operation
- Electricity: 5200mAh Li-battery, typical 300 cycles splicing and heating, suppport separating charging
- Power Supply: Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V
- Electrodes Life: More than 4000 ARC discharges, can be replaced vonveniently
- Terminal: SB2.0 port, for software upgrading and records exporting
- Operating Conditions: Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃to 50℃, Wind speed: Max 15m/s
- Dimension: 160mm(L) * 136mm(W) * 140mm(H) (including rubber armor)

Package Included:
- 1 x Carrying Box
- 1 x Miller Pliers
- 1 x Cooling Tray
- 1 x Pair of Spare Electrodes
- 1 x Fiber Cleaver
- 1 x Power Adapter
- 1 x Strap
- 1 x Drop Cable Stripper
- 1 x Power Cord
- 1 x User Manual
