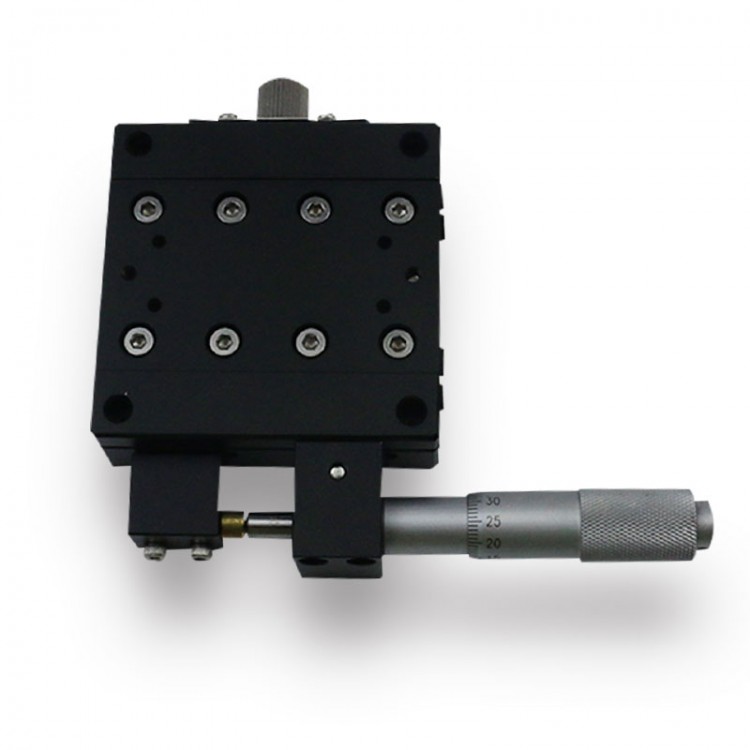

X Axis 60*60mm Manual Displacement Platform ±12.5mm Travel Linear Stage Sliding Table LX60-R±12.5
Features:
- Using cross roller guide for high accuracy, smooth movement
- Lightweight: its main material aluminum alloy makes it suitable for built in other devices
- Drive Mode: micrometer drive mode for extra accuracy
- To achieve precise mobile, high precision, stable performance, supporting facilities, strong interchangeability, convenient installation and disassembly. Proportion of mounting hole design to adapt to different requirements for installation and convenient fast combined into multidimensional mobile station.
Parameters:

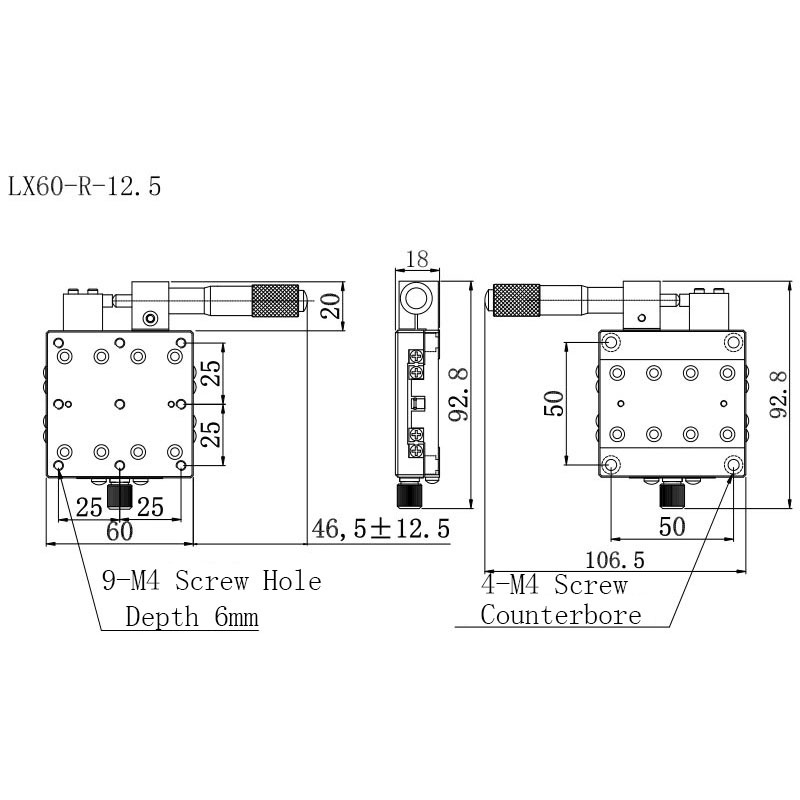

- Model: LX60-R±12.5
- Movement Direction: X Axis
- Adjustment: Linear Displacement Fine Adjustment
- Material: Aluminum Alloy (Surface black anodizing)
- Dimension: 60 x 60mm
- Rail Type: V-rail (Cross Roller Guide)
- Travel: ±12.5mm
- Table Thickness: 18mm
- Minimum Scale: 10μm
- Load: 49N (5kgf)
- Accuracy: 10μm
- Linearity: 5μm
- Weight: 0.29kg
Package Included:
- 1 x Manual Displacement Platform
