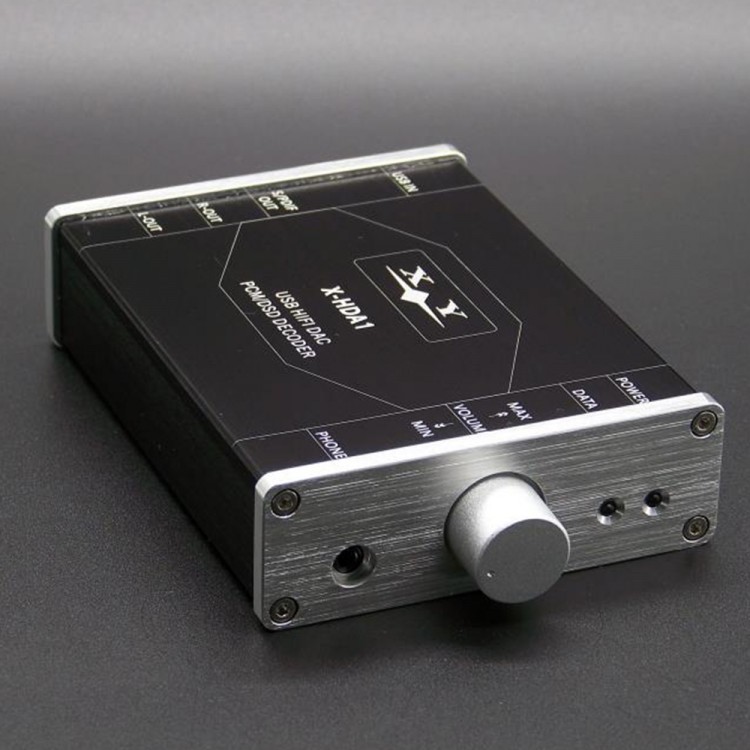

X-HDA1 SA9227+CS4398 24BIT 192KHZ PCM DSD HIFI USB DC Decoder DAC for Audio
Description:
X-HDA1 is USB DAC decoder for decoding PCM/ DSD. Support 24bit/192Khz PCM encoding and DSD64/ DSD128/ DSD256 encoding, with headphone output.
Add the mute circuit, cut down the noise.
Specification:
- Dimension: 130*98*34 mm
Circuit output:
- Range: 2.1V (RMS)
- Distortion: <0.01% (1Khz rl=10k)
- SNR: >100DB
- Dynamic range: >95db
Headphone output:
- Output power: 50mW (32Ohm)
- Distortion: <0.5%
- SNR: >100DB
- Dynamic range: >95db
SA9227:
- Audio processor, support 32bit 384Kzh sampling rate
- Support asynchronous mode
- Support DSD encoding, support DSD64/DSD128/DSD256
CS4398:
- Dual channel, 16Mhz, JEET input OP Amp
- Bandwidth 16Mhz (-3db)
- THD: -108db when 20Khz
- SR: 22V/us
Package included:
- 1 x Decoder
