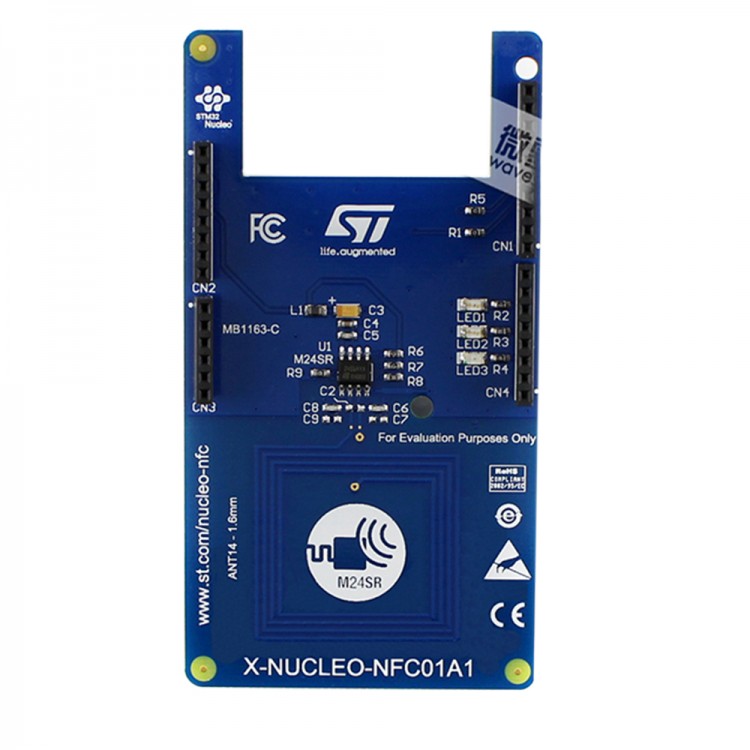

X-NUCLEO-NFC01A1 M24SR64-Y Dynamic Expansion Board Compatible with Arduino NFC TAG
Description:
The X-NUCLEO-NFC01A1 is a Dynamic NFC tag evaluation board to allow expansion of the STM32 Nucleo boards.
It is compatible with the Arduino UNO R3 connector layout and it is designed around the M24SR64-Y. The M24SR64-Y device is a dynamic NFC/RFID tag IC with a dual interface. It embeds a 64 Kbit EEPROM memory. It can be operated from an I2C interface or by a 13.56 MHz RFID reader or a NFC phone.
The board is powered through the Arduino UNO R3 connectors. It also includes three LEDs for general purpose.
X-NUCLEO-NFC01A1 is based on dynamic expansion board M24SR64-Y design, compatible with Arduino UNO R3 interfaces.
M24SR64-Y is a dual interface dynamic NFC / RFID tag chip, embedded 64Kbit EEPROM, RF protocol is compatible with ISO / IEC 14443 Type A and NFC Forum Type 4 Tag.
ST company also provides software STM32Cube expansion pack X-CUBE-NFC1, reduce development threshold, user-friendly program transplant in different MCU series.
Features:
- M24SR64-Y Dynamic NFC/RFID tag IC
- NFC antenna: 31 mm x 30 mm 13.56 MHz double layer inductive antenna etched on the PCB (ANT14)
- Compatible with STM32 Nucleo boards
- Equipped with Arduino UNO R3 connectors
- Powered through the Arduino UNO R3 connectors
- 3 color LEDs for general purpose

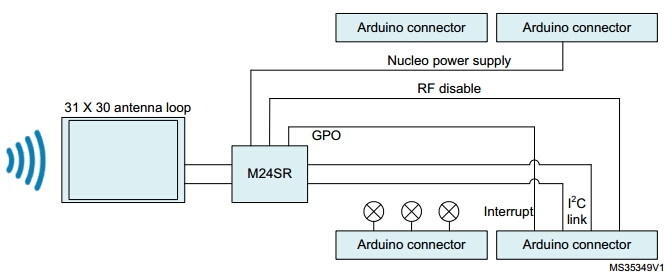

Application Diagram:
Package included:
- 1 x Expansion Board
