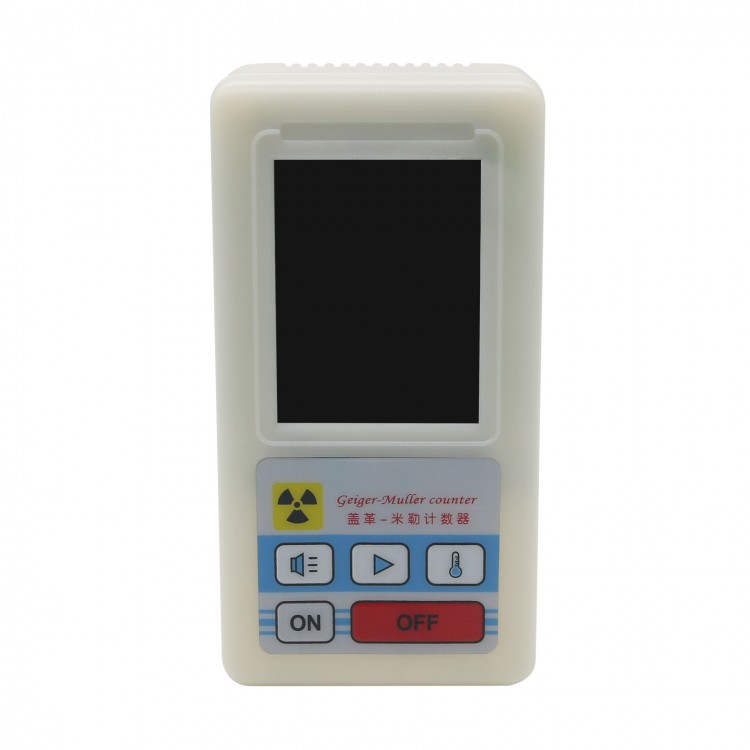

X-ray Geiger-Muller Counter Nuclear Radiation GM Tube Detector Tester Monitor
Overview:
It is designed to be a portable and convenient device. The device comes with built in audible and visual signals for the level of radiation detected. It can be used for radiation detection and monitoring both indoor and outdoor, as well as in other similar environments. It features automatic data recording. It can continually monitor the radiation and log the data each second into internal memory. When connected to a PC, software can download the radiation history data to the computer and the user is able to analyze those data later.
Features:
1.High sensitivity.
2.Wide measuring range.
3.Advantages of long life.
4. Using of sophisticated military grade GM tube as the core sensor.
Use:
1.Material inspection.
2.environmental test.
3.Radiology Protection.
4.Radiopharmaceuticals screening.
Specifications:
1. Detectable species: Beta Gamma X-ray
2. Sensor Type: GM tube
3. Energy Range: 50kev-1.5mev less than 30%
4. Relative intrinsic error: less than plus or minus 10%
5. Sensitivity: 80cpm / USV / co-60
6. The maximum dose equivalent rate: 99.99usv / h
7.Voice Source: Real particle sound / Alarm sound / Mute
8. The use of ambient temperature: -25 ~+45℃
9.Relative humidity: less than 95%
10. Power supply: 2 x AA batteries(NOT included), can be powered by USB port when you need long-term monitoring time.
Instructions
1,power button ON to boot, Boot automatically display real-time monitoring interface
2, After the shutdown, press and hold off zero current consumption
3, Triangular start
button is used to measure the mean, Natural environment there is
background radiation (background radiation) It will fluctuate within a
certain range.
4, The top of the
screen displays a blue font for the "second" real-time update of the
dose rate, which is characterized by large fluctuations, update speed,
real-time, is the mean of the middle of the red font display, is a mean
dose rate period, when detecting an item or the environment when press
the start button (this time can no longer move the tester)
Enter the state
average measurement will display the measurement results after the end
of the trend diagram below presents the average real measurement value
of each moment, mean measurement is characterized by high precision, the
effective dose equivalent response rate real environment, but the
elapsed time is longer,
6, horn button is used to select the sound source device, each time you press the switch once source.
When the small
speaker icon is displayed when the artificial alarm sound (only achieve
this status only sound the alarm threshold)
When the mute icon is displayed when that turn off all sources.
7, The scale key (right key) is used to switch the alarm threshold,
Four optional 0.5 / 1.0 /2.0 /5.0
Package included:
1 x Geiger Counter Nuclear Radiation Detector
1 x Packing Box
