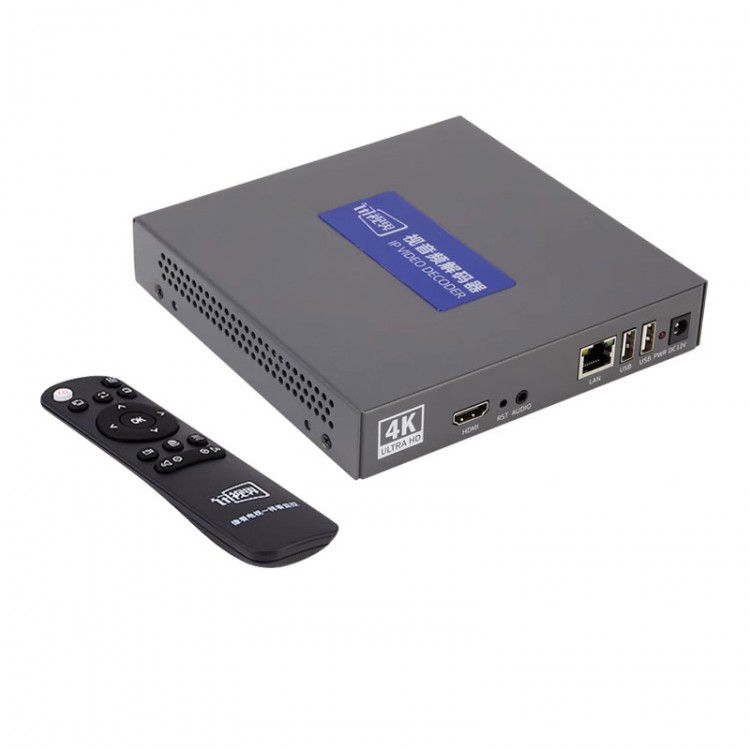

X1 Monitor Video Decoder Network 4K HD Video Splitter Support 1024-Channel Input and 16 Split-screen Display with Remote Control

X1 Monitor Video Decoder Network 4K HD Video Splitter Support 1024-Channel Input and 16 Split-screen Display with Remote Control

Description:
- The X1 series video decoder is born for the convenient use of video surveillance image display, and innovative functions such as page flipping display, scene memory, and rotation display can meet various needs. Graphical operation interface, simplified menu design, simple and easy to use, stable and reliable. Reduce user learning difficulty and project operation and maintenance costs. Use the remote control to operate and watch the surveillance like watching TV!

- Suitable for applications that require multiple locations to display video surveillance images. Connect to network cameras, video recorders, and other devices through network transmission, and connect the HDMI-compatible output interface to the local display device for preview and operation. Support remote networking and deployment within the local area network or SDWAN, flexible and convenient. Use 2.4G wireless remote control/mouse/computer client software for operation. Can work independently without the need for a computer.

- The X3 series video decoder supports 1024 monitoring video inputs, 1/4/9/16 screen segmentation display, supports next/previous screen page flipping display, scene memory and recovery, round robin display, single screen amplification, pan tilt control and other functions. Adopting an embedded software and hardware architecture, it can operate stably for a long time without maintenance.

- Compatible with common brands of cameras, embedded hard disk recorders, and devices that support for ONVIF/RTSP protocol, such as IPC and NVR/DVR from brands for Hikvision, Dahua, and UNV. Support manual addition of custom RTSP addresses. Built in protocol for Hikvision, capable of searching or manually adding for-Hikvision branded devices without the need to enable ONVIF;

- Decoding capability supports up to 12 million pixel cameras, with 1 frame of 12/8 million pixels, 4 frames of 4 million pixels, and 9-screen 2 million pixels (1080P), 16 screen D1 resolution decoding ability; Based on the number of screen segments and adaptive decoding of camera pixels, automatically decode and display the highest supported pixels, presenting the best clarity. Supports advanced image encoding technologies such as intelligent encoding, SMART265, and 265+. 4K ultra high definition HDMI-compatible output interface.

Features:
- Easy to use, wireless remote control/mouse operation, watching surveillance like watching TV.
- Previous/Next Page flipping display function, fearless of numerous cameras, can flip and view quickly.
- Scene memory and recovery, previous/next scene switching, and scene rotation function.
- Supports wireless mouse operation and embedded graphical interface, allowing for independent operation and configuration without the need for a computer.
- Quick operation toolbar, with easy access to commonly used functions and automatic display or hiding when hovering over the mouse (mouse operation).
- The device list is automatically displayed and hidden when the mouse is docked, and you can choose to switch images without entering the secondary menu (mouse operation).
- Supports up to 1024 camera inputs.
- Add NVR/DVR/XVR/IPC and devices supporting RTSP protocol from manufacturers for Hikvision, Dahua, and UNV.
- Support search addition, manual addition, batch addition, and custom RTSP protocol addition of devices.
- Support for Hikvision protocol searching and adding devices, without the need to turn on the ONVIF protocol for each camera one by one (mouse operation).
- Supports video decoding with up to 12 million pixel cameras and resolutions below, and supports 4K decoding.
- Adaptive window dynamic decoding, automatically selecting the optimal display effect based on the number of window divisions and supported resolutions.
- Decoding capability: 12 million/4K for 1 frame, 4 million pixels for 4 frames, 1080P for 9 frames, 16 screen D1 resolution.
- 4K ultra high definition HDMI output interface.
- 1/4/9/16 screen segmentation display.
- Provide free computer client software to control single and multiple decoders.
- Support Baseline, Main, and High-profile encoding levels for H.265/H.264.
- Supporting multiple advanced encoding methods such as intelligent encoding, Smart265265+, etc.
- Add for Hikvision, Dahua, and UNV NVR on the computer client to automatically synchronize channel names.
- Computer client for ONVIF protocol automatically synchronizes names when searching for and adding devices, supports EXCLE export and modification before importing.
- Support two automatic patrol methods: scene round robin and channel round robin.
- PTZ control: The remote control controls rotation and magnification; Docking the mouse on the right side of the screen will automatically pop up the control interface.
- Permission management, supporting administrator and regular user permission control.
- Screen segmentation lines and channel character display can be set to show/hide.
- Collaborate with Shift and Ctrl keys to batch select multiple or click on the camera, and batch connect the images that need to be displayed (computer client).
- Embedded software and hardware, stable and reliable long-term operation, maintenance free.

Specification:
Access Parameter:
- Supported RTSP devices: such as network camera IPC, network /analog /hybrid recorder NVR /DVR /XVR, video server DVS, HDMI-compatible /VGA encoder, etc.
- Access protocols: include common brand private protocols for Hikvision /Dahua, as well as ONVIF /RTSP protocols, supporting manual addition of RTSP protocols.
- Supported device resolution: up to 12 million pixels, and is backward compatible with 8/5/4/3/2/1.3/1 million pixels at 30/25fps and D1/VGA/CIF resolution devices, corresponding to resolutions of 4000x3000 /3840x2160 /2560x1920 /2560x1440 /2048x1536 /1920x1080 /1280x960 /1280x720 /704x576 /640x480, 360 /352x288
- Access route: supports 1024 access routes

Output Parameter:
- Output channel: 1 channel HDMI-compatible output, support 4K output resolution
- Output resolution: 1920 x 1080 at 60/50/30/25Hz, 1280 x 1024 at 60Hz, 1366 x 768 at 60Hz, 4K: 3840 x 2160 at 30Hz

Decoding Parameter:
- Decoding resolution: up to 12 million pixel, support 4K decoding (4K: 3840 x 2160) pixel.
- Supported encoding format: support H.265, H.264 standard network video stream decoding; support Samrt265265+, intelligent encoding
- Decoding channel: 16 channels
- Decoding capacity: 800W at 25fps for 1200W per channel, or 2MP at 25fps for 4-channel, or 1080P at 25fps for 9-channel, or D1 at 25fps for 16 channel and below
- Number of screen division: 1/4/9/16 equal scale image division

System Function:
- Operation method: 2.4G wireless remote control; Insert the mouse directly for operation (without the need for a computer); computer client software.
- Main processor: ARM dual core processor and high-performance H.265/H.264 video decoding engine
- Operating system: embedded system
- Featured functions: page flipping display (previous/next screen), scene switching, round robin display (previous/next scene), remote control operation.
- Screen rotation: scene tour/channel tour
- Batch operations: all in, all off, next screen (mouse operation); Shift/Ctrl key combined with batch selection of cameras, batch selection of windows, batch connection of images (operated by client software)
- PTZ control: supports PTZ control and ONVIF network ptz control protocol
- Permission control: support administrator and regular user permission control
- Scene: scene recording and retrieval, deletion, and quick restoration of TV wall scenes
- Screen characters: display on/off
- Device addition: for ONVIF protocol search and addition; manual and batch addition; add custom RTSP protocol; Haikvision Protocol search add (mouse operation)
- Main functions of the client: TV wall video control, decoding card management, importing monitoring points, video preview, video playback, alarm control, electronic map, user management, etc.
- Alarm function: support access to our network alarm host, achieve alarm linkage decoding through switch quantity access, and display on pop-up screen.

Interfaces:
- Network interface: 1 x RJ45 100Mbps adaptive network port
- Video output: 1 x HDMI-compatible (4K) interface
- Audio output: HDMI-compatible_Audio/3.5mm audio output interface
- USB interface: 2 x USB2.0

Other Parameters:
- Power supply: DC12V/1A
- Power consumption: ≤6W
- Working temperature: -10℃ ~ 65℃
- Working humidity: 10% - 90%RH (non-condensing)
- Product size: 154.5 x 30 x 151mm
- Installation method: desktop layout or wall-mounted (the wall-mounted installation bracket is not included)
- Net weight: ≤550g

Package Included:
- 1 x Video Decoder
- 1 x Power Adapter
- 1 x Remote Control
