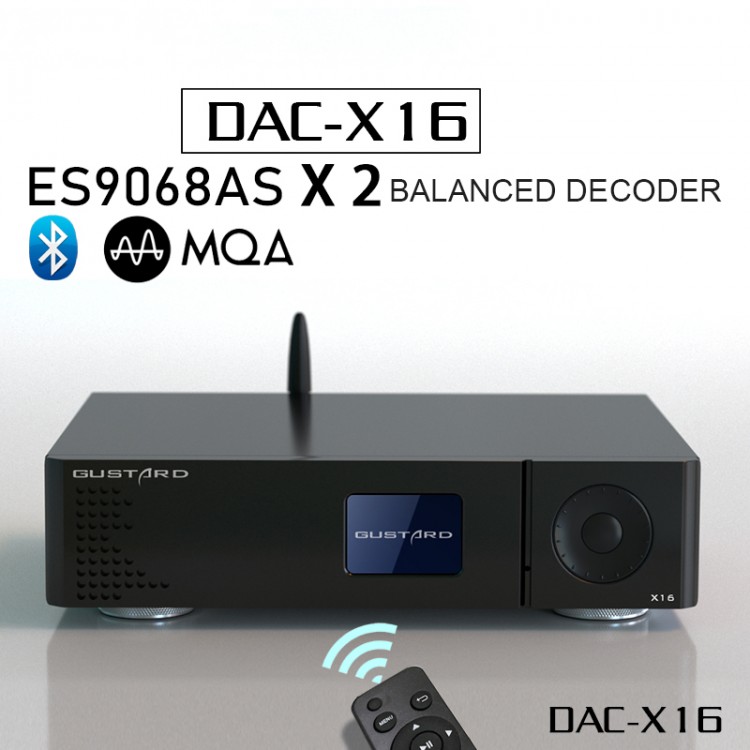

X16 Balanced DAC Bluetooth 5.0 DAC ES9068ASx2 MQA Full Decoding For IIS AES Coaxial Optical Black

X16 Balanced DAC Bluetooth 5.0 DAC ES9068ASx2 MQA Full Decoding For IIS AES Coaxial Optical Black

Advantages:
- Dual ES9068AS
- CPLD chip
- IV adopts OPA1612
- Low distortion, low noise
- LPF uses wafer resistors
- Support IIS, AES, coaxial and optical. Support MQA 2, 3 times expansion
- Fox XMOS. DSD512, PCM768K, MQA full decoding
- Femtosecond crystal oscillator AS318-B
- Bluetooth 5.0
- For LDAC HD audio transmission
- DSD512
- PCM 768K
- MQA full decoder 384K
- Multiple sets of independent power supplies, abundant energy. TPS7A47, TPS7A33
- IIS-H input
- Fully balanced. Complete 4-channel output
- Digital filtering. PCM 3 kinds. Support for NOS mode
- Full function remote controller 0dB~90dB

Features:
- ES9068AS is the latest dual-channel audiophile audio DA chip. It is the follow-up model of the widely acclaimed ES9038Q2M. It can not only achieve the excellent performance of THD+n-120dB and DNR128dBA, but also the world's first audio DA chip with built-in MQA hardware renderer function. An important reason why X16 chooses ES9068AS is that its built-in MQA hardware renderer can directly process SPDIF and I2S input MQA first-order expanded digital audio signals. There is no need to add MQA-related identification and control circuits, so as to achieve as little interference as possible by external control signals when the DAC is working, and finally achieve the ideal MQA playback experience.
- CPLD programmable logic chips. Self-constructed digital integrated circuits with
logic functions, clock management, 2nd PLL, digital shaping, DOP decoder, PCM/DSD depop switch and other exclusive technologies have laid a solid foundation for excellent sound quality.
- IV operational amplifier adopts OPA1612. Low distortion and low noise ensure the excellent performance of the whole machine.
- LPF uses MELF resistors. MELF resistors are significantly better than thick film chip resistors or chip resistors in terms of function, mechanical structure, electrical characteristics, and safety. Noise of MELF resistors is lower than that of thick film chip resistors, and the electrode strength is higher than that of chip resistors. The accuracy of 0.1% is used in key parts, which further guarantees high-performance circuits.
- Single-ended output adopts OPA1612 to convert, and tone and indicators are guaranteed.
- Independent voltage stabilization, multi-stage filtering, multiple sets of voltage stabilization, no mutual interference.
- Use instrument-grade low-noise linear regulators TPS7A47 and TPS7A33.
- Built-in linear power supply, high-quality audio dedicated ring-shaped transformer.
- American femtosecond crystal oscillator AS318-B.
- Equipped with CSR8675chip, supports Bluetooth 5.0 and for LDAC, AAC, SBC, APTX. LDAC can realize 24B/96K high code transmission. Bluetooth function can be turned off in the menu.
- USB interface adopts XU216 chip for XMOS and supports PCM768K, DSD512, MQA full decoding.
- Rich digital filtering + NOS mode. L-FAST. M-SLOW. H-FAST.
- Rich interfaces.
- IIS-H high specification signal input.

Package Included:
- 1 x Set of DAC

Chinese Instructions:
https://pan.baidu.com/s/1bmiuaS9NSToTk3cVZWKFbA  Password: 6666

Plug-in Download Address:
http://pan.baidu.com/s/1kTtk9sb

System for Windows 7/8/10 needs to install a special driver (USB version), driver download address:
https://pan.baidu.com/s/1d6qvkdBa-tvD1Orwm1bVDw  Password: 0el3

Chinese version DSD package for FOOBAR2000:
http://pan.baidu.com/s/1bnwGCiF

Note:
- The machine pictured is a prototype, which is slightly different from the mass production model. The picture is for reference only and subject to the actual product. We reserve the right of final interpretation of this product.
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
