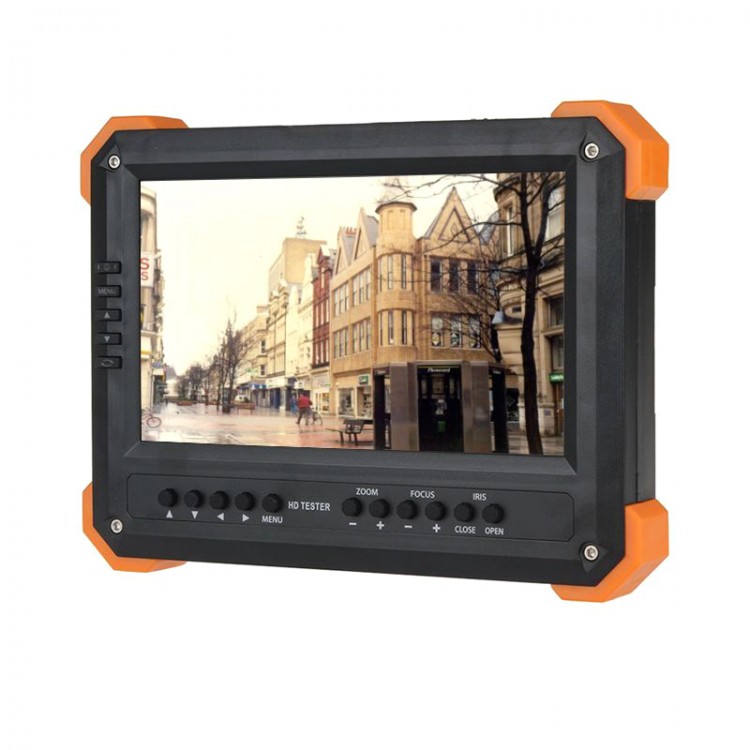

X41TAC V5.4 7" LCD HD-TVI 3.0 +AHD 2.0+CVI+HDMI+VGA+CVBS Camera Video Test Tester
The LTA-X41TAC-5M HD-AHD/TVI tester supports settings up to 1920x1080, 2MP HD Resolution, and up to 1080P@30fps making it the must have tester for both HD-TVI/AHD and analog cameras.The tester supports HD-AHD/TVI/CVI,CVBS/HDMI/VGA Input. Use it independently 12V/2A power adapter that has the ability to power up a camera even before installing
Camera pixel:400X
Main features:
HD-AHD 2.0 Tester -
Newest model supports 1080p HD-AHD 2.0 cameras(720P 25/30/50/60Hz;1080p 25/30Hz)
HD-TVI 3.0 Tester -
Newest model supports 1080p HD-TVI 3.0 cameras(720P 25/30/50/60Hz;1080p 25/30Hz,3MP,5MP)
HD-CVI 2.0 Tester-
Newest model supports 1080p HD-CVI 2.0 cameras(720P 25/30/50/60Hz;1080p 25/30Hz)
7 inch LCD monitor
HD-AHD,HD-TVI, HD-CVI,HDMI, VGA, analog CVBS 6-in-1 input
1920x1080P 2MP HD Resolution,Up to 1080P30fps
12V/2A Power Adapter for Camera Testing
Highly equipped, the most cost effective choice.
Equipped with 18650 battery, which has RoHS & CE certification. Device can work 7 hours after a single charge.
12V,2A Output function can be helpful when no external power supply for the camera.
Hikvision Coaxial control---- Press Menu key to call up TVI Camera or TVI dome camera's built-in menu
HDMI/VGA/CVBS Video test& HD-TVI Video Test Switch manually
PAL/NTSC Auto switch
Coaxial Control Protocol
HD-AHD/TVI/CVI/HDMI/VGA/CVBS Input
Built-in 18650 battery,12.6V
High capacity li-polymer battery, charge time 4 hours, and work time 6-7 hours.
DC12,2A power output
