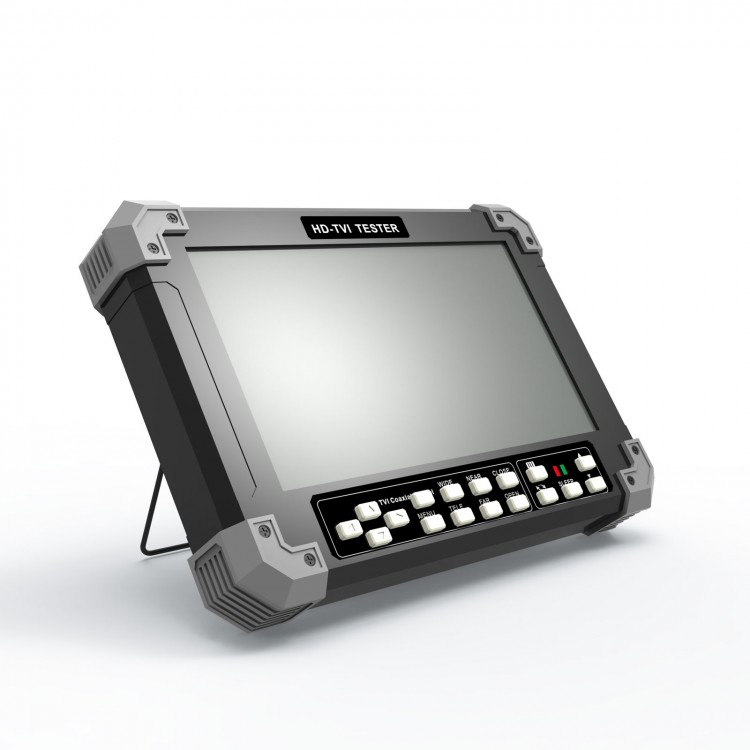

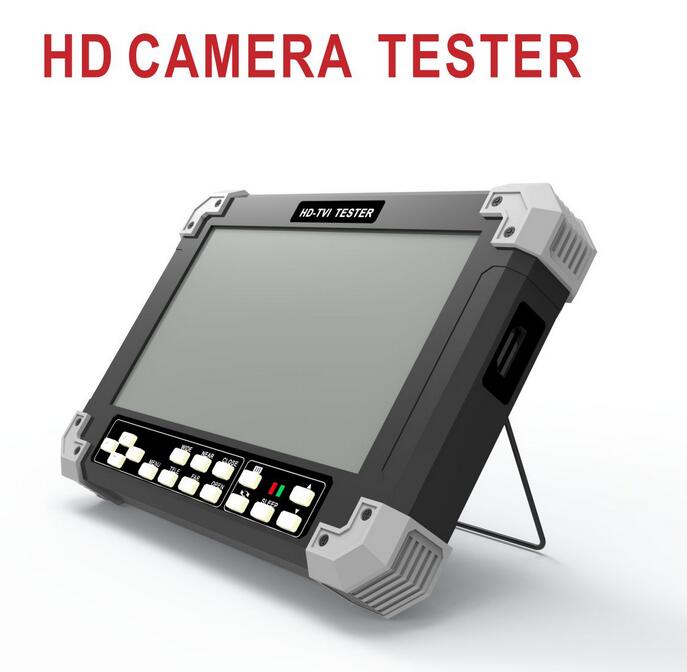

X42TAC V5.4 7" LCD AHD+TVI+CVI+CVBS+VGA+HDMI HD Camera Video Tester

X42TAC V5.4 7" LCD AHD+TVI+CVI+CVBS+VGA+HDMI HD Camera Video Tester

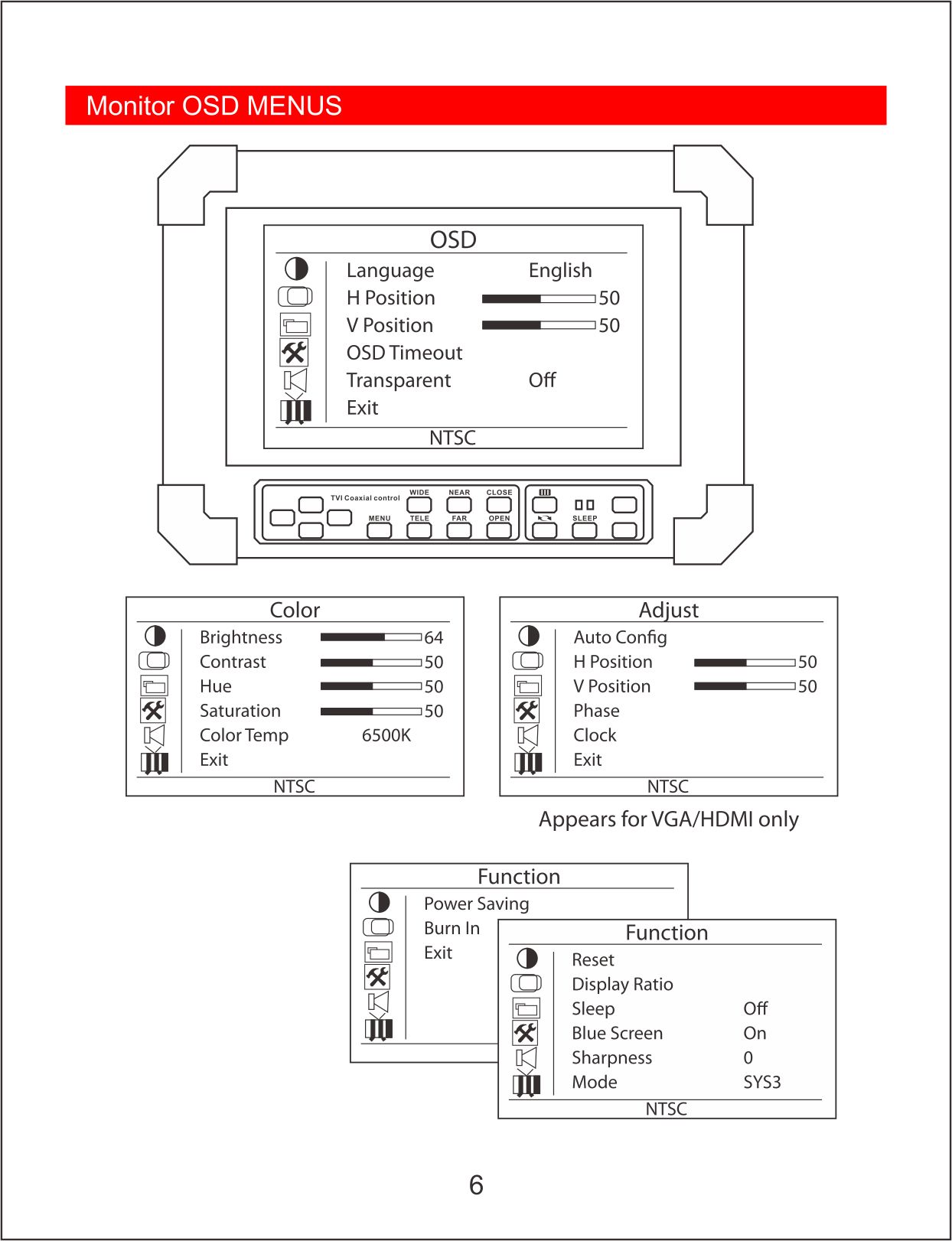

Product Description:7" screen,multi-language OSD manu,12V/0.8A output;4 pcs 18650 li-on battery;analog video /TVI3.0/AHD2.0/CVI2.0/VGA/HDMI input display;X42TAC V5.4 AHD+TVI+CVI+CVBS+VGA+HDMI
Camera pixel:500X

Main parts:
1.ABS shell
2. 7'' LCD screen 800*480
3.Battery 4pcs 18650,2200mAH/pcs,total 8800MA
Working 1 hour 1A current,not include 12V power consumption

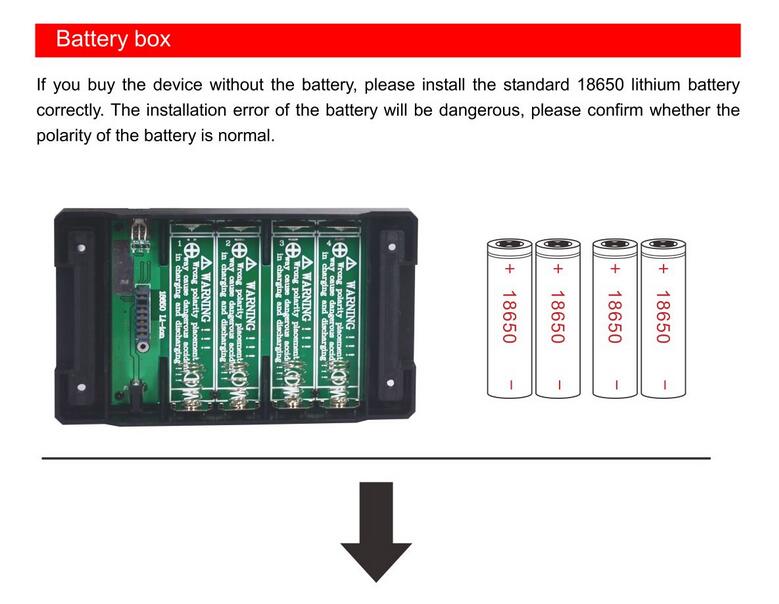

Battery protection with reverse connection protection function
The machine will not be damaged with wrong battery placement.
Analog HD receiver module

Input/output display:
1.TVI2.0 1280*720@25/30/50/60fps(720P 1.3MP)
1280*720@25/30fps(720P 1.3MP) V2.0
1920*1080@25/30fps(1080P 2MP)
TVI3.0 2048*1536@18 fps (3MP)
TVI4.0 2560*1944@12.5fps (NTSC/PAL) (5MP 黑白)
2.AHD2.0 1280*720@25/30fps(720P 1.3MP)
1920*1080@25/30fps(1080P 2MP)
AHD3.0 2048*1536@18fps(3MP)
2560*1440@15fps(4MP)
3.CVI2.0 1280*720@25/30/50/60 (720P 1.3MP)
1920*1080@25/30 (1080P 2MP)
4.Support analog CVBS signal PAL /NTSC

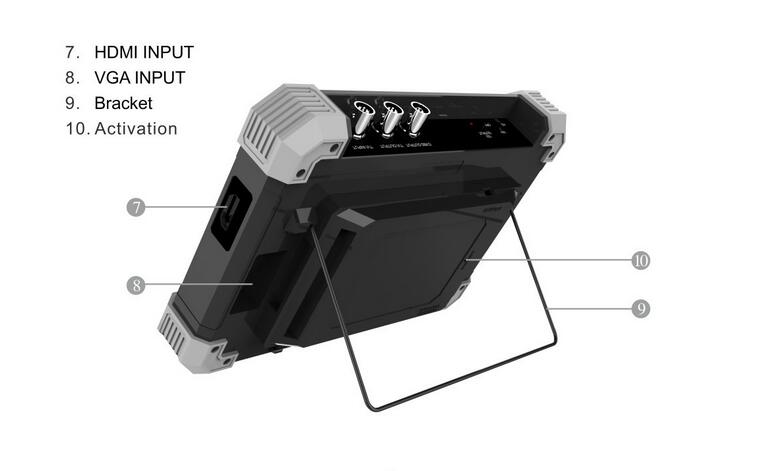

5.Support VGA /HDMI1.1 input the max support 1920*1080

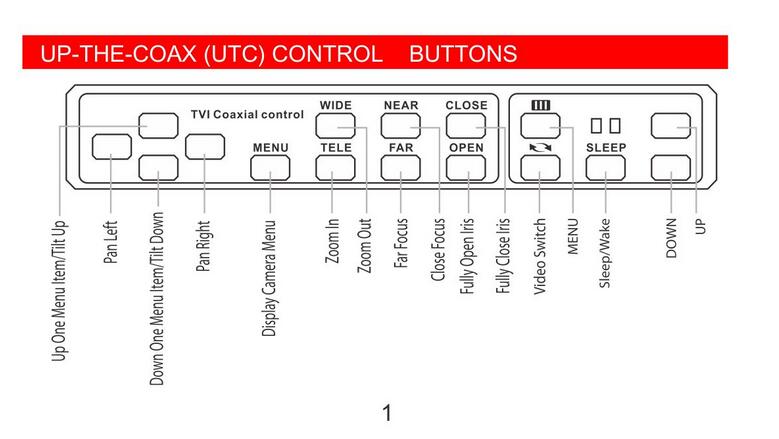

6.Support TVI dome coaxial sight control function,coaxial sight control protocol:HIKVISION-C
7.No video signal connect display color bar CVBS analog output,connect video display video signal synchronous analog CVBS video image signal output

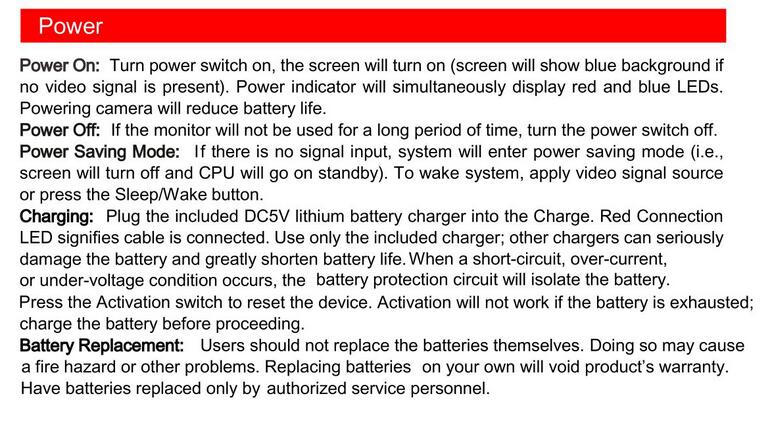

Charging & output:
1. Battery group the max voltage:4.2V,2pcs~4 pcs 18650 parallel connection.
2. DC-DC cable voltage 12V output,the max current 0.8A
3. 5V USB charger curent 0.8A,it will automatically stop charging with full-charged.Provide EURO orUS charger.

Power consumption:
- Boot TVI power consumption:4.2W
- Switch off TVI power consumption:2.5W
Main unit max size:204x144x43MM
Net weight:0.7 Kg
Gross weight:1.1kg

Parameter:
- 7'' TFT-LCD HD screen
- Shell material:ABS+PC
- Resolution:800x480

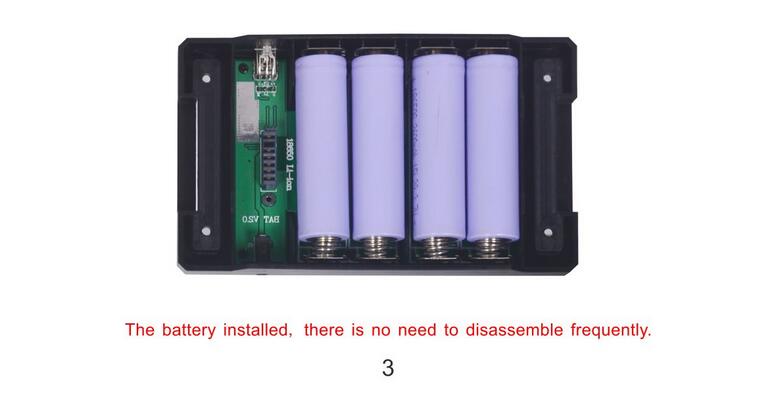

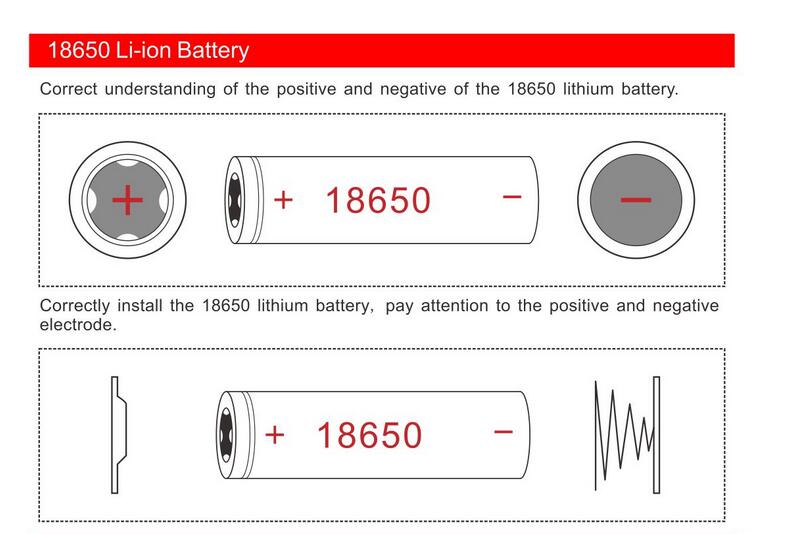

- Battery:18650 Li-ion battery 4pcs,demountable
- Charger:input 110V-230V AC,output 5V DC/1A
- Power Consumption:<=4.5W
- Video:TVI3.0/AHD2.0/CVBS/VGA/HAMI
- 12V output:12V DC,0.8A (maximum 9.6W)
- Size:205x145x48mm
X42TAC V5.4
TVI 720P@25/30/50/60:Yes
TVI 1080P@25/30:Yes
TVI 3MP@18:Yes
TVI 4MP@25/30:NC
TVI 5MP12.5/20:NC
AHD 720P@25/30:Yes
AHD 1080P@25/30:Yes
AHD 3MP@18:Yes
AHD 4MP@15:Yes
AHD 4MP@25/30:NC
AHD 5MP@20:NC
CVI 720P@25/30/50/60:Yes
CVI 1080P@25/30:Yes
CVI 4MP@25/30
CVBS analog video:Yes
VGA input:Yes
HDMI input:Yes
TVI coaxial sight control HIKVISION-C protocol::Yes
CVBS video colour bar output:Yes

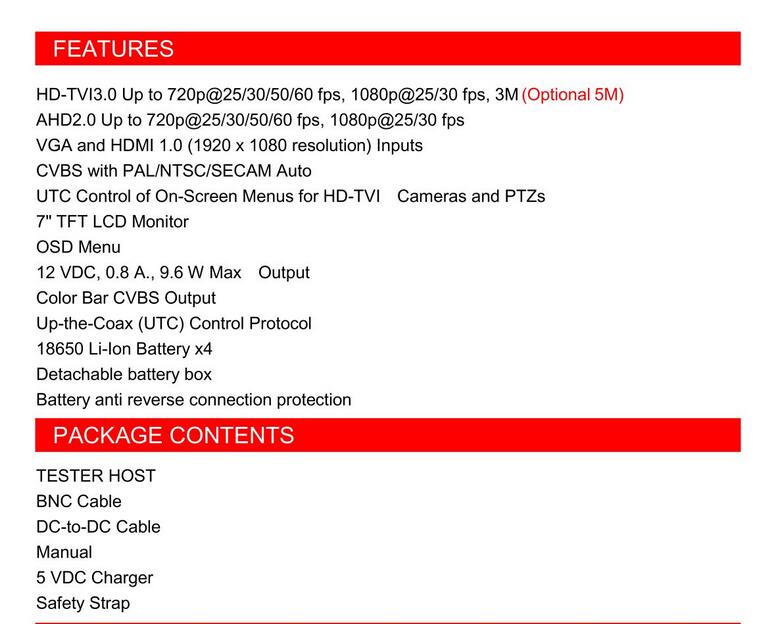

Package List:
- 1 x Main unit
- 1 x Charger
- 1 x DC cable
- 1 x BNC cable
- 1 x Instructions
