X42TAC V5.5 7" LCD CVBS+TVI+AHD+VGA+HDMI Camera Video Test Tester

X42TAC V5.5 7" LCD CVBS+TVI+AHD+VGA+HDMI Camera Video Test Tester

Main parts:
1.ABS shell
2. 7'' LCD screen 800*480

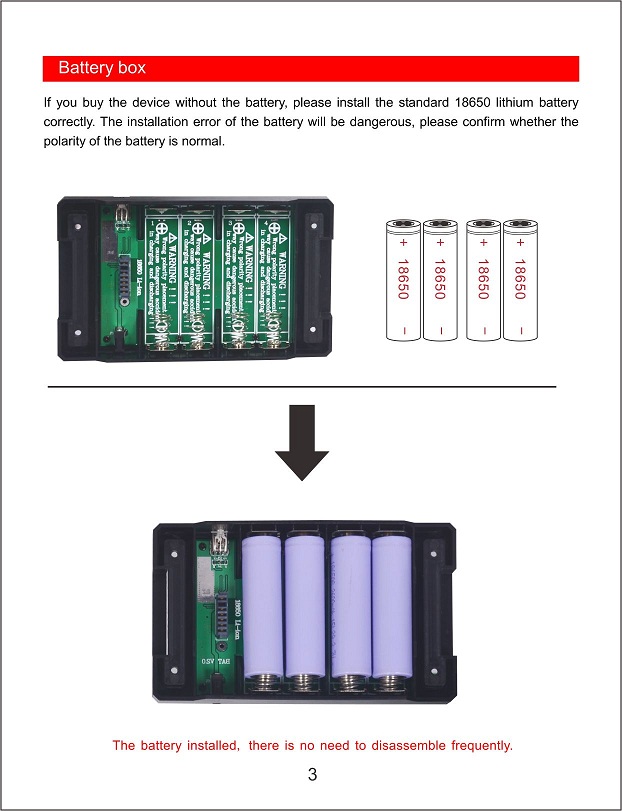

3.Battery 4pcs 18650,2200mAH/pcs,total 8800MA
Working 1 hour 1A current,not include 12V power consumption
battery protection with reverse connection protection function
The machine will not be damaged with wrong battery placement.
Analog HD receiver module

Camera pixel:500X

Input/output display:
1.TVI2.0
1280*720@25/30/50/60fps(720P 1.3MP)
1280*720@25/30fps(720P 1.3MP) V2.0
1920*1080@25/30fps(1080P 2MP)
TVI3.0
2048*1536@18 fps (3MP)
TVI4.0
2560*1440@25/30fps (4MP) (V5.4 not support)
2560*1944@20fps (5MP) (V5.4 not support)
2560*1944@12.5fps (NTSC/PAL) (5MP)
2.AHD2.0
1280*720@25/30fps(720P 1.3MP)
1920*1080@25/30fps(1080P 2MP)
AHD3.0
2048*1536@18fps(3MP)
2560*1440@15fps(4MP)

Haikang AHD format:
2560*1440@25/30fps(4MP)  (V5.4 not support)
2560*1944@20fps(NTSC/PAL)(5MP) (V5.4 not support)
3.CVI2.0
1280*720@25/30/50/60 (720P 1.3MP)
1920*1080@25/30 (1080P 2MP)
4.Analog CVBS signal PAL /NTSC
5.Analog clour bar output

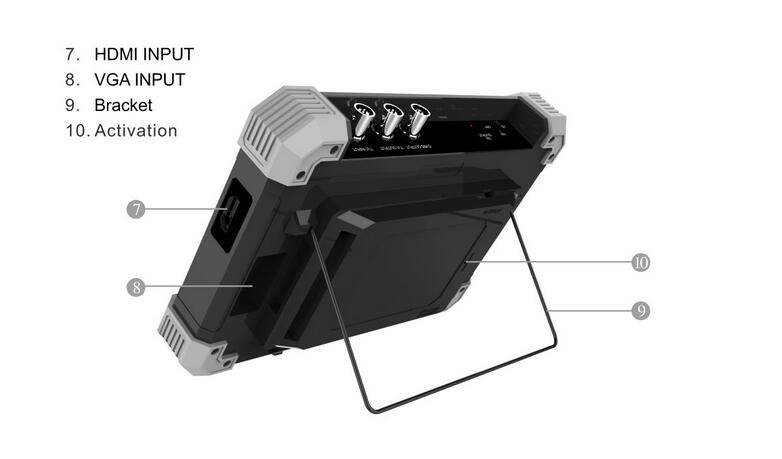

6.Support VGA /HDMI1.1 input,the max support 1920x1080

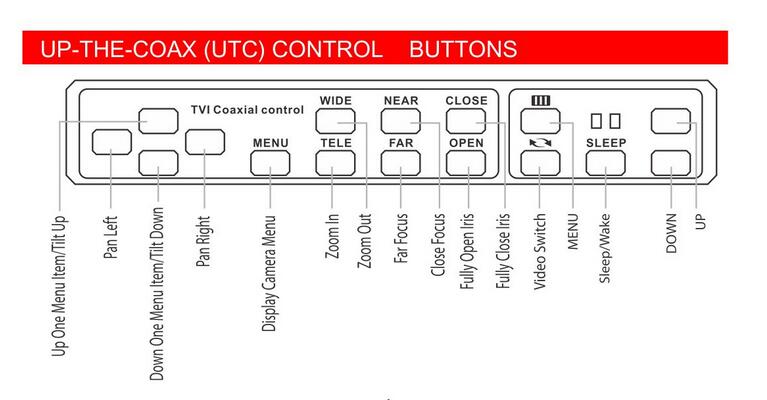

7.Support TVI dome coaxial sight control function,coaxial sight control protocol:HIKVISION-C
8.No video signal connect display color bar CVBS analog output,connect video display video signal synchronous analog CVBS video image signal output

Charging & output:

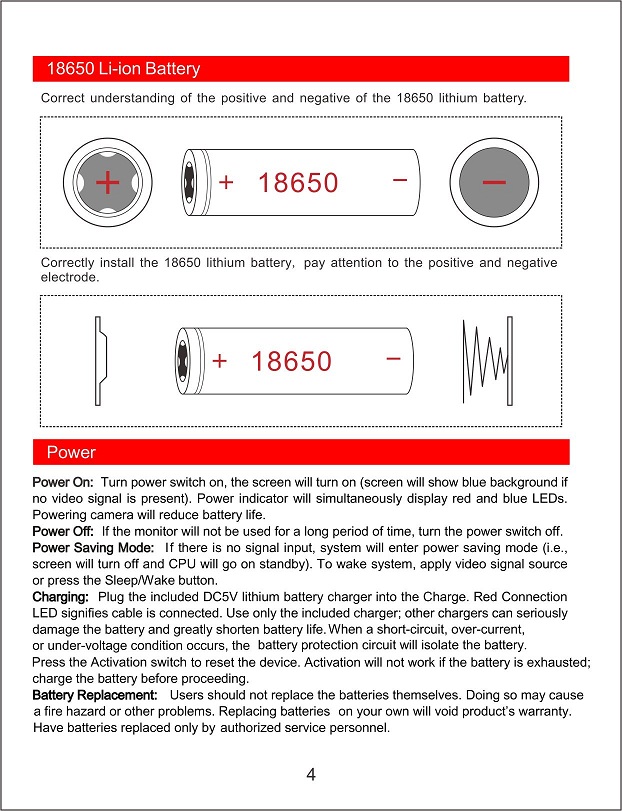

1. Battery group the max voltage:4.2V,2pcs~4 pcs 18650 parallel connection.

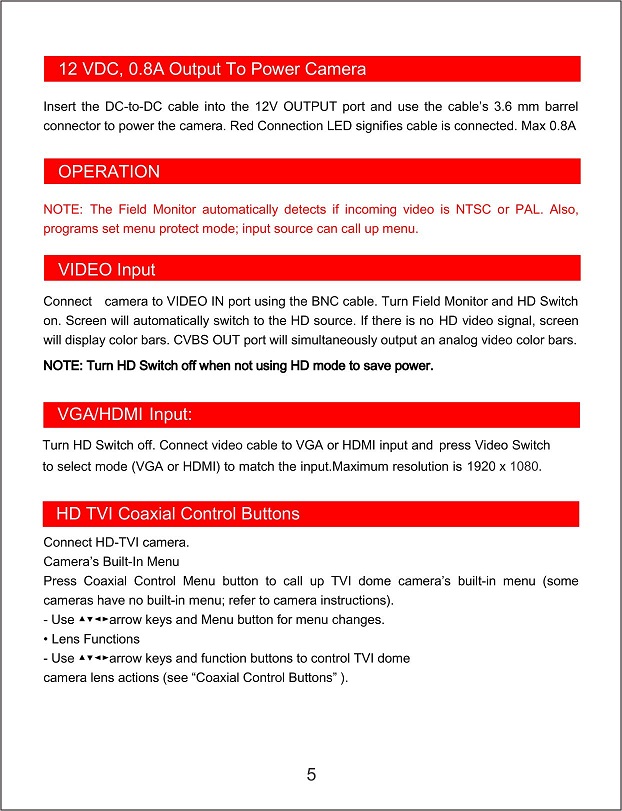

2. DC-DC cable voltage 12V output,the max current 0.8A。
3. 5V USB charger curent 0.8A,it will automatically stop charging with full-charged.Provide EURO orUS charger.

Power consumption:
Boot TVI power consumption:4.2W
Switch off TVI power consumption:2.5W

Main unit max size:204x144x43MM
Net weight:0.7 Kg
Gross weight:1.1kg

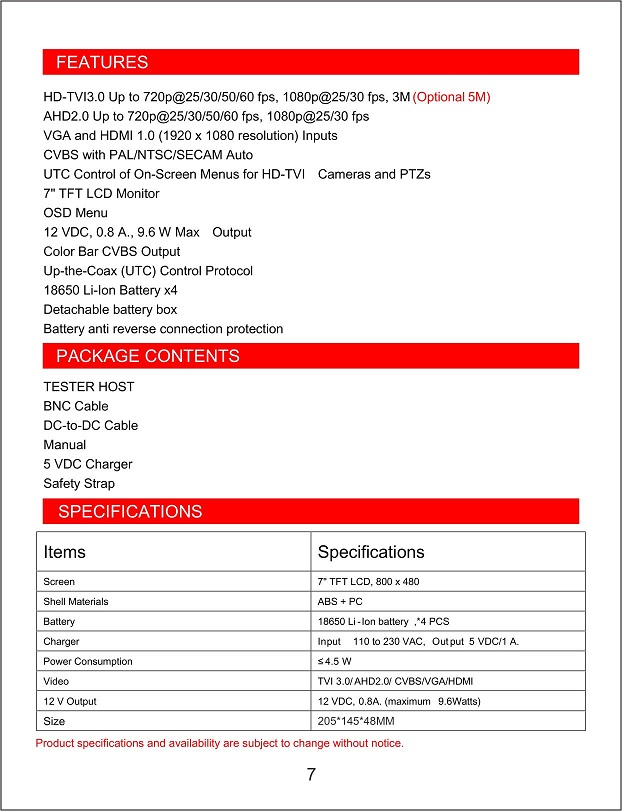

Parameter:
- 7'' TFT-LCD HD screen
- Resolution:800x480

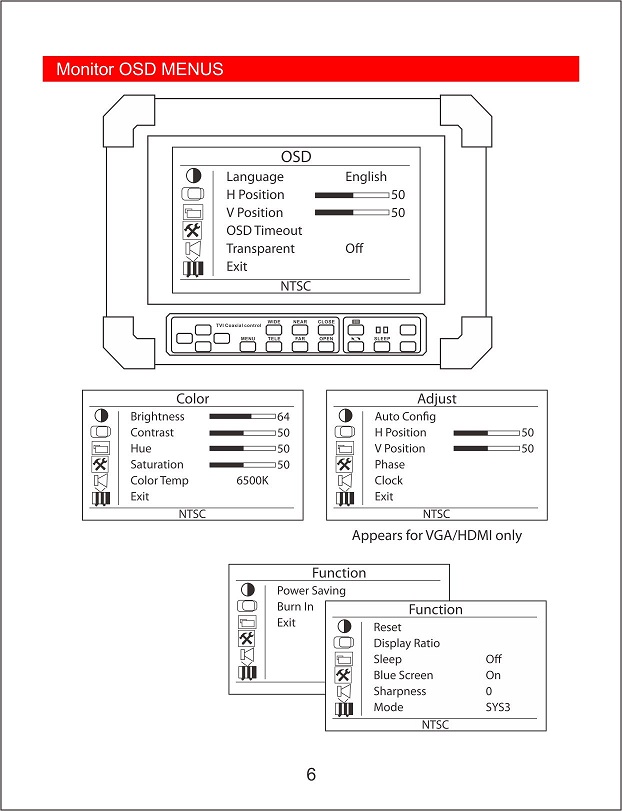

- Multi-language OSD menu
- Display screen brightness/contrast brightness/color saturation adjustable
- 12V/0.8A output
- 4.2V 4pcs 18650 lithium battery 8800mAH,detachable reverse connection function
- Analog video/TVI4.0/AHD3.0/CVI2.0/VGA/HDMI input display.
- Analog video color bar output
- Support coaxial sight control function.
-TVI 720P@25/30/50/60,1080P25/30,3MP@18,4MP@15/25/30,5MP@20.CVI.720P25/30/50/60,1080P25/30.
- Support mode test display.

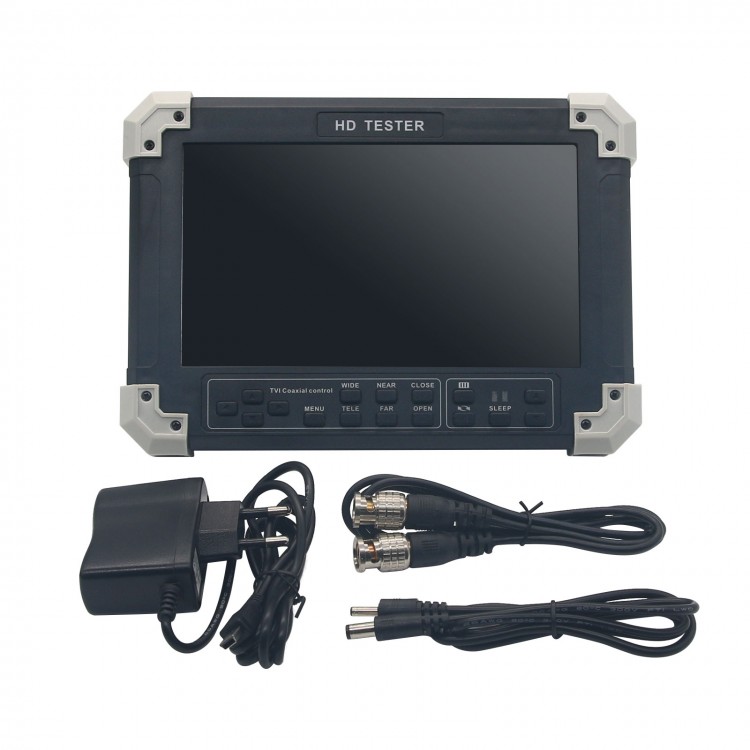

Package List:
- 1 x Main unit
- 1 x Charger
- 1 x DC cable
- 1 x BNC cable
- 1 x Instructions
