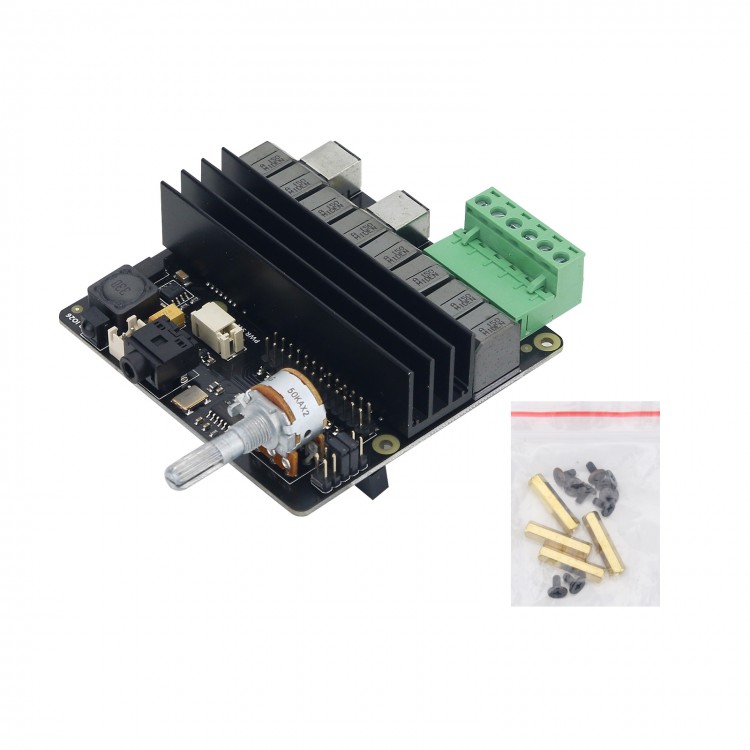

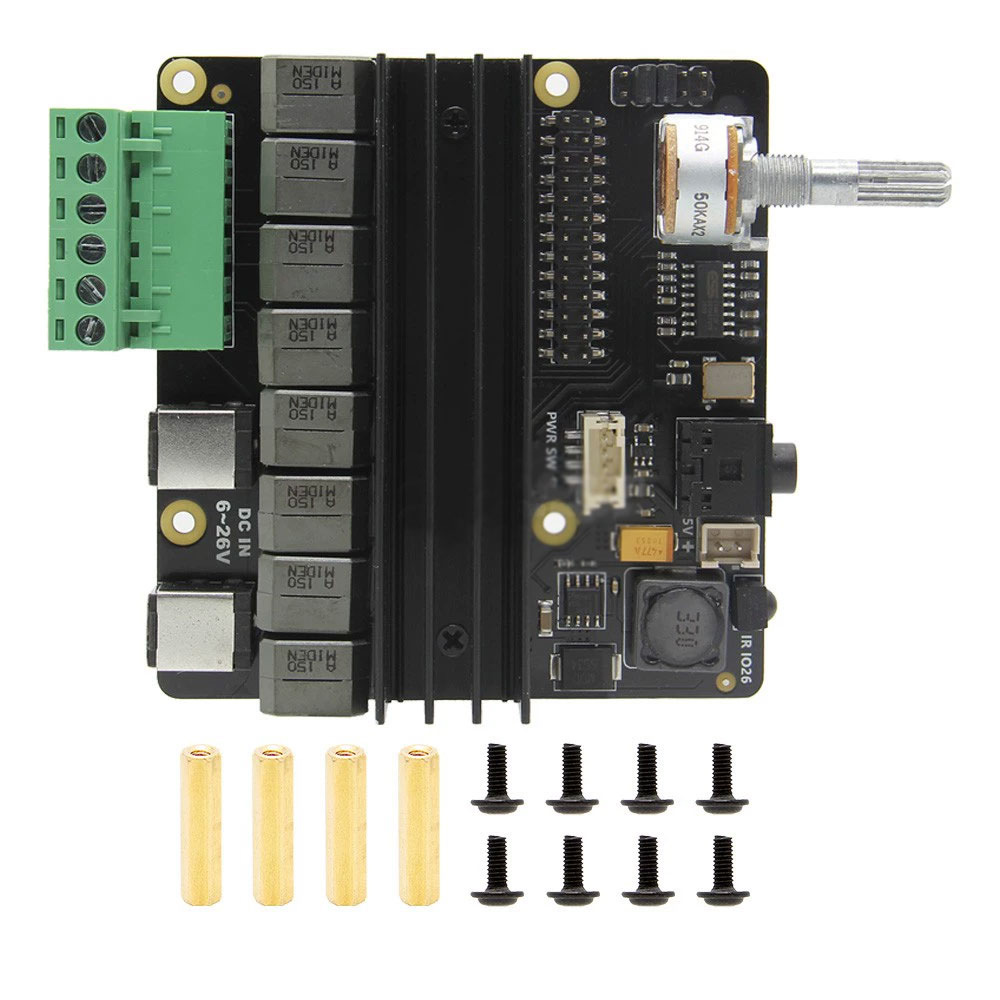

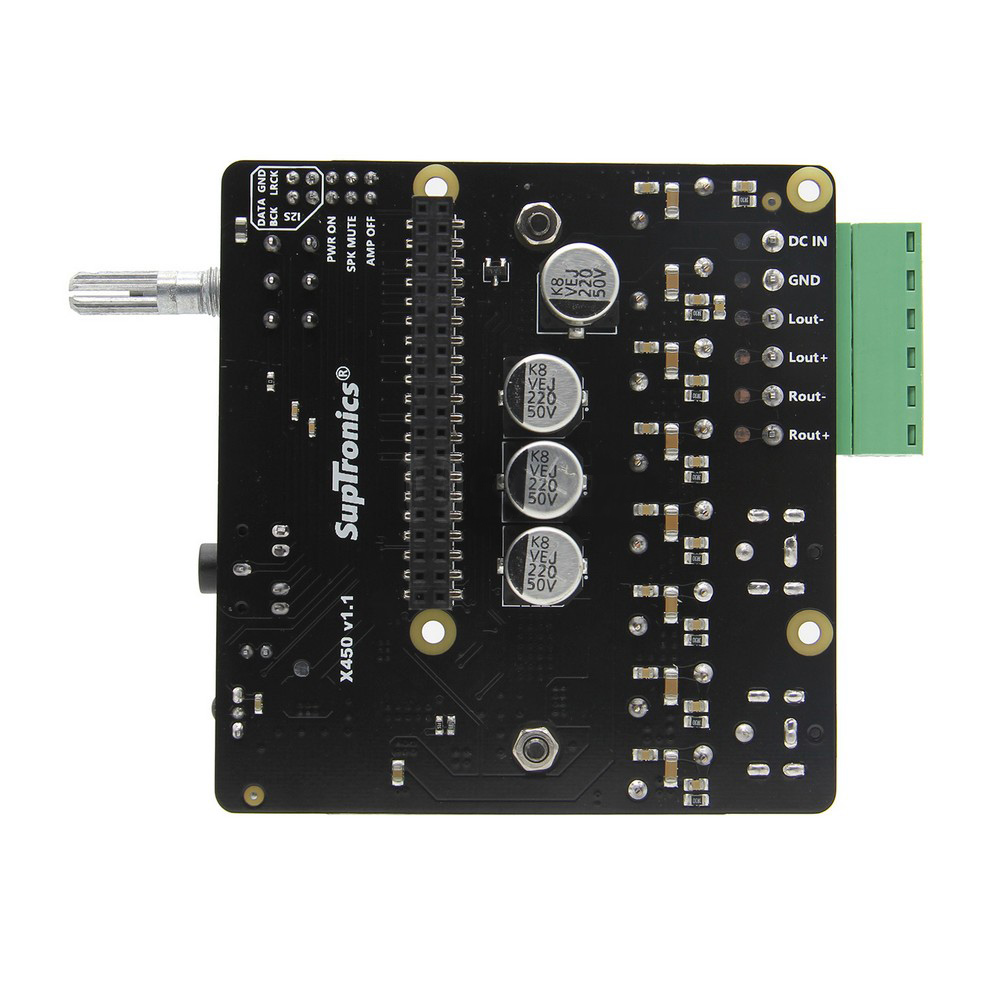

X450 HiFi DAC + AMP Audio Expansion Board HD Music Player for Raspberry Pi 4B/3B/3B+/2B/B/B+
Description:
- This is the new released DAC+AMP Expansion Board, which is compatible with Raspberry Pi 4 Model B / 3 Model B+ Plus / 3B / 2B / B+
- Operation system: for OSMC/ for Openelec/for Raspbian Jessie/for Volumio/for Pi Core Player
User manual:
- Details: wiki.geekworm.com/X450
- Hardware function description: suptronics.com/miniPCkits/x450-hardware.html
- Software function description: wiki.geekworm.com/X450/X5500_Software_Configuration

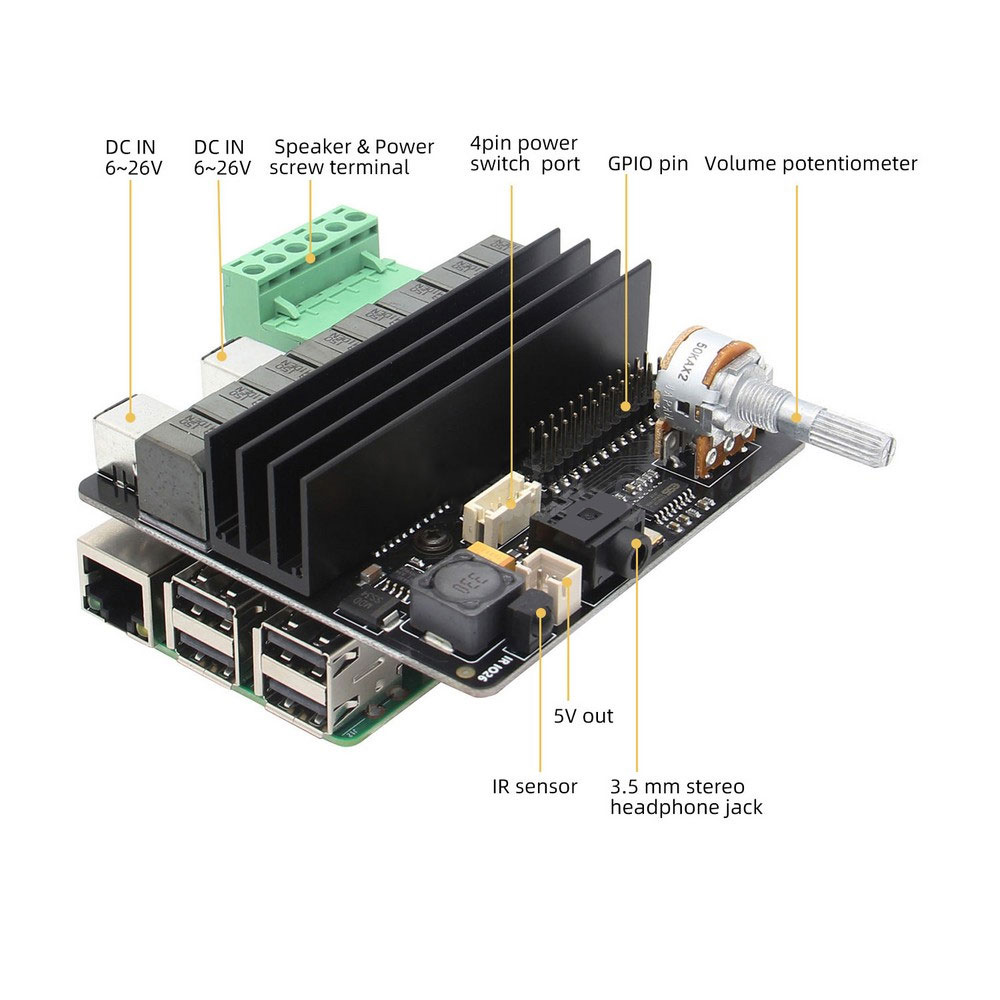

Features:
- Uses high efficiency step-Down DC converter for Texas Instruments (up to 95%)
- 6V ~ 26VDC converted to 5.1V, 3A to power for Raspberry Pi
- Uses the genuine ALPS RK163 series potentiometer for smooth volume adjustment
- Built in high quality IR sensor
- Onboard 3.5mm stereo headphone jack allowing audio input from other audio devices
- Onboard pluggable speaker & power screw terminals
- Onboard PH2.0 connector allowing to connect a lighted power switch
- Onboard XH2.54 connector providing 5V output to power other devices
- Onboard gold-plated high-current DC power jack (5.5 x 2.5mm)
- Connects directly to the Raspberry Pi - no wiring required - no additional power supply

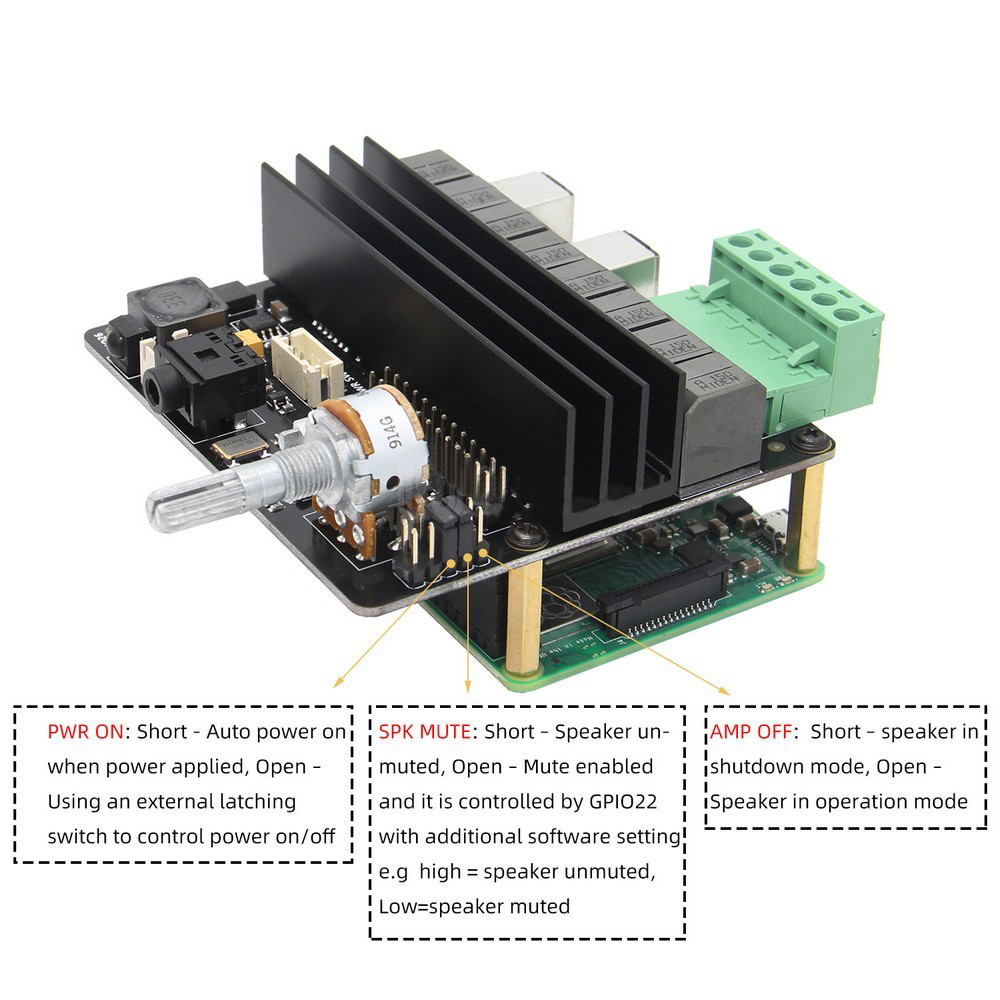

- AMP can be enabled / disabled with jumper link heat-sink attached to amplifiers for perfect heat dissipation
Power supply description:
- Onboard DC power plug (5.5 x 2.5mm)
- 6 ~ 26VDC, ≥3A power adapter is recommended.
Cation:
- Please do not power it through the board for Raspberry Pi.
Package Included:
- 1 x X450 Expansion Board
Note:
- The main board for Raspberry Pi is not included.
