X5 Effect Processor Karaoke Effector KTV Home Karaoke Professional Digital Audio Processor Reverb

X5 Effect Processor Karaoke Effector KTV Home Karaoke Professional Digital Audio Processor Reverb

Features:
◆Karaoke effector with speaker processor function, functions can be adjusted independently
◆Using 2Bit data bus and 32Bit DSP
◆Music is equipped with 7-segment parameter equalization. Music to the main output high-pass filter: 12dB/24dB (0Hz-303Hz)
◆Microphone is equipped with 15-segment parameter equalization. With microphone compression function
◆The main output is equipped with 5-segment parameter equalization. Compression limiter
◆Middle output, rear output and ultra-low are all equipped with 3-stage parameter equalization
◆Microphone has 4 feedback suppression modes: OFF, 1, 2 and 3
◆Can store 16 modes
◆Microphone output, main output, center output, subwoofer output, rear output are all equipped with pressure limit and delay function
◆There are manager mode and user mode inside, and the user mode cannot be stored after adjusting the parameters
◆This machine is equipped with a full-function menu, which can be set through a powerful PC interface

Technical Parameters:
Music:
◆Music parameter balance: 7 band
◆Music to the main output high-pass filter: 12dB/24dB (0Hz-303Hz)

Microphone:
◆Four microphone FBE modes: OFF, 1, 2 and 3
◆With microphone compression function
◆Microphone parameter equalization: 15 band

Echo Effect:
◆Echo low-pass filter: 5.99Hz-20.6KHz
◆Echo high-pass filter: 0Hz-1000Hz
◆Echo parameter equalization: 3 band
◆Echo level: 0~100%
◆Echo direct sound level: 0~100%
◆Echo pre-delay: 0~500ms
◆Echo right channel pre-delay: 0~±50% (relative to left channel)

Reverberation:
◆Adjustable range of reverberation low-pass filter: 5.99Hz-20.6KHz
◆Adjustable range of reverberation high-pass filter: 0Hz-1000Hz
◆Adjustable range of reverberation level: 0~100%
◆Adjustable range of direct reverberation: 0~100%

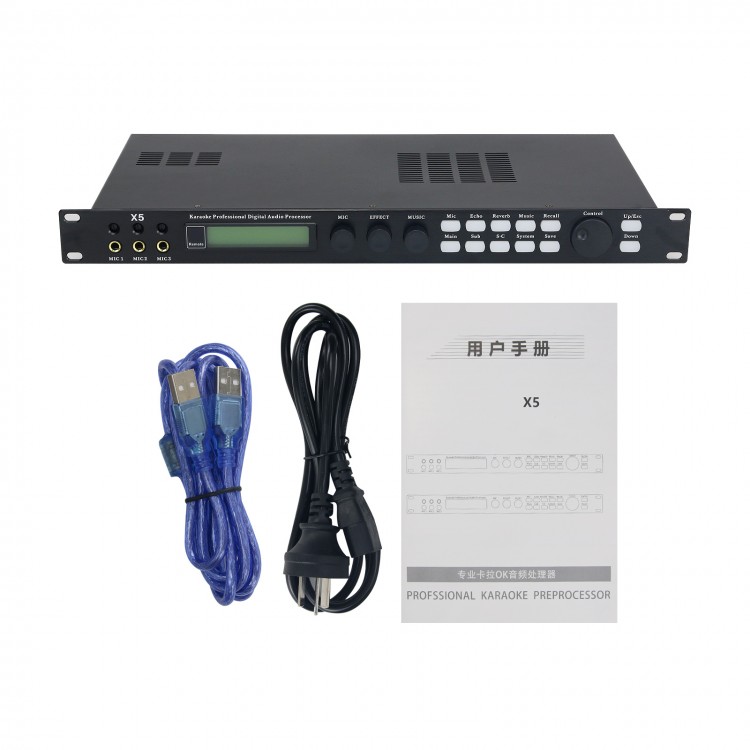

Package Included:
◆1 x Set of Effect Processor
