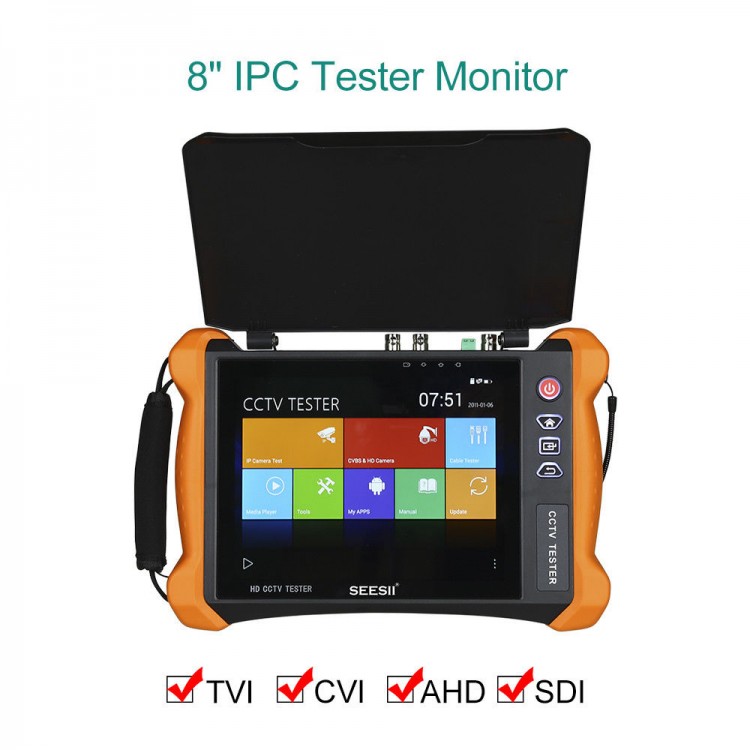

X9-ADHS 4K CCTV Tester Network + Analog + Cable Finder + HDMI Input Output + 8MP (AHD+CVI+TVI+SDI)

X9-ADHS 4K CCTV Tester Network + Analog + Cable Finder + HDMI Input Output + 8MP (AHD+CVI+TVI+SDI)

Version Introduction:
· X9-ADH: Network + Analog + Cable Finder + HDMI Input Output + 8MP (AHD+CVI+TVI)
· X9-ADHS: Network + Analog + Cable Finder + HDMI Input Output + 8MP (AHD+CVI+TVI+SDI)
· X9-MOVTADHS: Network + Analog + Cable Finder + HDMI Input Output + 8MP (AHD+CVI+TVI+SDI) + Multimeter + Optical Power Meter + Red Light Source + TDR Cable Breakpoint Test

Features:
- Specially developed for H.265/4K HD cameras
- Comprehensive tester for network video surveillance
- H.265/H.264 encoding camera test
- 8MP (AHD+CVI+TVI)
- Take into account the simulation, coaxial HD 4.0 spherical monitoring and camera testing
- Two display windows on one screen: Simultaneous testing of network cameras and analog cameras, CVBS input small window and TV OUT small window can be opened; Enables quick tests in any function interface.
- Upgraded version of ONVIF generates camera test reports with one click, including camera IP address, resolution, encoding and other information. Support cross-segment testing. Support audio and video synchronization test. Activate camera for Hikvision and modify IP and more functions with one click.

Functions:
- System for Android + Smart Interface: 8-inch 2048x1536 IPS full-view 2K capacitive touch screen, using a new system, the test screen is clearer and smoother.
- WIFI: Built-in wireless WIFI network function, can test wireless network camera. Support to create WIFI hotspot, accept WIFI network camera image (ONVIF or customized camera) or network data, etc.
- H.264, 4K Main Stream Test: A test tool specially developed for the installation and maintenance of H.265 and 4K HD network cameras. H.265/H.264 coded camera, the mainstream code test image has high resolution. With the new system, test picture is clearer and smoother. It also takes into account the simulation, coaxial HD 4.0 surveillance dome and camera testing.
- Image Display Enlargement: Video image zoom. Users can enlarge video image by 1-4 times to view local details. Support analog camera, network camera image enlargement.
- Video Screenshot: While video testing and PTZ debugging, there is no need to switch the screen, you can take a screenshot of video at any time, and store it in the SD card of the device to facilitate construction work on site.
- Video Recording: At the same time of debugging, video can be recorded at any time and saved in SD card, which is convenient for recording the scene. The resolution of  video recorded by the device is the same as the resolution of your camera. But when viewed on our device, it can only be displayed at the current resolution of the device.
- Record Playback: The meter stores the video license picture and video files in the SD card, and establishes different storage file directories on different dates. Users can call to view files in different periods.
- PTZ Control: Video surveillance tester has built-in more than twenty kinds of PTZ control protocols. Support for Pelco-D/P, Samsung, Panasonic. Through its own RS485 or RS232 interface, users can control up, down, left, and right movement of gimbal, as well as adjust the zoom, focus, and aperture of all-in-one. The video monitoring tester supports the adjustment of horizontal rotation speed and vertical rotation speed; as well as the function of preset position setting and preset position recall, which can call the menu of the fast ball and edit various parameters of spherical camera.
- Network Bandwidth Test: The meter can test the bandwidth of network channel. You need to use two instruments, one as the sender and the other as the receiver to test the bandwidth of network channel. You can also install test software on PC to cooperate with the instrument to test network channel bandwidth.
- Test for PING: PING is a conventional tool in network debugging, used to test whether Ethernet port of an IP camera or other network equipment is working properly and IP address is correct.
- Extreme ONVIF: Support lens simulation, lens focus test, and generate test report. Supports automatic login and playback of network camera images. Support one-click activation of camera for Hikvision and modification of IP. Support cracking camera password.
- IP Discovery: The enhanced version of IP discovery is faster and more accurate. Find camera IP address in the entire network segment, and intelligently modify local IP of the instrument to make it the same network segment as the discovered camera IP, without manually modifying the instrument IP.
- Audio Test: It can test the audio equipment such as the pickup of the front end of video monitoring.
-TVI/CVI/AHD/SDI Coaxial High-definition Camera Test: Test simulated special mode camera, corresponding to different modes.

Specifications:
- Display: 8-inch 2K high-definition touch screen + brand new system, resolution 2048*1532
- Network Port: 10/100M/1000M adaptive, RJ45
- WIFI: built-in wireless WIFI, rate 150M, receiving wireless network camera images, etc.
- IP Camera Test: For ONVIF (with PTZ control), ACTi, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, TD-NC9200S2, IPC 120L, HICC-2300T, IP5000-BC-13MP/ IRS06-13MP, Finetida IPC, Kumkang8900, BY-1080Q, WEISKY IPC and more than 80 brand cameras customizable.
- IP Discovery: Find IP address of camera in the entire network segment
- Speed ONVIF: Automatically log in to play images, activate camera for Hikvision and modify IP and other parameters with one click, generate test reports, etc.
- Test Tool for Hikvision: One-click camera activation and image test. Parameters such as user name, password and IP can be modified.
- Test Tool for Dahua: Camera image test. Parameters such as user name, password and IP can be modified.
- Video Signal Test: 1 HD-SDI/EX-SDI IN BNC input. Resolution support 720p 25/30/50/60fps, 1080p 25/30/50/60fps, 1080i 50/60fps
- Video shooting, video recording, photo browsing, and video playback: Take screenshots and videos of test screen, and support operations like video browsing and video playback.
- DC 12V Power Supply Output: Output 12V maximum DC current of about 3A, providing temporary working power for camera
- Audio Test: Input an audio signal to test whether the sound is normal, and record and save. Used to connect headphones.
- PTZ Control Test: Support RS485 bus, speed 600-115200bps. Support for Pelco-D/P, Samsung, Panasonic, Lilin, Yaan and more than 30 kinds of protocols
- Protocol Code Catching: Built-in serial port tool, can receive and display RS485 protocol code data sent by control device, and can also send hexadecimal code.
- Network Test Function: Test any two or more network cables, connection sequence and network cable number are displayed on the screen.
- H.265 Main Code Stream Test: Hardware decoding, support H.265 main code test camera image, the highest resolution is 4K.
- External Power Supply: DC12V (2A)
- Charging time: 5-6 hours
- Operation Settings: capacitive touch screen, Chinese and English OSD menu, optional
- Automatic Standby: off/5-30 minutes
- Working temperature: -10℃ to 50℃
- Working Humidity: 30%-90%
- Dimensions: 264 x 182 x 43mm

Package Included:
- 1 x Set of CCTV Tester
