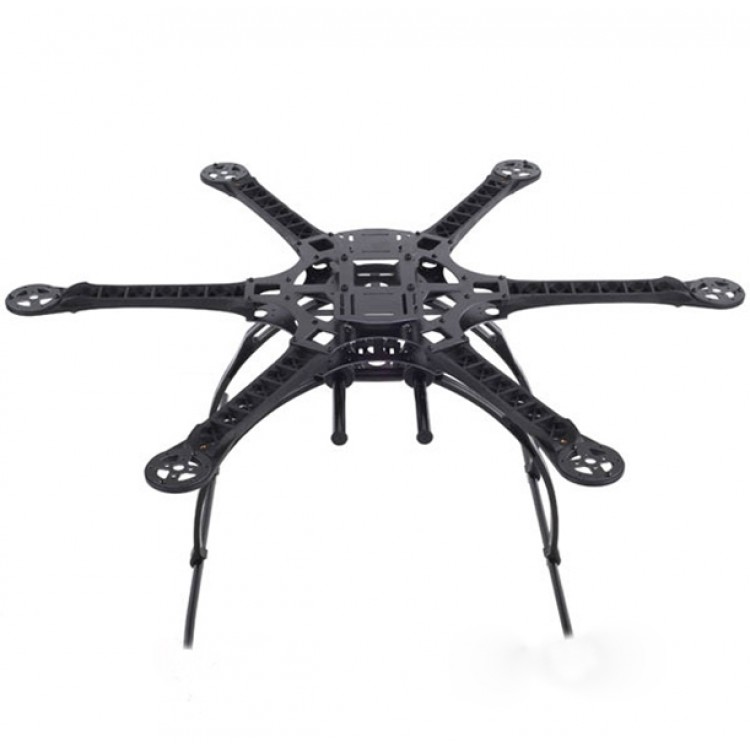

XAircraft DIY Hexa GF Glass Fiber Frame Special Kit Combo w/ Motor ESC Propeller
Features:
- Xaircraft Hexa glass fiber frame.
- It needs simple assemble according to manual.
- Most parts also work to x450P's.
- Xaircraft Hexa Frame glass fiber plus plastic version special combo
NOTE:
This E3007 Brushless ESC only works with XAircraft FC1212 Standard Flight Controller.
If connect with other flight controller,upon power up in close throttle, the motor will fire up.
Get XAircraft FC1212 Standard Flight Controller.
Package included:
- 1 x XAircraft Hexa Frame glass fiber frame kit
- 6 x Motor
- 6 x 10A ESC
- 6 x 10x4.5 inch main propeller
Parts List:
Product NO. | Part Name | Qty |
F6001 | Haxa Fuselage Upper Plate | 1 |
F6002 | Haxa Fuselage Lower Plate | 1 |
F3005 | Battery Mounting Plate | 1 |
L1010 | Fastener | 2 |
F3006 | Motor Mounting Plate | 6 |
F4004 | Device Mounting Plate | 1 |
F4005 | Frame Arm | 6 |
F4006 | X450 Pro Landing Gear | 6 |
L3005 | X650 Value Landing Gear | 2 |
L3001 | Landing Gear Skid Pipe | 2 |
L3002 | Load Mounting Pipe(with Cork) | 2 |
L3010 | Load Hanger | 2 |
L3003 | Load Mounting Pipe Mount | 4 |
L3004 | Load Mounting Pipe Fixer | 4 |
F4007 | Heading Ball | 1 |
F4008 | Heading Ball Rod | 1 |
M6001 | M2.5×6 Socket Screw | 66 |
M6002 | M3×6 Socket Screw | 16 |
M4003 | M3×8 Nylon Screw | 4 |
M4005 | M3 Nylon Nut | 4 |
M4004 | M3×12 Nylon Pillar | 12 |
Steel Screw Pack | 1 | |
Nylon Screw Pack | 1 | |
Motor | 6 | |
10A ESC | 6 | |
10x4.5 inches Main Propeller | 6 |
