xb09 Lossless Bluetooth 5.0 Receiver Board + Remote Control For U Disk TF Card Bluetooth AUX Inputs

xb09 Lossless Bluetooth 5.0 Receiver Board + Remote Control For U Disk TF Card Bluetooth AUX Inputs

Features:
- Imported chip V5.0.
- Chinese voice.
- Lossless sound quality, dual channel, stereo.
- Audio source input methods: 1. Bluetooth receiver. 2. USB decoding and playing. 3. TF card decoding and playing. 4. 3.5mm headphone jack audio input.
- Support playing formats: MP3, WMA, WAV, FLAC lossless decoding.
- Power supply: DC 5V (Can be powered via mobile phone charger, power bank, computer USB port.)
- Output mode: 3.5 headphone jack preamp output (As audio input when it connects a power amp. Can be used to directly drive headphones).
- Shell materials: metal aluminum anode black + ABS plastic black frame.
- Comes with a remote controller.

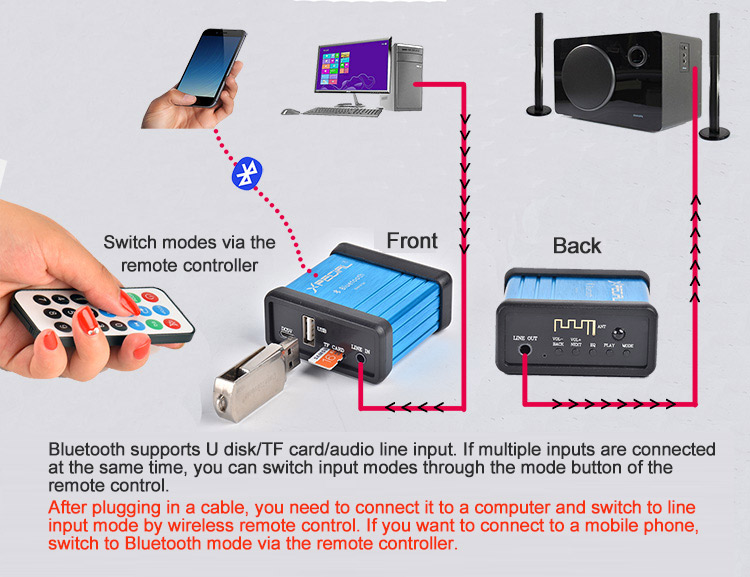

- Supports Bluetooth mode, music mode (USB mode & TF card mode), wireless remote control, and AUX audio mode.
- Brand new Bluetooth 5.0 chip.
- Support playing via U disk, TF card.
- Support AUX 3.5MM input, external audio input.
- Compatible with cellphone Bluetooth, 3.5mm sound box, AUX audio interface car sound box, conventional power amp, etc.
- 15m stable transmission distance without obstacle.
- High-fidelity lossless sound quality: Built-in high-resolution decoding chip to restore high-fidelity original sound quality.
- Thanks to Bluetooth wireless transmission technology, stable wireless transmission helps you enjoy music indoors and outdoors.
- Plug to play. Support playing FLAC, WMA, WAV, MP3 lossless formats in U disk and TF card.
- Automatic Bluetooth paring. Once it is successfully connected, it will be memorized automatically. No paring is needed for next time connection.

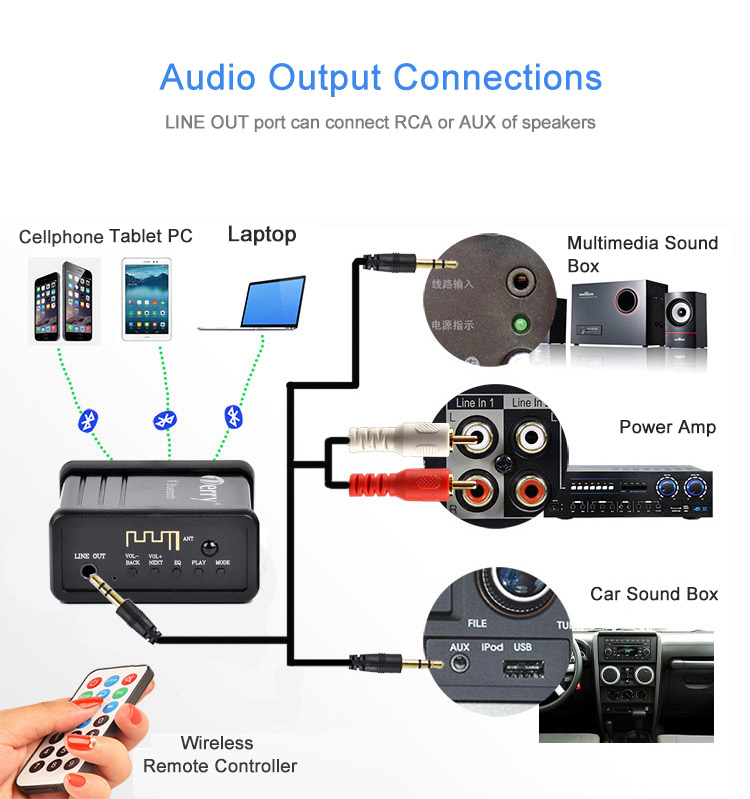

- Turn your car speaker into a Bluetooth sound box. Audio output AUX port connects to car AUX.
- Premium components: For USB U disk playing. For TF card playing. For AUX audio input. Imported filter. IR remote control receiver. Solid state audio capacitors. Upgraded Bluetooth 5.0 chip. With LINE OUT audio output port.
- Alloy shell for better touch feeling.

Interfaces on Front Panel:
- ANT: Bluetooth antenna
- LINE OUT: Audio output
- With indicator
- VOL- BACK: Volume -/Previous song
- VOL+ NEXT: Volume +/Next song
- EQ: Sound effect button
- PLAY: Play/Pause button
- MODE: IR remote control receiver

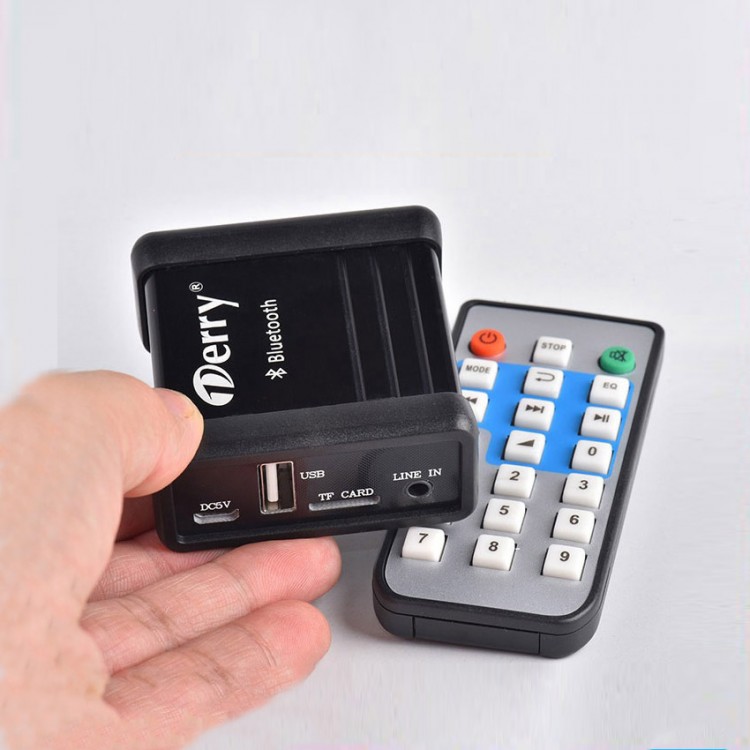

Interfaces on Rear Panel:
- DC5V: For Android DC5V power supply
- USB: For U disk to play
- TF CARD: Slot for TF card
- LINE IN: External audio input port

Package Included:
- 1 x Bluetooth 5.0 Receiver
- 1 x Remote Controller

Note: TF card, U disk and other items pictured are not included, for demonstration purposes only.
