Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $57.87 | $56.69 | $54.92 | $52.55 | Contact US |

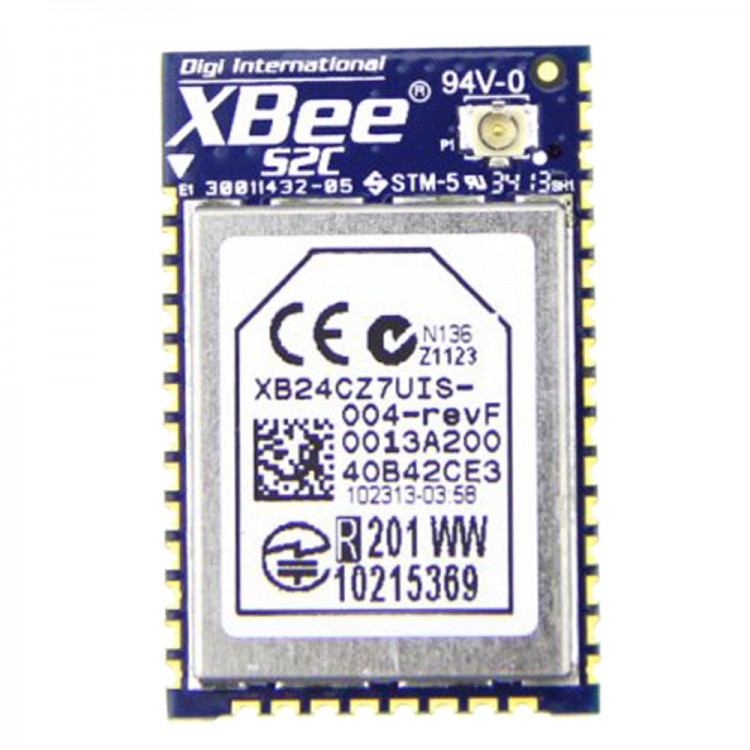

Xbee ZigBee SMT 250kbps 1200m 2.4GHz 16CH RF Module w/ U.Fl Antenna Conn
Description:
XBee ZB embedded SMT RF modules provide cost-effective wireless connectivity to end-point devices in ZigBee mesh networks. They require no configuration or additional development; users can have their network up and running in a matter of minutes. Programmable versions of the SMT module make customizing ZigBee application easy, even without wireless design expertise. Features like binding and multicasting also allow for simple integration into a Home Automation device.
Features:
- Interoperability with ZigBee devices from other vendors
- Firmware upgrades via UART, SPI or over the air
- Supports binding and multicasting, for easy integration into a Home Automation platform
- SMT form factor with side Castellations for easy soldering
- Programmable ZigBee SMT available
Specification:
- Data Rate: RF 250 Kbps, Serial up to 1 Mbps
- Indoor/Urban Range: 200 ft (60 m)
- Outdoor/RF Line-of-Sight Range: 4000 ft (1200 m)
- Transmit Power: 3.1 mW (+5 dBm) / 6.3 mW (+8 dBm) boost mode
- Receiver Sensitivity: (1% PER) -100 dBm / -102 dBm boost mode
- Serial Data Interface: UART, SPI
- Configuration Method: API or AT commands, local or over-the-air
- Frequency Band: ISM 2.4 GHz
- Interference Immunity: DSSS (Direct Sequence Spread Spectrum)
- ADC Inputs: (4) 10-bit ADC inputs
- Digital I/O: 15
- Antenna Options: PCB (embeded), U.FL and RF PAD
- Operating Temperature: -40° C to +85° C
- Dimensions (L x W) and Weight: 0.87 in x 1.33 in x 0.12 in (2.20 cm x 3.40 cm x 0.30 cm); 1.40 oz (40.00g)
- Memory: N/A
- CPU/Clock Speed: N/A
Networking and Security:
- Protocol: ZigBee PRO 2007, HA-Ready with support for binding/multicasting
- Encryption: 128-bit AES
- Reliable Packet Delivery: Retries/Acknowledgments
- IDs: PAN ID and addresses, cluster IDs and endpoints (optional)
- Channels: 16 channels
Package included:
- 1 x Xbee ZigBee SMT
