Description:
XC709D multi-function numerical control system is perfect for engraving, milling, drilling, and tapping. With 32-bit high-performance microprocessor, it features real-time multi-task control technology. It is designed with hardware interpolation technology, full linkage, and high-speed algorithm for small lines. Its interpolation accuracy is accurate as 0.001mm, and its speed up to 30 m/min.

It is the best choice for your engraving machine, small processing center, CNC milling machine and CNC drilling machine.

Features:
- Based on 32-bit microprocessor, it supports full linkage, 0.001 mm interpolation accuracy, and direction + pulse and orthogonal pulse.
- 7-Inch Color LCD: 800 x 480 resolution. Equipped with 8 softkeys, it is easy to learn and operate. It offers rich display interfaces for parameter classification, alarm log, system diagnosis and the like. It facilitates debugging and maintenance.
- Using international standard G instruction which is compatible with FANUC system instruction.
- 40 kinds of G command codes support drilling and tapping cycles.
- Full screen editing of program for your parts. Built in 1G memory for storing N pieces of parts programs.
- USB Interface: Support reading and writing, data backup for U disk file.
- I/O 24/24: It is flexible to use, for its I/O ports can be expanded to 96/96.
- Two Languages: Chinese and English operation interface for convenient operation.
- The system adopts acceleration and deceleration control before interpolation.
- Support length and cutter radius compensation.
- Support processing via external pendant handwheel.
- Supports multi-level operation authorization for easy management, featuring time-limited system locking function.
- Supports for G code files of third-party software, including UG, Mastercam, PowerMill, Feature CAM, ArtCAM, JDPaint, Wentai.
- Flexible to use a variety of tool magazines, supporting self-programming tool magazine.

Technical Specifications:
Basic functions:
- Number of Controlled Axes: 6-Axis
- Number of Linkage Axes: Full Linkage
- Tool Magazine: Support; Need to edit the code of tool magazine
- Spindle: 2-way analog spindle, in which spindle 1 can be digital spindle (occupying a digital spindle)
- Spindle Monitoring: Yes
- Minimum Instruction Unit: 0.001 mm
- Maximum Instruction Value: ±99999999 x mini- Fast Feed Speed: 30,000mm/min
- Rate of Feed: F0, 25%, 50%, 75%, 100%
- Pulse Modes:
  Mode 1: Direction + Pulse;
  Mode 2: Orthogonal Pulse (Recommended, featuring anti-jamming if your driver supports)
- Maximum Frequency: Settable in 100Khz, 200Khz, 500KHz. (500KHz can only be achieved in orthogonal output modes of all axes)
- Feed Rate Multiplier: 0-150%
- Electronic Gear Ratio: 1-65535:1-65535
- Automatic Acceleration & Deceleration: Yes
- Advanced Algorithm for Small Lines at High Speed: Yes
- Compatible with Handwheel: Yes
- Location: G00 (Linear Interpolation Location)
- Interpolation: Linear (G01), Circular (G02/G03/G12), Spiral-line Interpolation
- Returning to Reference Point: Automatically (G28)
- LCD: 7-inch TFT LCD screen with resolution of 800 x 480
- MDI Softkey: 8
- Step Feed Amount: x1, x10, x100
- Communications Interface: U disk interface
- External Handwheel Interface: Yes
- I/O Interface: 24/24 (Extensible to 96/96)
- Pause (seconds): Yes
- Accurate Stop Status: Yes
- Accurate Stop: Yes
- Storage Travel Checking: Yes
- MDI Running: Yes. It supports multi-segment operation
- Reset: Yes
- Jump Switch: Yes
- Single Block Operation: Yes
- Program Protection Switch: Yes
- Self-diagnostic Function: Yes
- Emergency Stop: Yes
- Power Supply: Single-phase AC220V+10%-15%, 50Hz±1Hz
- Coordinate Systems: Machine Coordinate System (G53), Workpiece Coordinate System (G92, G54-G59), Local Coordinate System (G52), Plane Designation of Coordinate System
- Automatic Coordinate System Setting: Yes
- Decimal Point Input: Yes

Auxiliary Function:
- Auxiliary functions: M2 digits, M code customization, manual/MDI/automatic control of spindle forward, reverse and stop; control of coolant to start and stop; control of lubrication to start and stop, etc.

Spindle Functions:
- Spindle Function: Dual Spindles
- Digital Spindle: Spindle 1 supports digital spindle, occupying a digital axis (Z axis does not support), featuring stable speed
- Tapping: Support
- Spindle Analog Output: Yes. Dual-spindle output

Tool Functions:
- Tool function: Support automatic tool change, support split-centered tool, three-point centered tool alignment
- Tool Compensation Memory: - 9999.999 to 9999.999, 99psc
- Tool Compensation: Tool Length Compensation & Cutter Radius Compensation

Editing Operation:
- Editorial Functions: Parameters, Diagnostic Bit Input, Program Editing, MDI Multi-segment Execution
- Storage Capacity: 1G
- Number of Stored Programs: 500pcs
- Display of Program Names: Chinese, English, Numbers, and Combinations
- Looking for Program Lines: Yes
- Skip Optional Program Segment: Yes
- Program Switch: Yes

Display:
- Displayed Language: Chinese, English
- Processing Time & Number of Parts: Display
- Spindle Speed, M/S Instruction: Yes

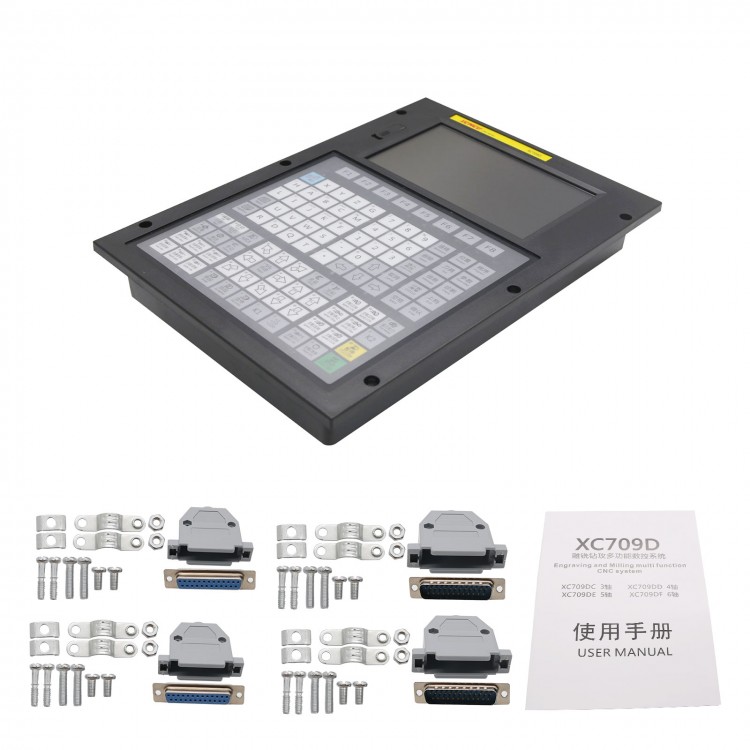

Package Included:
- 1 x XC709D 6-Axis CNC Numerical Control System
