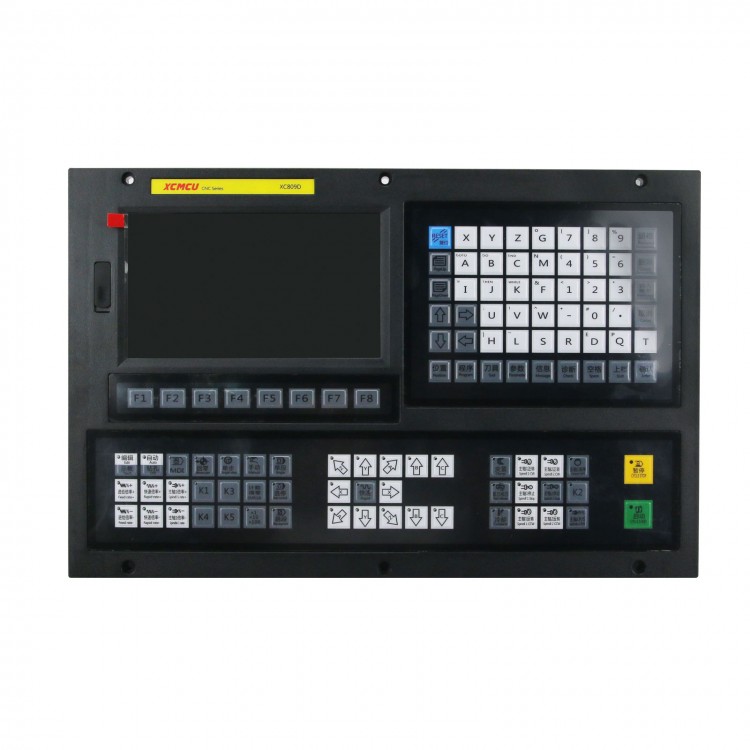

XC809DF 6 Axis CNC Motion Controller System w/ 7" Color LCD For Carving Milling Drilling Tapping

XC809DF 6 Axis CNC Motion Controller System w/ 7" Color LCD For Carving Milling Drilling Tapping

System Introduction:
It is a new generation multifunctional CNC system for engraving, milling, drilling and tapping. Support carving, milling, drilling and tapping. A 32-bit high-performance microprocessor, real-time multi-task control technology and hardware interpolation technology, full linkage, high-speed small segment forward-looking algorithm are used. It features 0.001 mm interpolation accuracy, the highest speed of 30 m/min. It is the best choice for engraving machine, small processing center, CNC milling machine and CNC drilling machine.

Software & Hardware Characteristics:
★ Based on 32-bit microprocessor, full linkage, 0.001 mm interpolation accuracy, maximum speed 30 m/min, support direction + pulse and orthogonal pulse.
★ It adopts 7-inch color wide screen LCD with resolution of 800 x 480 and interface style for Windows. Equipped with 8 soft function keys, it is simple and easy to learn and operate. Provides rich display interfaces such as parameter classification, alarm log, system diagnosis, etc. to facilitate debugging and maintenance.
★ International standard G instruction, compatible with system instruction for FANUC.
★ 40 Kinds of G instructions support drilling and tapping cycles.
★ Full-screen editing of parts program, built-in 512M mass program space, can store N parts program.
★ Has USB interface, supports U disk file reading and writing, data backup.
★ Input 24 (expandable to 96) points, output 24 (expandable to 96) points (customized), flexible and convenient.
★ Chinese and English operation interface, complete help information, more convenient operation.
★ The system adopts acceleration and deceleration control before interpolation.
★ Support long and radius cutter patches.
★ Supporting hand wheel trial processing, facilitating program debugging.
★ Supports multi-level operation authority, facilitates equipment management, and has time-limited system locking function.
★ Support for UG, Mastercam, PowerMill, Feature CAM, ArtCAM, JDPaint, Wentai and other third-party software G code files.
★ Support self-programming tool library, flexible use of a variety of tool libraries.

Technical Specifications:
Basic Functions:
- Number of control axes: XC809DC, 3-axis; XC809DD 4-axis; XC809DE 5-axis; XC809DF 6-axis;
- Number of linkage axes: Full linkage
- Tool library: Support, need to edit tool library code
- Spindle: 2-way analog spindle, in which spindle 1 can use digital spindle (occupying a digital spindle)
- Spindle monitoring: With
- Minimum instruction unit: 0.001 mm
- Maximum instruction value: ±99999999 x minimum instruction unit
- Fast feed speed: 30,000 mm/min
- Fast feed rate: F0, 25%, 50%, 75%, 100%
- Pulse mode: 1: Direction + Pulse 2: Orthogonal Pulse (recommended, anti-jamming stronger if driver supports)
- Maximum frequency: 100Khz, 200Khz, 500KHz can be set. (500KHz can only be achieved in all orthogonal output modes of axes)
- Feed rate multiplier: 0-150%
- Electronic gear ratio: 1-65535:1-65535
- Automatic acceleration and deceleration: With
- Prospective algorithm for high-speed small segment: With
- Handwheel Trial Processing: With
- Location: G00 (Linear Interpolation Location)
- Interpolation: straight line (G01), arc (G02/G03/G12), helix interpolation
- Return Reference Point: Automatically Return Reference Point (G28)
- LCD: 7-inch TFT LCD screen with resolution of 800 x 480
- MDI Software Key: 8pcs
- Single step: x1, x10, X100
- Communication interface: U disk interface
- External handwheel interface: With
- I/O Interface: 24/24 (Extensible to 96/96)
- Pause (seconds): With
- Quasi-stop state: With
- Quasi stop: With
- Storage Travel Check: With
- MDI running: With, it supports multiple runs.
- Reset: With
- Jump switch: With
- Single-stage operation
- Program protection switch: With
- Self-diagnostic function: With
- Emergency stop: With
- Power supply: single phase AC220V+10%-15%, 50Hz+1Hz
- Coordinate System: Machine Tool Coordinate System (G53), Workpiece Coordinate System (G92, G54-G59), Local Coordinate System (G52), Plane Designation of Coordinate System
- Automatic coordinate system setting: With
- Decimal point input: With

Auxiliary Function:
- Auxiliary functions: M2 digits, M code customization, manual/MDI/automatic control of spindle forward, reverse and stop; control of coolant start and stop; control of lubrication start and stop, etc.

Spindle Function:
- Spindle function: Dual-spindle
- Digital spindle: Spindle 1 supported, occupy one-way digital axis (Z axis does not support), the speed is more stable
- Tapping: Support
- Spindle analog output: With, dual-spindle

Tool Function:
- Tool function: support automatic tool change, support split-centered tool, three-point centered tool alignment
- Tool Compensation Memories - 9999.999 to 9999.999, 99pcs
- Tool Compensation, Length Tool Compensation and Radius Tool Compensation

Editing Operation:
- Editorial Functions: Parameters, Diagnostic Bit Input, Program Editing, MDI Multi-segment Execution
- Storage capacity: 512M
- Number of stored programs: 500pcs
- Display of Program Names: Chinese, English, Numbers and Combinations
- Procedure line lookup: With
- Skip the optional procedure section: With
- Program switch: With

Display:
- Display: Chinese, English
- Display processing time, number of parts: Yes
- Spindle speed, M/S instruction: With

Host Size (mm):
- Dimensions: 390 x 253 x 80mm/15.4 x 10 x 3.1" (HxWxT)
- Opening Size: 370 x 228mm/14.6 x 9" (HxW)

Package Included:
- 1 x CNC Control System
