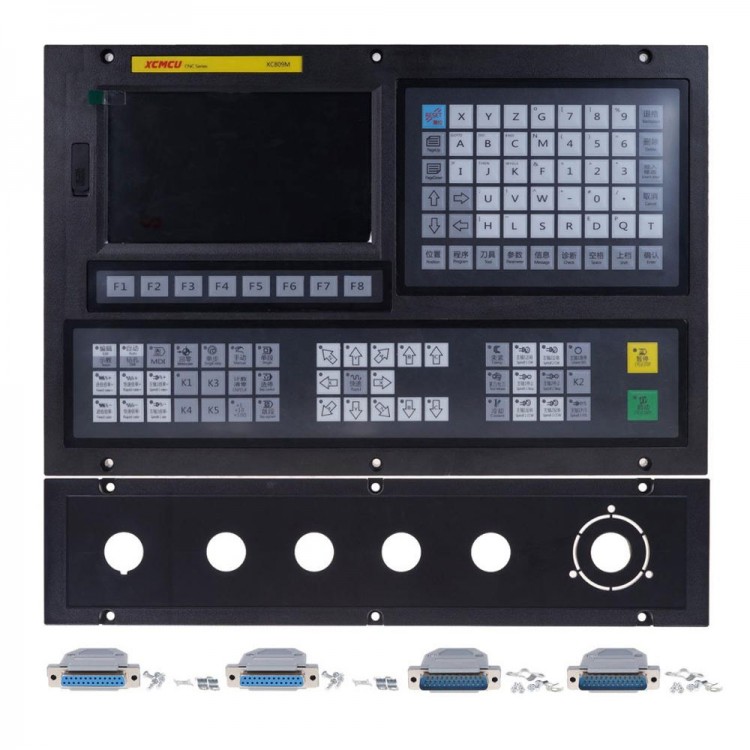

XCMCU XC809MA 1 Axis USB CNC Controller CNC Motion Controller for Milling Boring Tapping Drilling
Description:
The multi-function CNC controller system is a new generation CNC system developed by our company. It supports boring, tapping, drilling and automatic feeding. It adopts 32-bit high-performance microprocessor, real-time multi-task control technology and hardware interpolation technology, fully linked, 0.001mm interpolation precision, and the highest speed is 30m/min. It is the best choice for CNC drilling machines, special machine tools, automation equipment, feeding robots, etc.
Features:
- Based on 32-bit microprocessor, fully linked, 0.001mm interpolation accuracy, maximum speed of 30m/min. Support direction + pulse and quadrature pulse.
- 7" widescreen color LCD, resolution 800X480, Windows interface style. Equipped with 8 soft function keys. It is simple to operate and easy to learn. Provide rich display interface such as parameter classification, alarm log, system diagnosis, etc., convenient for debugging and maintenance.
- It can run 3 programs (1 main program and 2 sub-programs) at the same time, which is convenient for writing programs for processing, loading and blanking.
- International standard G directive, compatible with system directives for FANUC.
- 40 kinds of G-command: support drilling cycle and tapping cycle.
- Part program full-screen editing, built-in 512M massive program space, can store N parts program.
- USB interface: support U disk file reading and writing, and data backup.
- Input 24 points (expandable to 96), output 24 points (expandable to 96) (custom), flexible and convenient.
- Chinese/English operation interface, switchable, complete help information, and more convenient operation.
- System uses pre-interpolation acceleration and deceleration control.
- Support multi-level operation authority, convenient device management, and limited time system locking function.
- Support third-party software G code files for UG, Mastercam, PowerMill, FeatureCAM, ArtCAM, JDPaint, Wentai, etc.
- Supports self-programming of the tool magazine and flexible use of multiple tool magazines.
Package Included:
- 1 x CNC Controller System
- 1 x Expansion Panel
