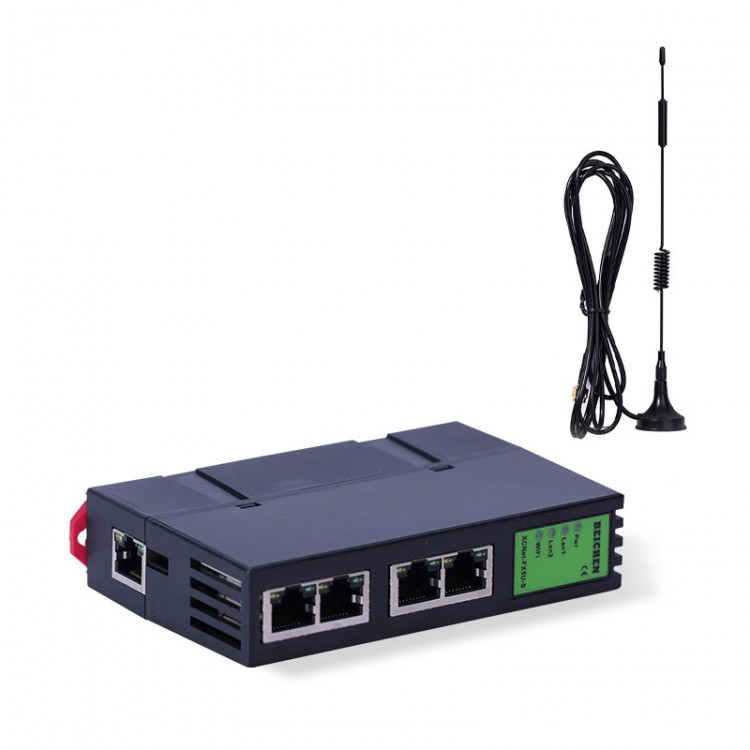

XCNet-FX5U-S Ethernet Module (2m Magnetic Antenna) Data Acquisition Module for Mitsubishi FX5U/FX5UJ/FX5UC

XCNet-FX5U-S Ethernet Module (2m Magnetic Antenna) Data Acquisition Module for Mitsubishi FX5U/FX5UJ/FX5UC

Description:
- XCNet-FX5U-S is a high-performance protocol conversion gateway used for Ethernet data acquisition for Mitsubishi MELSEC iQ-F (FX5U, FX5UJ, and FX5UC) network interface PLCs, making it very convenient to build production management systems.

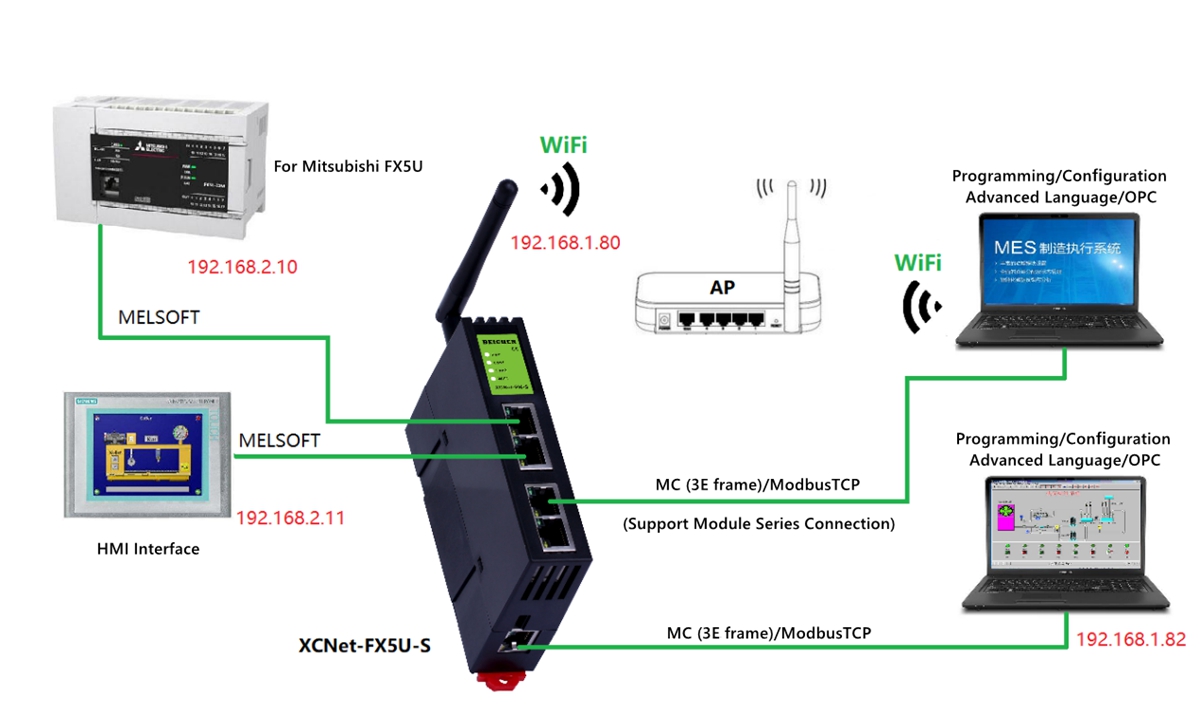

- The LAN1 of XCNet FX5U-S will automatically establish a connection with the PLC, mapping FX5U to an SLMP (MC3E) server, supporting ModbusTCP master slave communication function, without the need for PLC programming. XCNet-FX5U-S can achieve the function of NAT address conversion, which maps the IP address of the PLC connected to the LAN1 port to any IP address of the LAN2/WiFi interface, conveniently solving the problem of on-site devices being unable to modify the IP address.
- Integrated WiFi function, supporting AP mode, STA mode, and AP+STA mode, with rubber rod and magnetic antenna, facilitating the construction of WiFi network. PLC programming, data acquisition, data exchange, and cross network segment access can be directly carried out through WiFi.

Features:
- Installed on a 35mm guide rail, LAN1 is 4 x RJ45 and has switch function. This port is connected to a PLC, upper computer, or touch screen; LAN2 is a single port RJ45 that can connect touch board or upper computer systems across network segments; WiFi external high gain antenna, which can be connected to the upper computer; XCNet FX5U-S is powered by an external 24VDC power supply.
- Integrated WiFi function, supporting AP mode, STA mode, and AP+STA mode.
- PLC programming, data acquisition, data exchange, and cross network segment access can be achieved through WiFi.
- Integrated WEB server, device parameters can be set and diagnostic can be run through web pages; It can also be configured through the BCDevice tool; You can configure it from the LAN1/LAN2 interface or WiFi at will.
- Implement NAT function, which can forward TCP and UDP protocol packets across network segments, and achieve extended network segment access to PLC data.
- Support ModbusTCP server function, which can map FX5U to ModbusTCP server. The mapping relationship between Modbus and internal software components of PLC can be freely edited.
- Support SLMP (MC3E) server function, which can map FX5U to SLMP (MC3E) server, making it convenient for OPC to use Ethernet driver function.
- Supports the ModbusTCP master function, which can read data from ModbusTCP slave devices (instruments, gateways, etc.) into FX5UPLC without the need for PLC programming.
- Integrated data exchange function, supports data exchange with PLC for Siemens, supports data exchange with ModbusTCP server, and supports wired/wireless data exchange between multiple FX5Us.
- The LAN1/LAN2/WiFi interface can support up to 32 upper computer accesses.
- SCADA (upper configuration software) that supports OPC channels communicates with PLC in OPC mode.
- Support firmware updates on the user side through Ethernet, provide free firmware integration with more features.

Specification:
- Status display: Pwr, LAN1, LAN2, WiFi
- Programming software: GX Work3
- Configuration software: for WinCC, for MCGS, for KingView, for Force Control, for FameView, for IFIX, for INTOUCH, etc.
- OPC software: for Kepware OPC
- Diagnostic and parameter setting: IE browser, 192.168.1.188 by default, BCDevice
- Power supply: external 24V DC
- Voltage type: 24V DC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 95% non-condensing
- EMC: 2014/30/EU
- Size (L x W x H): 115 x 27 x 75mm
- Weight: 150g

WiFi interface: 802.11 b/g/n; 2.4G - 2.5G
- Interface type: external high gain antenna
- Transmission power: +26dBm (MAX, 2.4G 802.11b/g/n)
- Receiving sensitivity: -89dBm (802.11b), -74dBm (802.11g), -72dBm (802.11n)
- Wireless type: Station/AP mode
- Safety mechanism: WPA-PSK/WPA2-PSK/WEP
- Supported protocol: for MELSOFT, for ModbusTCP; for SLMP (MC3E)
- Connection: max. 32

LAN1 (for PLC): Link/Active indicator, automatic polarity crossing
- Interface type: RJ45 Female x 4
- Transmission speed rate: 10/100Mbps
- Supported protocol: for TCP/IP; for UDPBroadcast, for MELSOFT
- Connections: max. 32

LAN2 (for upper computer): Link/Active indicator, automatic polarity crossing
- Interface type: RJ45 Female
- Transmission speed rate: 10/100Mbps
- Supported protocol: for MELSOFT, for ModbusTCP, for SLMP (MC3E)
- Connections: max. 32

Package Included:
- 1 x Module
- 1 x Magnetic Antenna
