XCNet-MIT Ethernet Module PLC to MC (3E Frame) Server Data Acquisition Module for Mitsubishi Q-Series

XCNet-MIT Ethernet Module PLC to MC (3E Frame) Server Data Acquisition Module for Mitsubishi Q-Series

Description:
- XCNet MIT is a high-performance protocol conversion gateway used for Ethernet data acquisition for Mitsubishi Q03UDE, Q03UDV, L-series and other network interface PLCs, making it very convenient to build production management systems.
- XCNet MIT has two physical interfaces, LAN1 and LAN2, which can map the IP address and port number of the PLC connected to the LAN1 port to any IP and port number of the LAN2 port. XCNet MIT can automatically map the MELSOFT protocol of LAN1 port to the ModbusTCP protocol of LAN2 port and MC (3E frame) server.

Features:

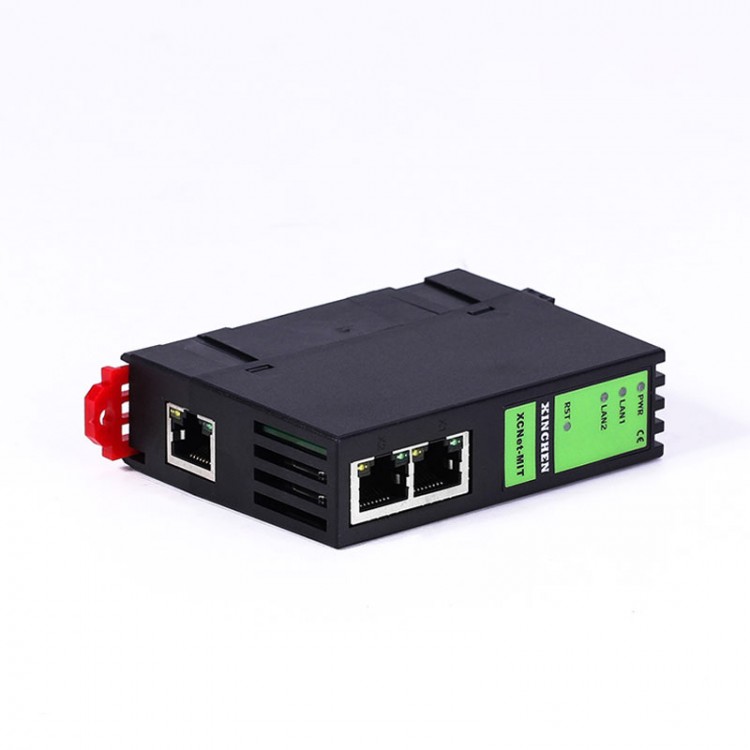

- Installed on a 35mm rail, LAN1 is a dual port RJ45 with switch function, which is connected to the PLC; LAN2 is a single port RJ45 that can be connected to a touch board or upper computer system; XCNet MIT is powered by an external 24VDC power supply.
- Integrated WEB server, device parameters can be set and diagnostic can be run through web pages; It can also be configured through the BCDevice tool; It can be configured from any LAN1 or LAN2 port.
- Implement for Mitsubishi internal protocol MELSOFT connection, which can map the MELSOFT protocol to ModbusTCP and MC (3E frame) servers on the LAN2 port. It can achieve ModbusTCP and MC (3E frame) protocol connection without configuring PLC for Mitsubishi.
- Implement NAT function, mapping the IP address and port number of the PLC connected to the LAN1 port to any IP and port number of the LAN2 port.
- The LAN2 port can support the ModbusTCP server function, and can map the PLC connected to MELSOFT to the ModbusTCP server of the LAN2 port; The mapping relationship between the internal software components of Modbus and for Mitsubishi PLC can be freely edited.
- The LAN2 port can support the MC (3E frame) protocol server function, which can map the PLC connected to MELSOFT to the MC (3E frame) protocol server of the LAN2 port, making it convenient for OPC to use the Ethernet driver function for Mitsubishi.
- The LAN2 port can support up to 32 upper computer accesses.
- With MC (3E frame) protocol or ModbusTCP, advanced language (such as VB, VC, C #, etc.) programming can be realized, and data communication with PLC can be realized to facilitate the development of production management system.
- SCADA (upper configuration software) that supports OPC channels communicates with PLC in OPC mode.
- Support firmware updates on the user side through Ethernet, provide free firmware integration with more features.

Specification:
- Status display: Pwr, LAN1, LAN2
- Programming software: for GX Work2, for GX Developer
- Configuration software: for MCGS, for KingView, for FORCECON etc.
- OPC software: for Kepware OPC
- Diagnostic and parameter setting: IE browser, 192.168.1.188 by default, BCDevice
- Power supply: external 24V DC
- Voltage type: 24V DC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 90% non-condensing
- EMC: 2014/30/EU
- Size (L x W x H): 90 x 24 x 65mm
- Weight: 120g

Ethernet Interface: IEEE 802.3 compatibility, Link/Active indicator, line sequence adaptive, support for Auto-MDIX
- Interface type: RJ45 Female socket
- Transmission speed rate: 10/100Mbps
- Supported protocol: for MELSOFT, for ModbusTCP, for MC (3E Frame), etc.
- TCP Connections: 32

LAN1 (for PLC): Ethernet
- Interface type: RJ45 x 2
- Transmission speed rate: 10/100Mbps
- Supported protocol: for TCP/IP, for MELSOFT

LAN2 (for upper computer): Ethernet
- Interface type: RJ45 x 1
- Transmission speed rate: 10/100Mbps
- Supported protocol: for TCP/IP, for ModbusTCP, for MC (3EFrame)

Package Included:
- 1 x Module
