XCNet-PN Ethernet Module High Performance Protocol Conversion Gateway for Siemens PLC Data Acquisition

XCNet-PN Ethernet Module High Performance Protocol Conversion Gateway for Siemens PLC Data Acquisition

Description:
- XCNet-PN is a high-performance protocol conversion gateway, which is designed to meet the growing needs of factory equipment informatization (equipment Network monitoring and production management). It is used for Ethernet data acquisition for Siemens PLC with Ethernet interface (S7-1200/1500, S7-300PN, S7200 SMART, etc.), for Siemens Ethernet modules (CP243-1, CP343-1, etc.), and is very convenient for building the production management system.

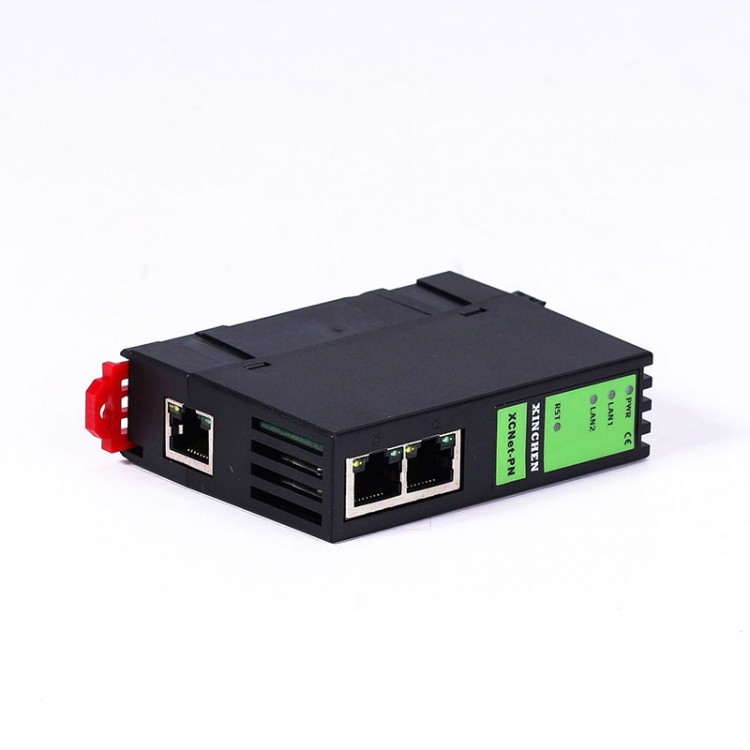

- XCNet-PN has two physical interfaces, LAN1 and LAN2 ports, each of them having independent LAN capabilities. LAN1 is a dual RJ45 interface with switch function, used to connect to the PLC; LAN2 is a single port RJ45, mainly used for upper computer acquisition or touch screen connection.

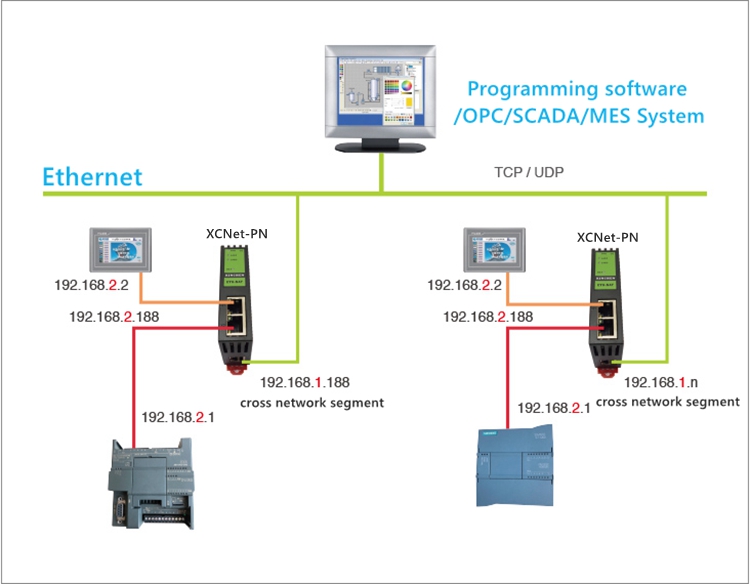

- The LAN1/LAN2 of XCNet-PN has cross segment functionality, which can convert the S7TCP protocol of LAN1 port into Modbus TCP protocol and BCNetS7 (S7TCP/IP) protocol of LAN2 port. LAN2 supports Modbus TCP master slave communication function.

Features:
- Installed on a 35mm rail, LAN1 is a dual port RJ45 with switch function, which is connected to the PLC; LAN2 is a single port RJ45 that can be connected to a touch screen or upper computer system; XCNet is powered by an external 24VDC power supply.
-Integrated WEB server can set device parameters and running diagnostics through web pages; It can also be configured through the BCDevice tool; It can be configured from LAN1 or LAN2 port.
- Implement NAT function, mapping the IP address and port number of the PLC connected to the LAN1 port to any IP and port number of the LAN2 port.
- For SmartIE series touch screens can be connected to PLCs such as S7-1200 and S7-1500.
- The LAN2 port can support the ModbusTCP server function, and can map the PLC connected to the LAN1 port to the ModbusTCP server of the LAN2 port.
- The LAN2 port can support the BCNetS7 protocol server function, and the PLC connected to the LAN1 port can be mapped to the BCNetS7 protocol server of the LAN2 port, making it convenient to use the BCNetS7 function.
- Support a server/client concurrent model with up to 32 LAN2/LAN1 ports, and the LAN2 port can support up to 32 upper computer accesses.
- With BCNetS7 protocol or ModbusTCP, High-level programming language (such as VB, VC, C #, etc.) programming can be realized, and data communication with PLC can be realized to facilitate the development of production management system.
- SCADA (upper configuration software) that supports OPC channels communicates with PLC in OPC mode.
- Support firmware updates on the user side through Ethernet.

Specification:
- Status display: Pwr, LAN1, LAN2
- Ethernet interface: IEEE 802.3 compatibility, Link/Active indicator, line sequence adaption, support for Auto-MDIX
- Interface type: RJ45 Female socket
- Transmission speed rate: 10/100Mbps
- Supported protocol: S7TCP/Modbus TCP/BCNetS7
- TCP connection: 32

LAN1:
- Interface (for PLC): Ethernet
- Interface type: RJ45 x 2
- Transmission speed rate: 10/100M
- Supported protocol: TCP/IP/S7TCP

LAN2:
- Interface (for upper computer): Ethernet
- Interface type: RJ45 x 1
- Transmission speed rate: 10/100M
- Supported protocol: TCP/IP/S7TCP/Modbus TCP/BCNetS7

General:
- Programming software: Protal V14
- Configuration software: for WINCC, for King View/for Power Control/for Fame View
- OPC software: for KepWare OPC
- Diagnostic and parameter setting: IE browser, 192.168.2.188 (LAN1) by default, 192.168.1.188 (LAN2) by default, BCDevice search configuration tool
- Power supply: 24V DC
- Voltage type: 24V DC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 90% non-condensing
- Installation method: 35mm rail installation
- EMC: 2014/30/EU
- RoSH production: YES
- Anti-vibration: 4.5mm/30Hz/10Min
- ESD: 6KV
- Factory aging: 60 degree aging chamber operates for 168 hours, with power on and off for 500 million times
- Communication stability: Continuous communication with PLC for 30 days, 130 million times communication with 0 errors
- Size (L x W x H): 90 x 24 x 65mm
- Weight: 120g

Package Included:
- 1 x Ethernet Module
