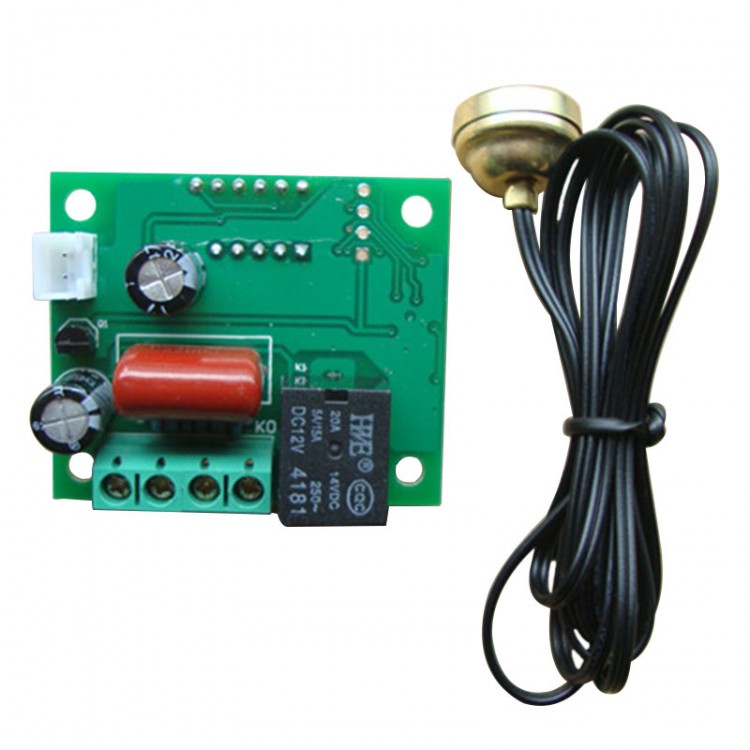

XD-1029 Refrigerator Temperature Controller Digital Electric Temperature Regulator Module with Probe
Features:
- Temperature measurement range: -50 to 110 DEG C resolution: -9.9-99.9 resolution: 0.1 C other temperature section 1 c
- Measurement precision: - 0.1 DEG C
- Control accuracy: 0.1 C
- Return difference accuracy: 0.1 C
- The refresh frequency: 0.5S
- High temperature protection: 0-110 C
- Input voltage: DC12V
- Measuring input: NTC (10K0.5%) waterproof type sensor
- Output: 1 channel 10A relay
- Environmental requirements: -10 C --60 C humidity 20%--85%
- Size: 48mm (length) *40mm (W)
- Overall power consumption: the quiescent current<=35MA operating current: <=65MA
Usage
Links good power and load , the controller can be powered to measure the temperature is displayed , press the SET button , the screen flashes the temperature ,
Press + - to set the desired temperature setting is completed press SET to confirm the return , then the controller will automatically execute the relay by setting off
Digital indicator status descriptions:
Indicators : Off the relay is off , ON means the relay is closed .
Digital Tube : Shows LL sensor is open, the display is out of range HH forcibly disconnect relay controller , display --- for high temperature protection
Parameter Function
Press SET 5 seconds to enter the main menu settings , press the + - Switch P0-P8 or long press SET button for 10 seconds without motion controller automatically confirmed to return.
Package included:
- 1 x Temperature Controller
- 1 x 220V 5A Probe
