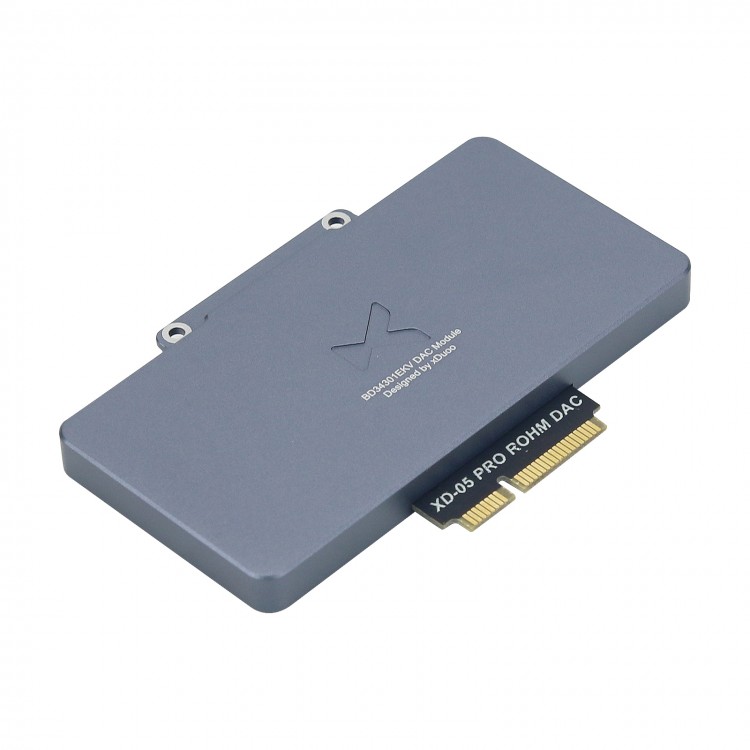

XDUOO BD34301EKV High Performance ROHM DAC Module Professional Balanced DAC for XD05 Pro Headphone Amplifier

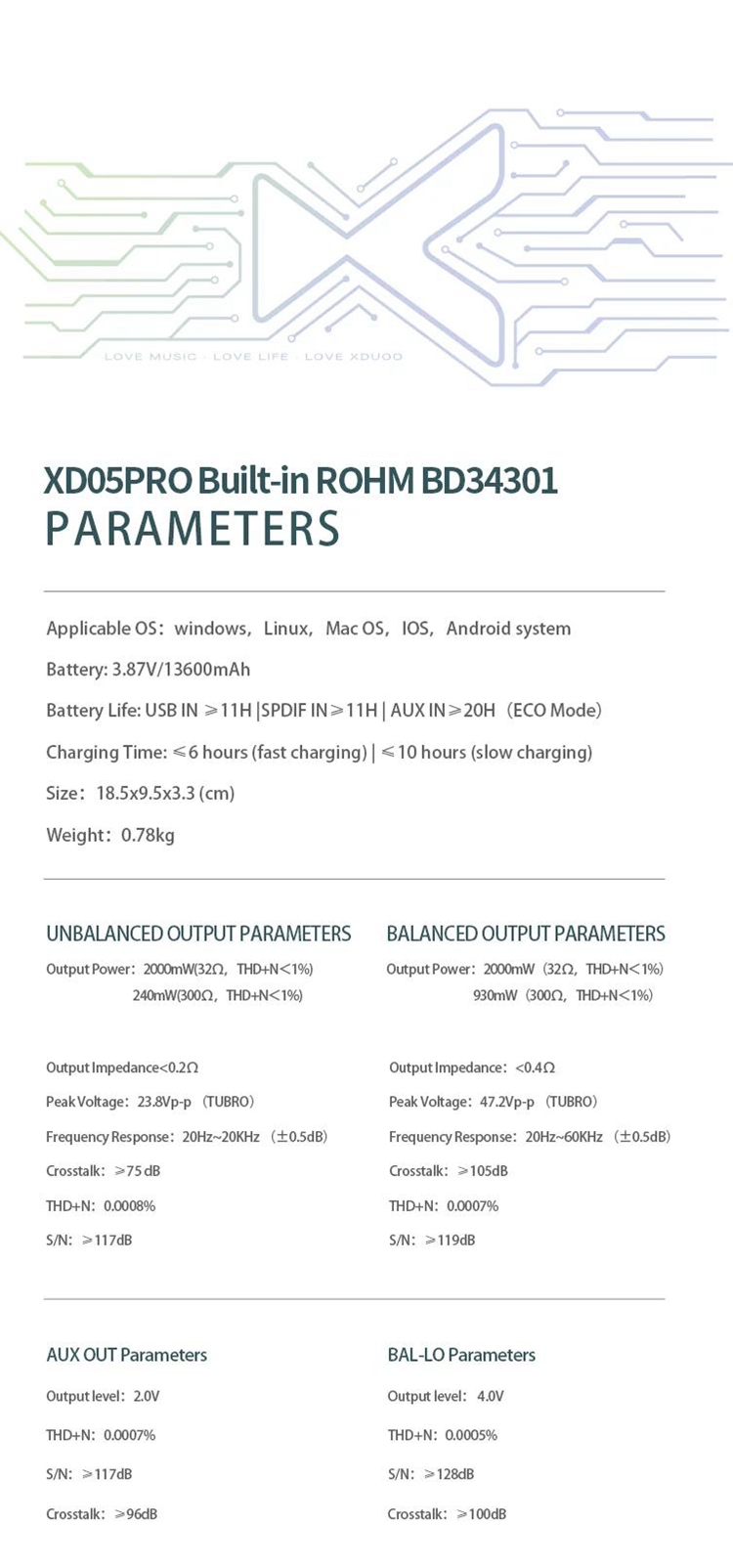

Specification:
- Applicable system: for Windows, for Linux, for Mac OS, for IOS, for Android system
- Battery: built-in 3.7V/13600mAh rechargeable lithium battery
- Duration: USB IN >= 11hours; AES (coaxial/optical) >= 11hours; AUX >= 20hours (ECO mode)
- Charging time: <= 6hours for PD fast charging; <= 15hours for common charging 5V/2A
- Dimension: 18.5 x 9.5 x 3.3cm
- Weight: 0.78kg
Single-end Output:
- Output power:
2000mW (32ohm, THD+N < 1%)
240mW (300ohm, THD+N < 1%)
- Output impedance: <= 0.4ohm
- Peak output voltage: 23.8Vpp (Tubro mode)
- Frequency response: 20Hz - 20kHz (+/-0.5dB)
- Separation degree: >=75dB
- THD: 0.0008%
- SNR: >=117dB
Balanced Output:
- Output power:
2000mW (32ohm, THD+N < 1%)
930mW (300ohm, THD+N < 1%)
- Output impedance: <=0.4ohm
- Peak output voltage: 42.7Vpp (Tubro mode)
- Frequency response: 20Hz - 60kHz (+/-0.5dB)
- Separation degree: >= 105dB
- THD: 0.0007%
- SNR: >=119dB
AUX Output:
- Output level: 2.0V
- THD: 0.0007%
- SNR: >=96dB
- Separation degree: >= 96dB
Balanced LO Output:
- Output level: 4.0V
- THD: 0.0005%
- SNR: >=128dB
- Separation degree: >=100dB
Package Included:
- 1 x DAC Module
Note:
- It only includes the DAC module, the XD05 Pro Headphone Amplifier is not included.
