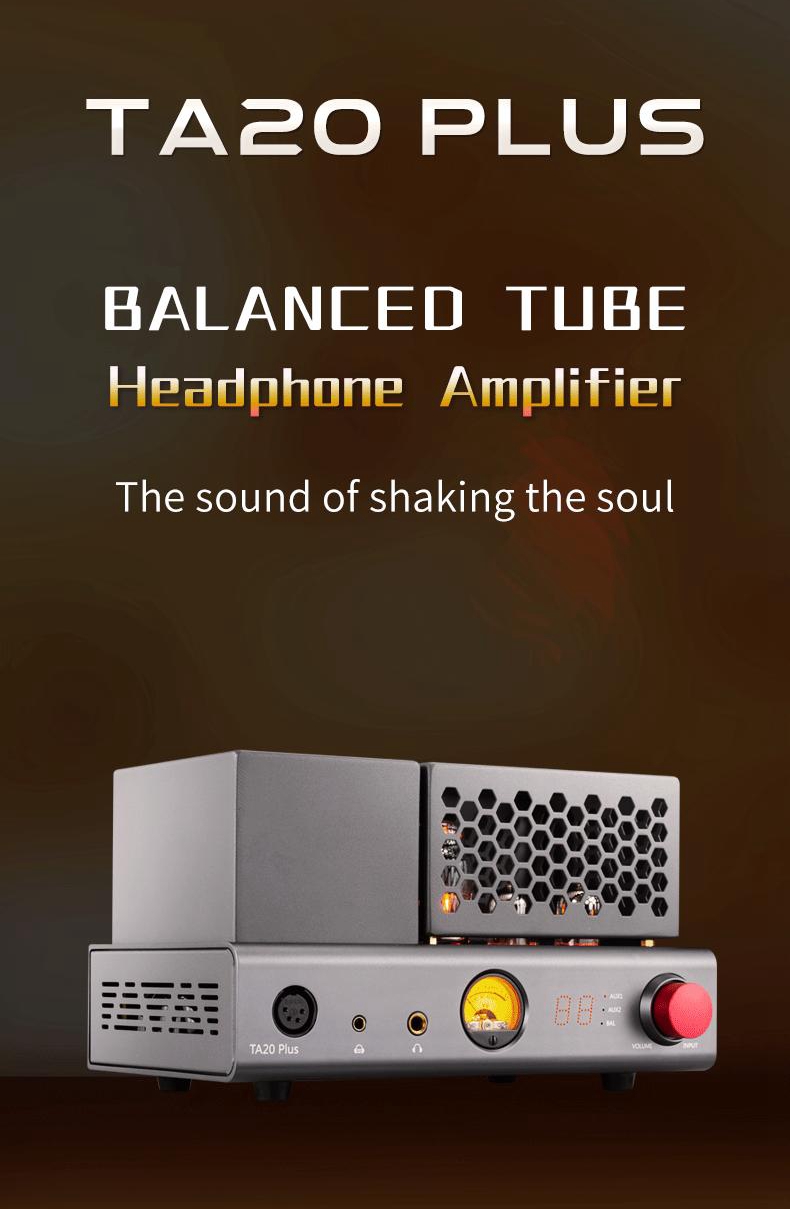

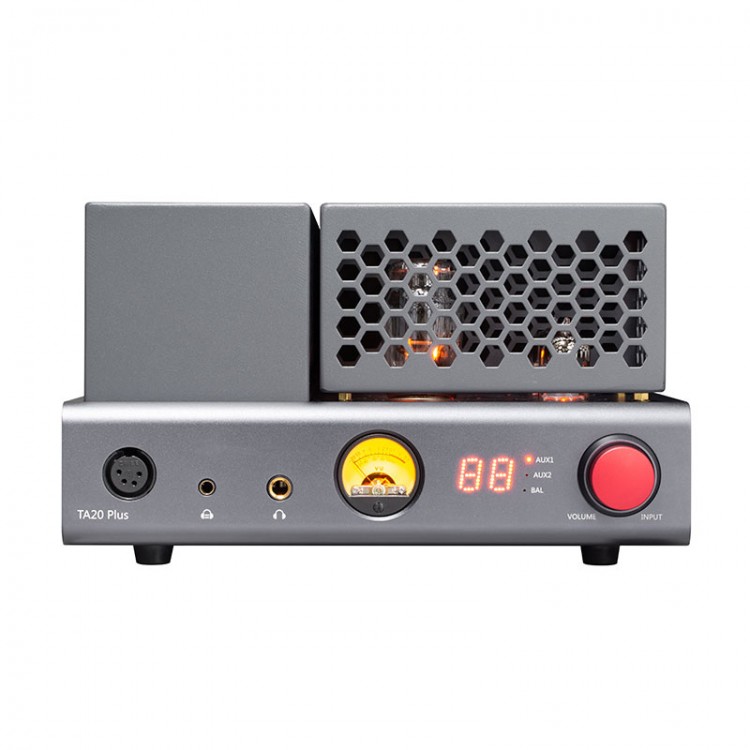

XDUOO TA-20 Plus Electronic Tube Amplifier Fully Balanced HiFi Headphone Amplifier with Dynamic VU Meter
Description:

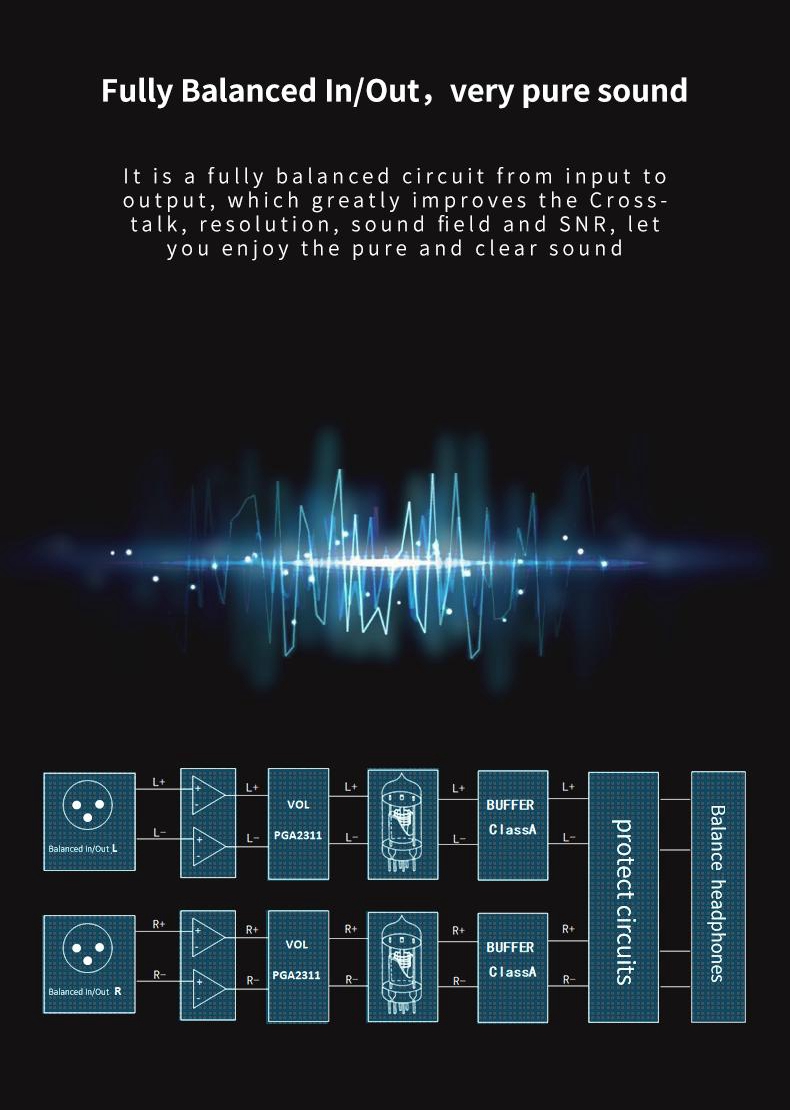

- The Pinnacle of Balanced Audio: the xDuoo TA-20 Plus Balanced Tube Headphone Amplifier takes audio performance to a whole new level. This fully balanced amplifier from input to output provides exceptionally clear sound, superior Crosstalk, high-resolution, and an impressive SNR.

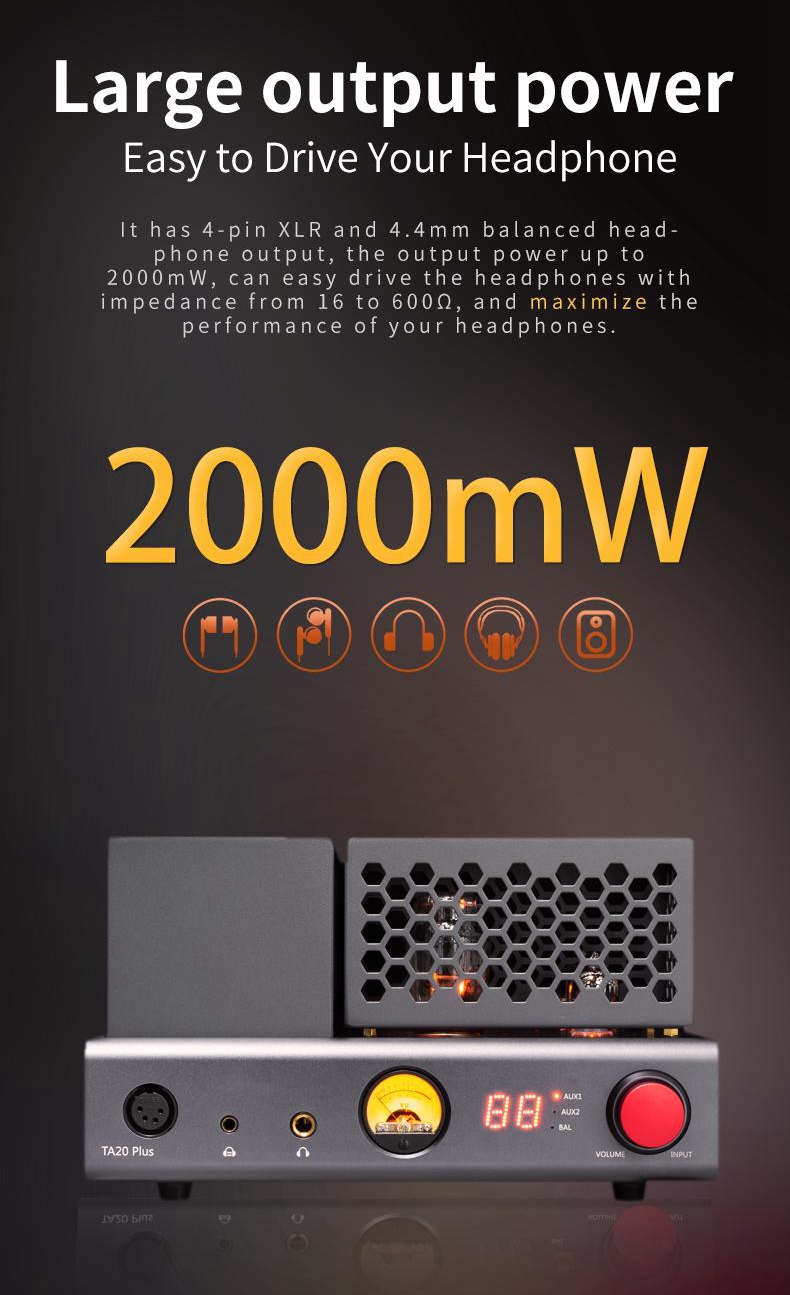

- The TA-20 Plus features 4-pin XLR and 4.4mm balanced headphone outputs with up to 2000mW of output power. It can easily drive headphones with impedance ranging from 6 to 600Ω, ensuring you get the most out of your high-end headphones.

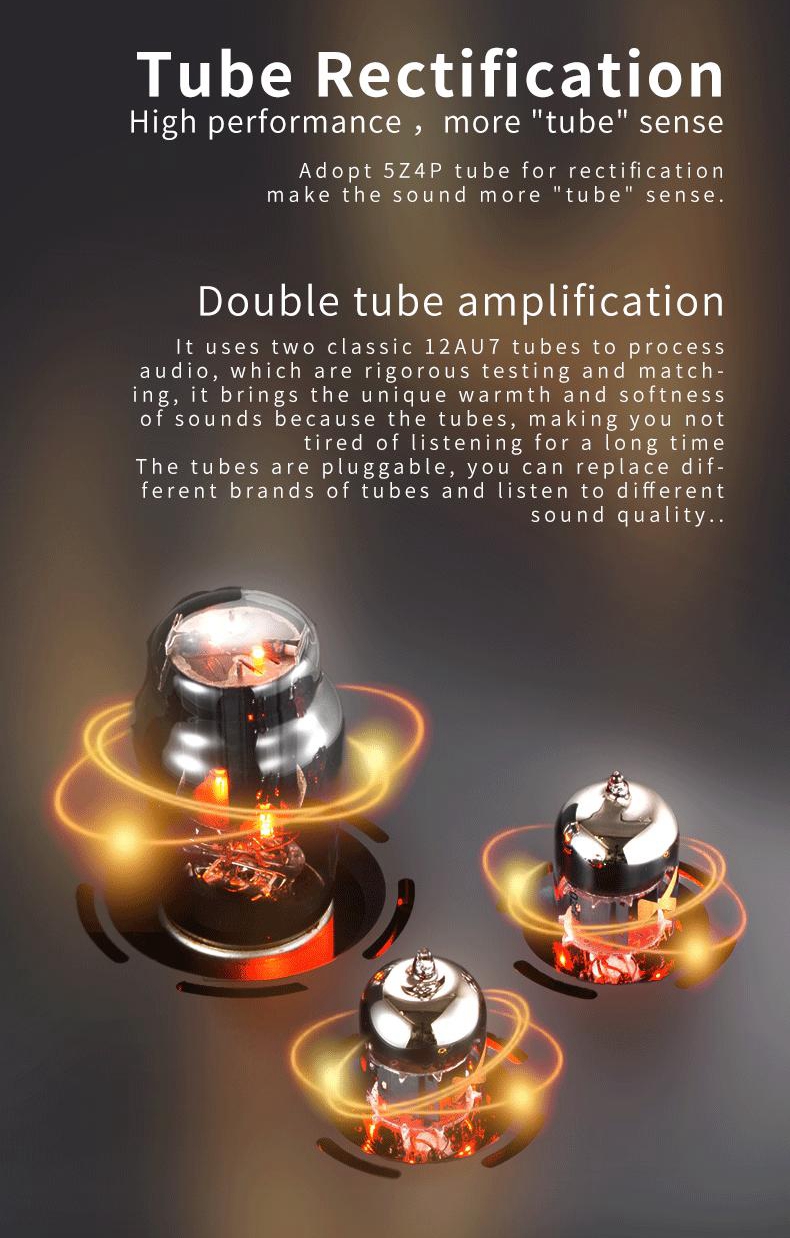

- True Tube Warmth: equipped with 5Z4P tube rectification and dual 12AU7 tubes, the TA-20 Plus delivers a warmth and softness to the audio that only tube technology can provide. Plus, these tubes are pluggable, allowing you to experiment with different brands and sound signatures.

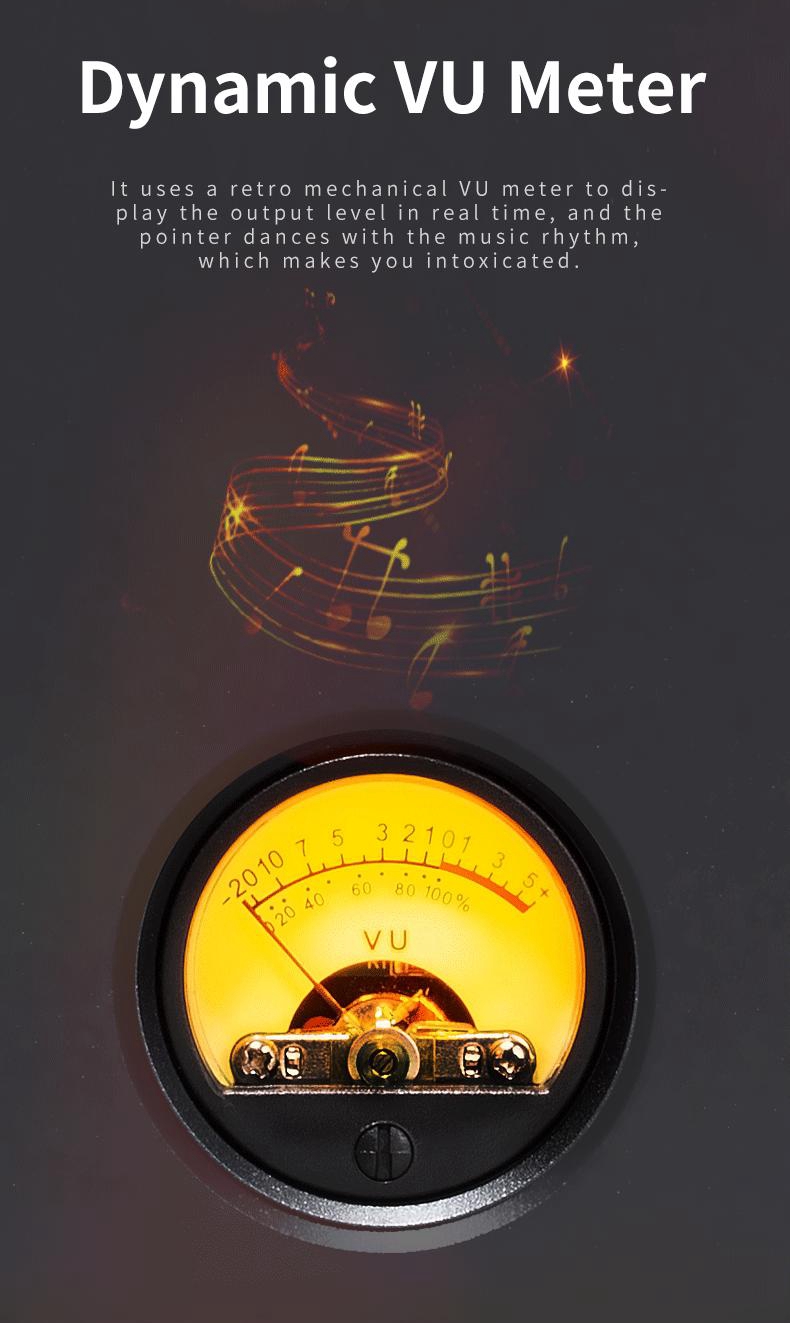

- Dynamic VU Meter: the amplifier incorporates a retro mechanical VU meter that displays the output level in real-time, dancing in tune with your music and providing a visually engaging experience.

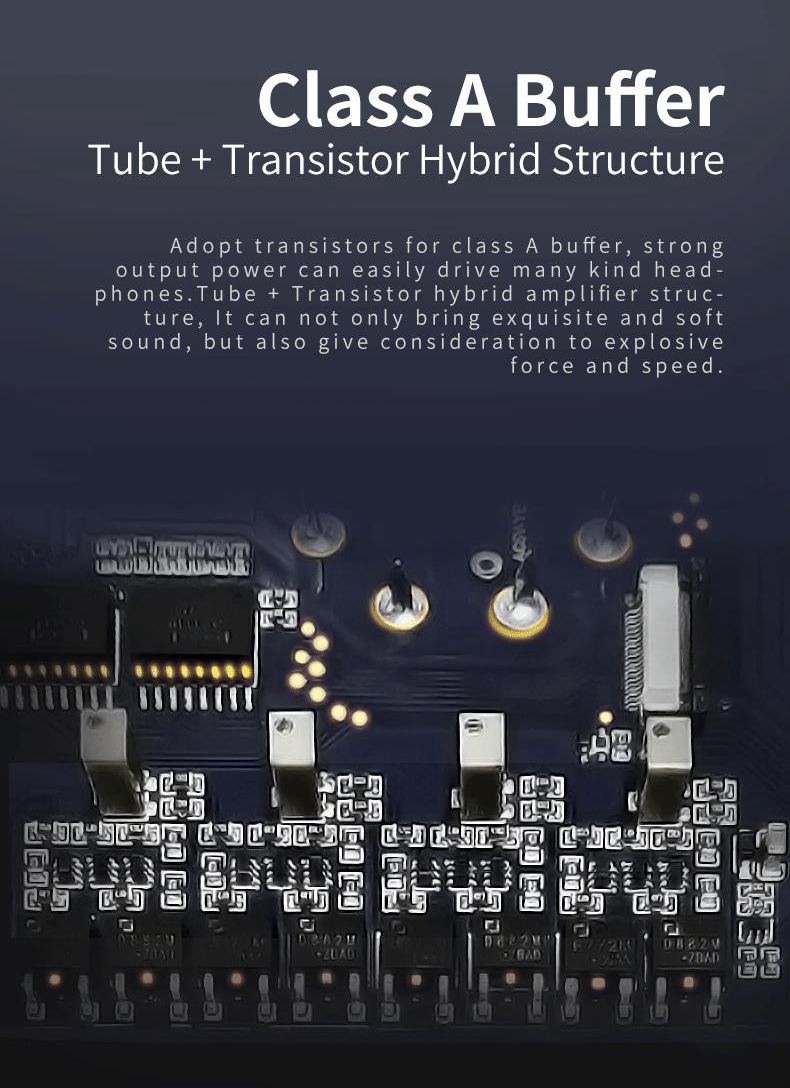

- Hybrid Powerhouse: it combines the softness of tube amplification with the raw power of a Class A transistor buffer. This Tube + Transistor hybrid structure offers both finesse and force in the audio output.

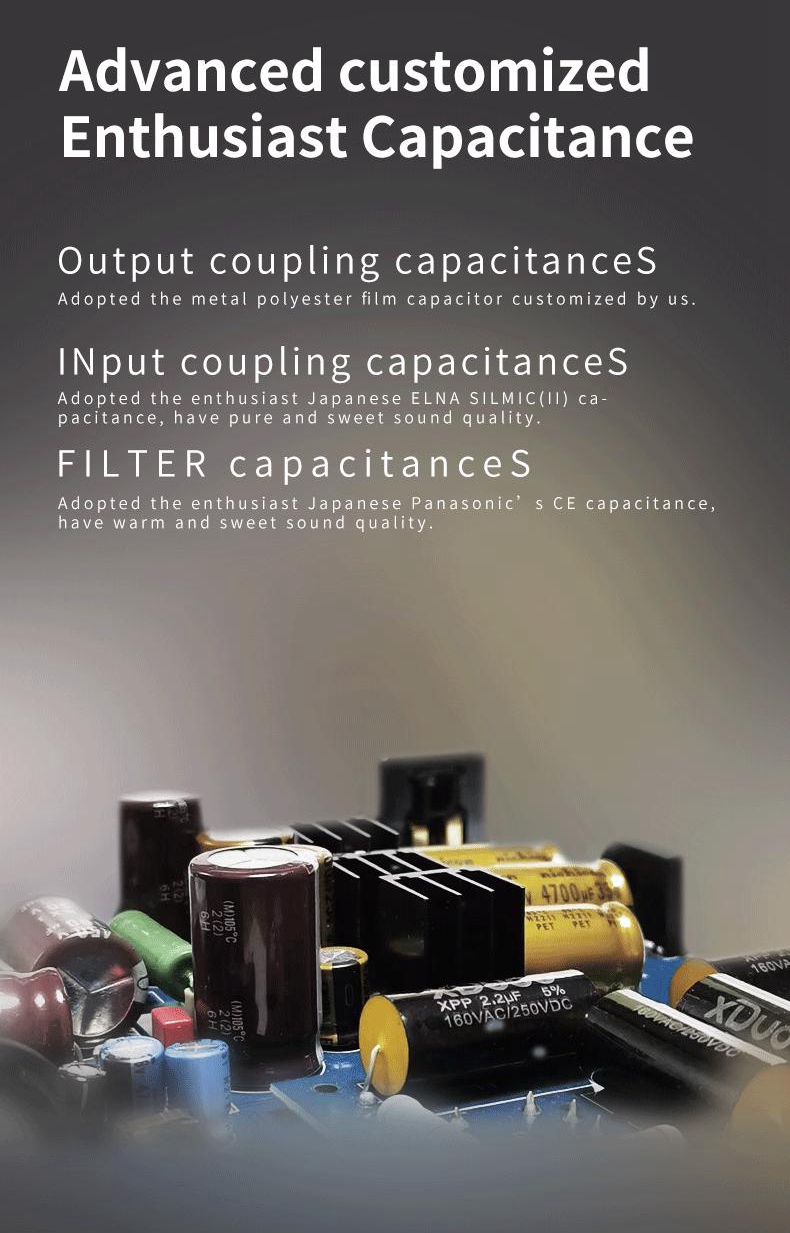

- Premium components for premium sound:
Output capacitance: Custom metal polyester film capacitor
Input capacitance: for ELNA SILMIC(II) for a pure and sweet sound
Filter capacitance: for Panasonic's CE, providing a warm and sweet audio experience

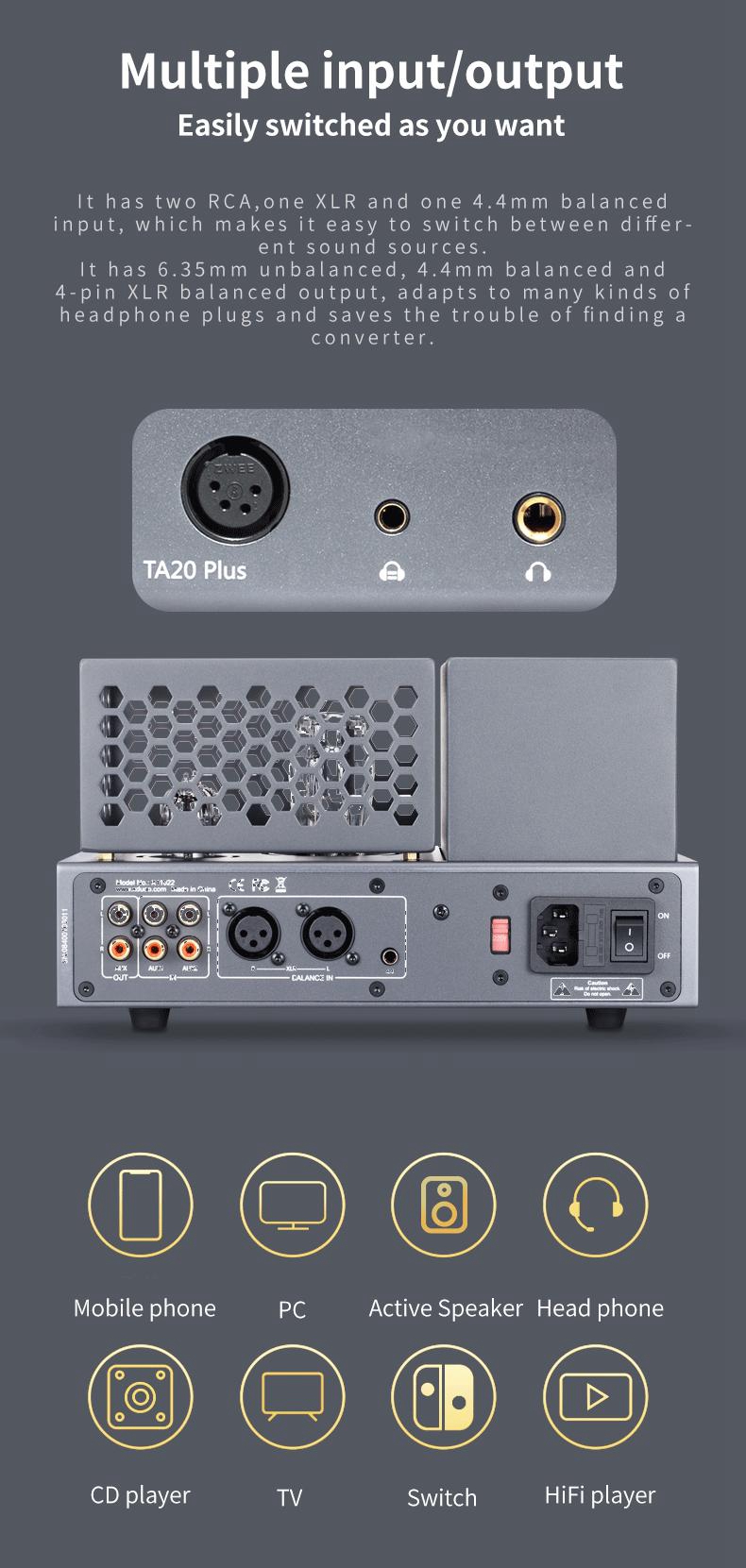

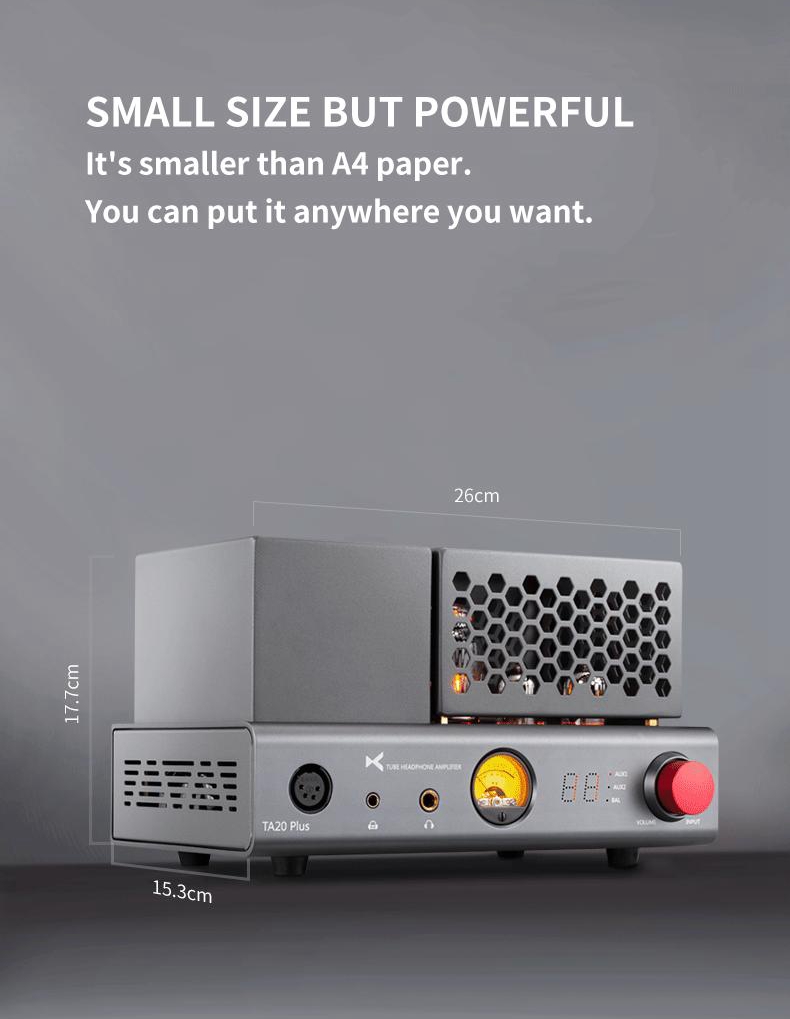

- Versatile and Practical: this compact unit, smaller than an A4 paper, comes with multiple inputs (two RCA, one XLR, and one 4.4mm balanced) and outputs (6.35mm unbalanced, 4.4mm balanced, 4-pin XLR balanced), making it a flexible choice for various audio setups.

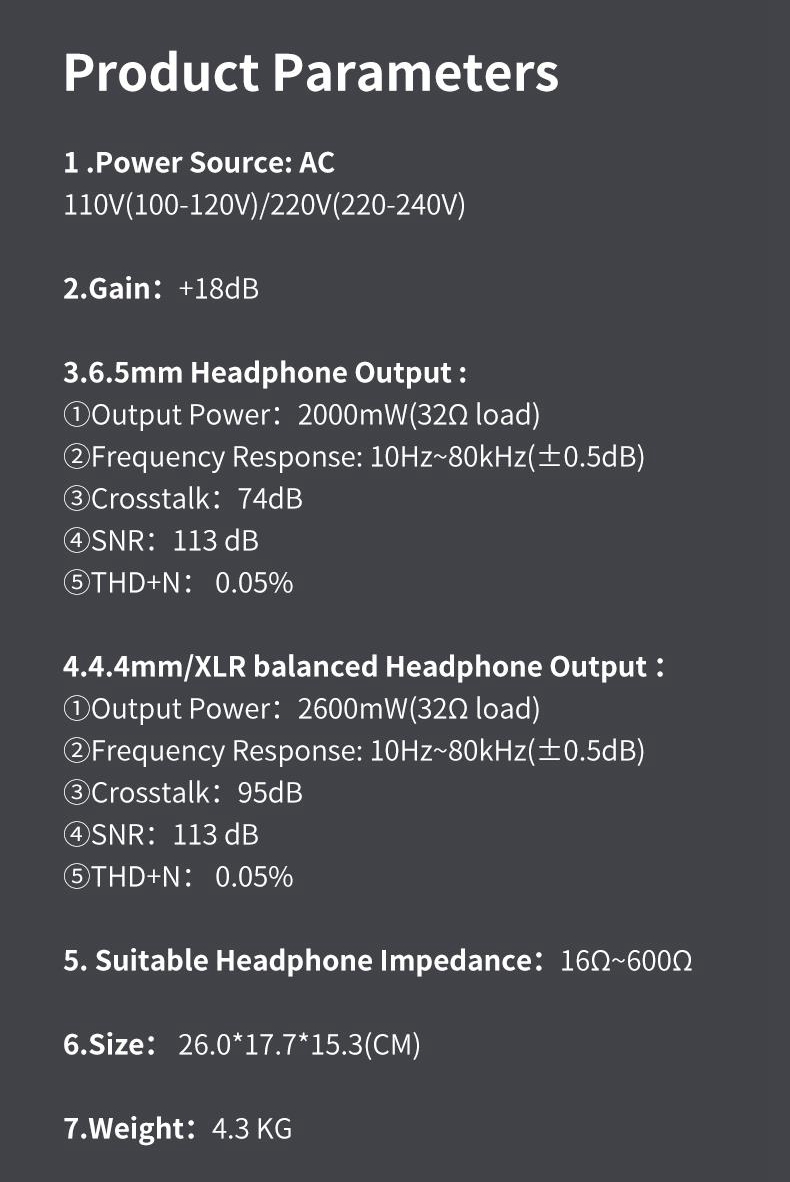

Specification:
- Power Source: AC 110V(100-120V)/220V(220-240V)
- Gain: +18dB
- Suitable Headphone Impedance: 16ohm ~ 600ohm
- Dimensions: 26.0 x 17.7 x 15.3 cm
- Weight: 4.3 kg
6.5mm Output:
- Power: 2000mW (32ohm)
- Frequency: 10Hz ~ 80kHz (+/-0.5dB)
- SNR: 113 dB
- Crosstalk: 74dB
- THD+N: 0.05%
4.4mm/XLR Output:
- Power: 2600mW (32ohm)
- Frequency: 10Hz ~ 80kHz (+/-0.5dB)
- SNR: 113 dB
- Crosstalk: 95dB
- THD+N: 0.05%
Package Included:
- 1 x Headphone Amplifier
