Xduoo XD05 BASIC DAC Decoder DAC Headphone Amplifier Independent Digital Audio Terminal Born For PC

Xduoo XD05 BASIC DAC Decoder DAC Headphone Amplifier Independent Digital Audio Terminal Born For PC

Advantages:
- 500mW output power
- Personal sound enhancement
- Professional audio DAC
- Easy operation
- Unrestricted connections
- For XMOSXUF208
- Bluetooth 5.0 module expansion needs XD-05BL
- PCM384
- DSD256
- DXD384

Features:
- High Audio Performance for Game and Video: The portable XD05 BASIC provides high-quality and high performance for game audio and video with its compact structure. It is compatible with desktops, laptops, tablets or any smart devices, and provides enhanced audio experience for PC, PS4, XBOX and other gaming platforms
- Immersive Experience: Professional digital and analog circuits create vivid surround sound effects on headphones and active loudspeakers, giving you an upper hand to take the lead in each game
- Professional Audio Applications Supplier: HD digital audio decoding. Smooth and subtle sound with high fidelity. Built-in mainstream AK4490 DAC supports high-resolution sampling rate of PCM up to 32-bit/384kHz, and up to DSD256 for high-fidelity playback of original audio, and listeners can discover hidden details and subtleties while playing games, watching movies or listening to music
- 500mW Output Power Sufficiently Powering Headphones: The OP+BUF amplifier circuit, which has been widely praised by audiophiles, provides 500mW power and can effectively driving headphones with an impedance of 16Ω-600Ω from in-ear headphones to studio headphone, allowing you to enjoy more audio details about the treble, mid-range and bass
- Personal Sound Enhancement System: Flexibly compatible with headphones of different impedances. The headphone output adopts an on-demand design to flexibly match your headphones with the correct output power, optimizing the playback volume when you play games or listen to music, while reducing the output distortion of the computer at high volume and respond quickly without increasing background noise
- Heavy Bass and Big Sound Stage to Reproduce Bursting Sound: Hardware-accelerated bass switch brings the magnificent scenes in games and action movie store appear together with shocking sound effects. Whether 3A games or for Hollywood movies are more magnificent and immersive
- Custom Sound Effects to Meet Personal Preferences: XD05 Basic inherits the structure which you can freely replace the operational amplifiers to achieve your favorite features of sound quality
- Free music style: The different settings of 4 PCM digital recorders and 3 DSD digital filters bring different sound effects, allowing users to choose the frequency response curve, including warm and soft, transparent and precise experiences. And more flexibility to choose and experience different sound effects is offered
- Improve the Quality of Low-Bit Rate Music: Through starting the hardware SRC function, the low bit rate audio file is upgraded to 48KHz/96KHz/192KHz with its details extensively optimized, restoring the musical details and making the sound more authentic and smooth
- Strong connectivity for game and video gadgets. Support for PS4, PC, Switch, X-BOX
- Easy to understand and operate. Dual power supply for mobile and desktop device. When going out, the built-in 3.7V/4000mAh rechargeable lithium-ion polymer battery provides enough power for not less than nine hours of continuous use. The users when indoors only need to switch the power switch to EXTE to use external power supply such as power bank or USB charging, significantly extending the use time.
- Screen lighting, easy to notice: The 0.91-inchOLED display clearly shows the audio sampling rate, input interface, power and DAC filter status. The red volume control knob with backlight design can also indicate low battery status, giving you a good visual experience even in poor light conditions

Product Parameters:
- Audio processor: for AKM AK4490
- Gain: +6dB/9dB/16dB
- SNR: 115dB
- Bass boost: 0/+6dB
- Frequency Response: USB/Optical/Coaxial: 20Hz~20kHz (±0.5dB); AMP: 10Hz~60kHz (±0.5dB)
- THD+N: USB: 0.0025% at 1kHz. Coaxial: 0.0025% at 1kHz. Optical fiber: 0.0025% at 1kHz. AUX IN: 0.0018% at 1kHz
- Maximum Output Power: 500mW (32Ω load)
- Crosstalk: ≥75dB
- Charging Time: fast charging 1.2A≤5hours, slow charging 500MA≤ 11 hours
- Endurance Time: USB IN≥9H; AUX IN≥16H; coaxial/optical fiber≥12H
- USB Sampling Rate: PCM: 16-32bit/44.1-384kHz. DSD: DOP/NATIVE mode, DSD64-256. DXD: 24-32bit/352.8-384kHz
- Optical/coaxial support sampling Rate: PCM: 16-24bit/44.1-192kHz
- Applicable system: for Win7, Win8, Win10, Mac OS X, IOS, and Android system

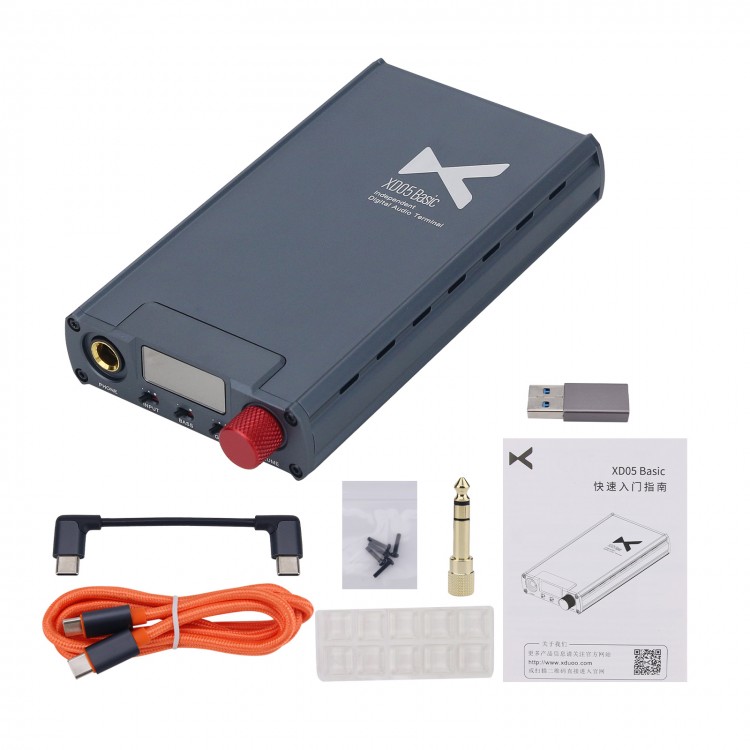

Package Included:
- 1 x XD05 BASIC
- 1 x Type-C USB Cable
- 1 x Type-C to Type-C USB OTG Cable
- 1 x USB Type A to Type C Plug
- 1 x 6.5MM to 3.5MM Jack Plug
- 10 x Silicone Feet Pads
- 1 x User Manual

Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
