XE3LV400_NDI Encoder HDMI Loop-Out Video Encoder HDMI To NDI Video Card 1920x1080 for Livestreaming
Features:
- HDMI loop-out encoder supports 1080P60 HDMI video signal input loop out

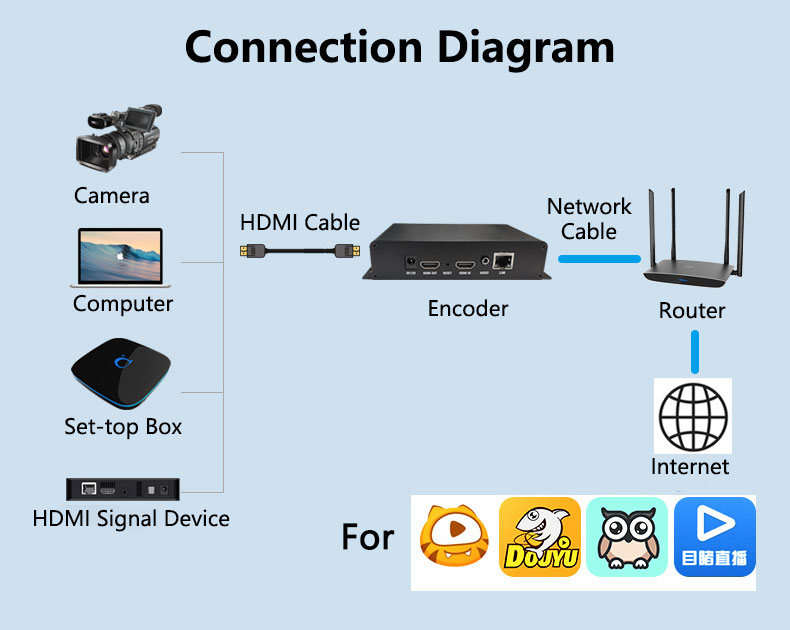

- Support LAN, WAN live broadcast, NVR recording
- Support for NDI/RTMP/RTSP/TS/HLS/FLV/RTP/UDP/SRT protocol
- NDI official authorization: The NDI protocol transmits high-quality video in a high-quality, low-latency, and frame-accurate manner. This product comes with HDMI to NDI protocol, no need to purchase authorization separately
- Functional characteristics: Support 1080P input and output. Primary and secondary four stream output, coding type H.265/H.264. Support multi-protocol, high-speed loop-out, low-latency, hardware acquisition. 7*24 hours stable work
- Support RTMP/RTMPS/SRT protocol to push live broadcast to major mainstream platforms. Built-in RTMP/SRT server. Default streaming address: rtmp://192.168.1.168/live/0 srt://192.168.1.168:9000

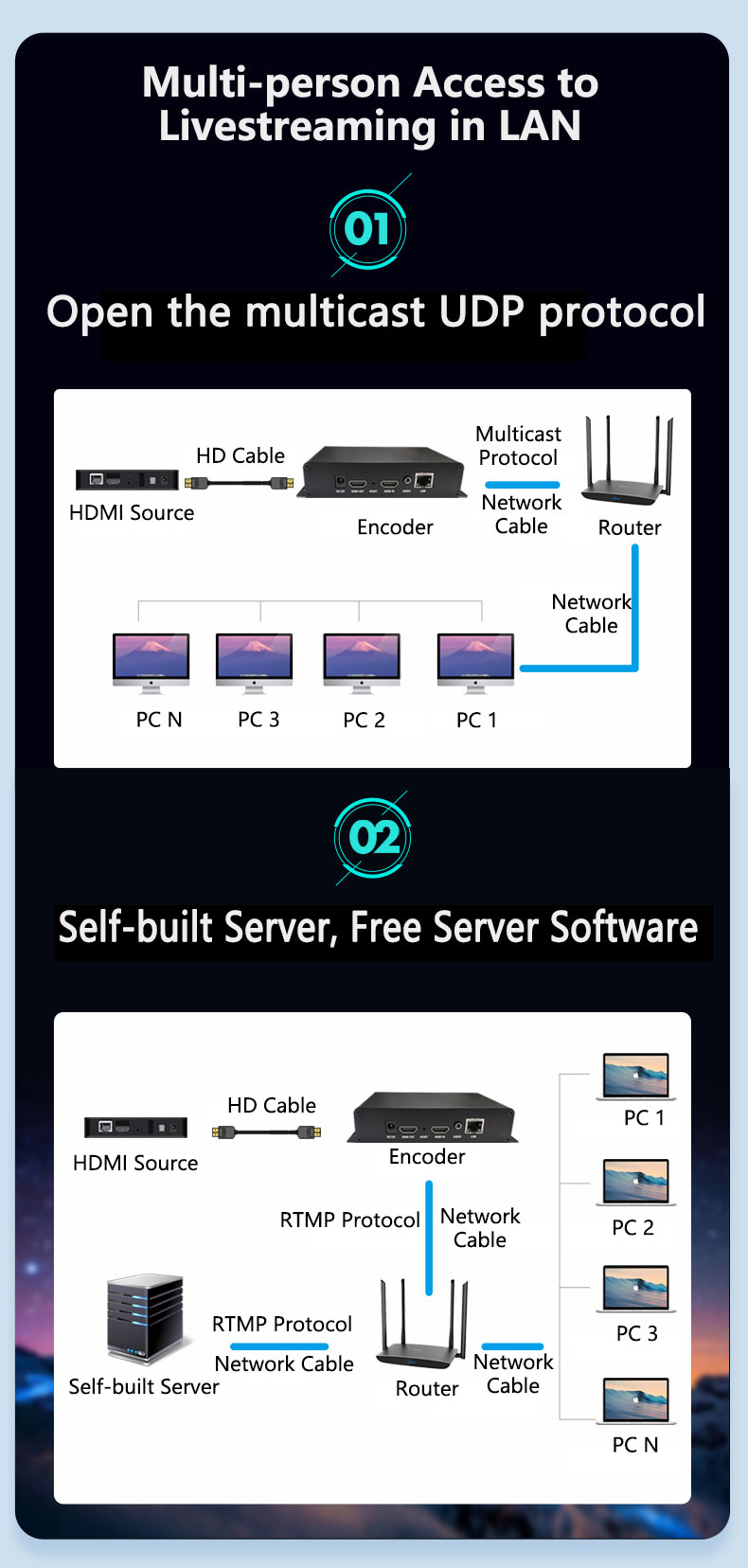

- The method for multiple people on the LAN to access the live broadcast: Open the multicast UDP protocol. Self-built server, free to provide server software
- Low latency: Collect computer desktop and play private PTE protocol, the latency is about 80-200 milliseconds
- OSD display: LOGO, time, text, scroll text can be added to multiple areas in the video screen

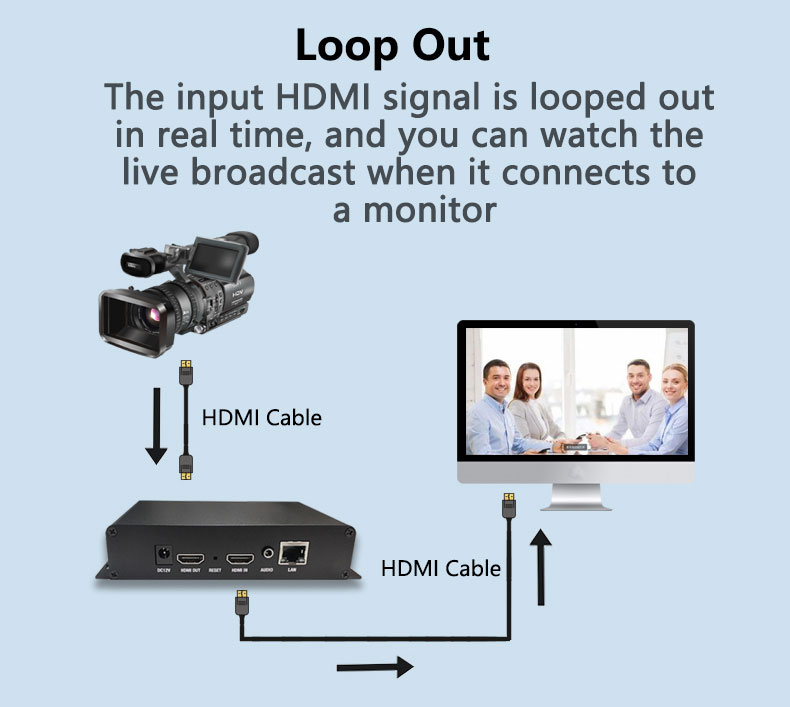

- Loop out: The input HDMI signal is looped out in real time, and you can watch the live broadcast when it connects to a monitor

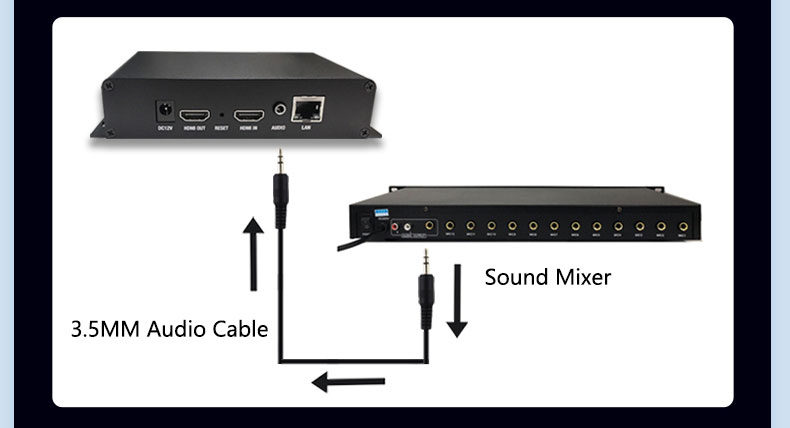

- Can connect to 3.5mm external audio or use HDMI audio. Audio coding method: AAC/AAC+/AAC++/MP3/MP2/AC3. Channel: Stereo/left channel/right channel. For ONVIF equipment: RTSP stream compatible with G711A encoding
Specifications:
- Product name: HDMI H.265 network video encoder
- Encoding format: H.265/H.264/MJPEG
- Encoding frame rate: 5-60 frames
- Audio and video input: 1ch HDMI, 1ch external audio
- Maximum resolution: 1920x1080
- Network port: Gigabit
- Power supply: 12VDC 2A
- Power consumption: 5W
- Weight: 284G
Package Included:

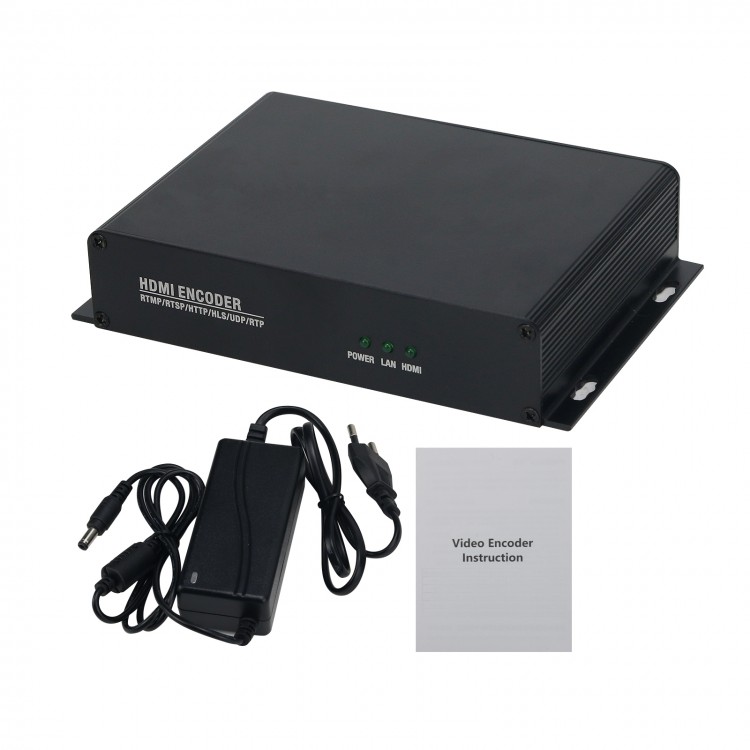

- 1 x HDMI To NDI Encoder
Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
