XE4D 4 Channel HDMI Encoder High Performance Live Streaming IPTV Encoder 4K 2160P Support for H.265 and H.264

XE4D 4 Channel HDMI Encoder High Performance Live Streaming IPTV Encoder 4K 2160P Support for H.265 and H.264

Features:
- Support simultaneous HDMI 1 and HDMI 2 input 3840 x 2160P 30fps UHD picture
- Support simultaneous 4 channel HDMI input 1920 x 1080P 60fps HD picture

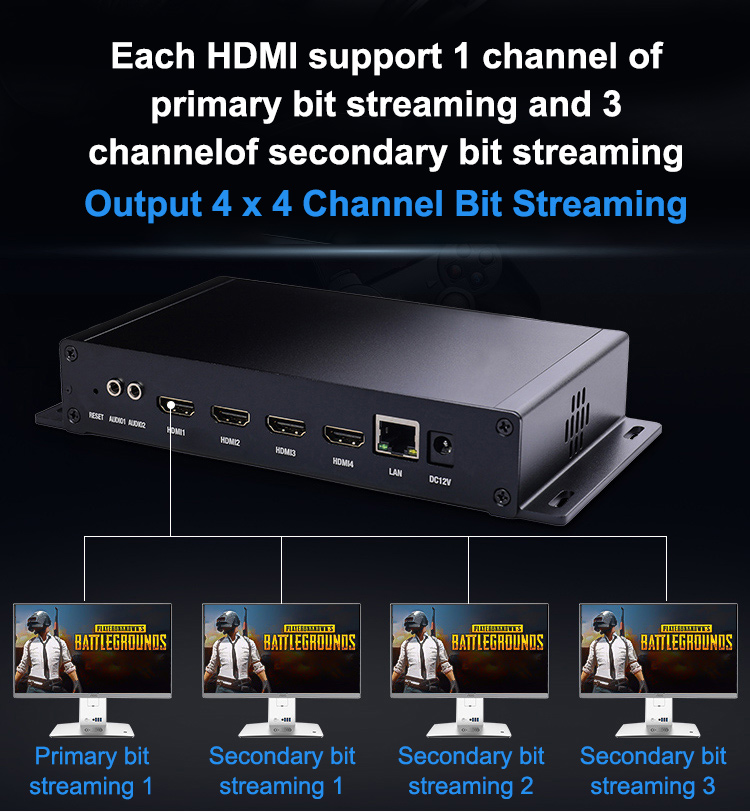

- Each HDMI support 1 channel of primary bit streaming and 3 channel of secondary bit streaming

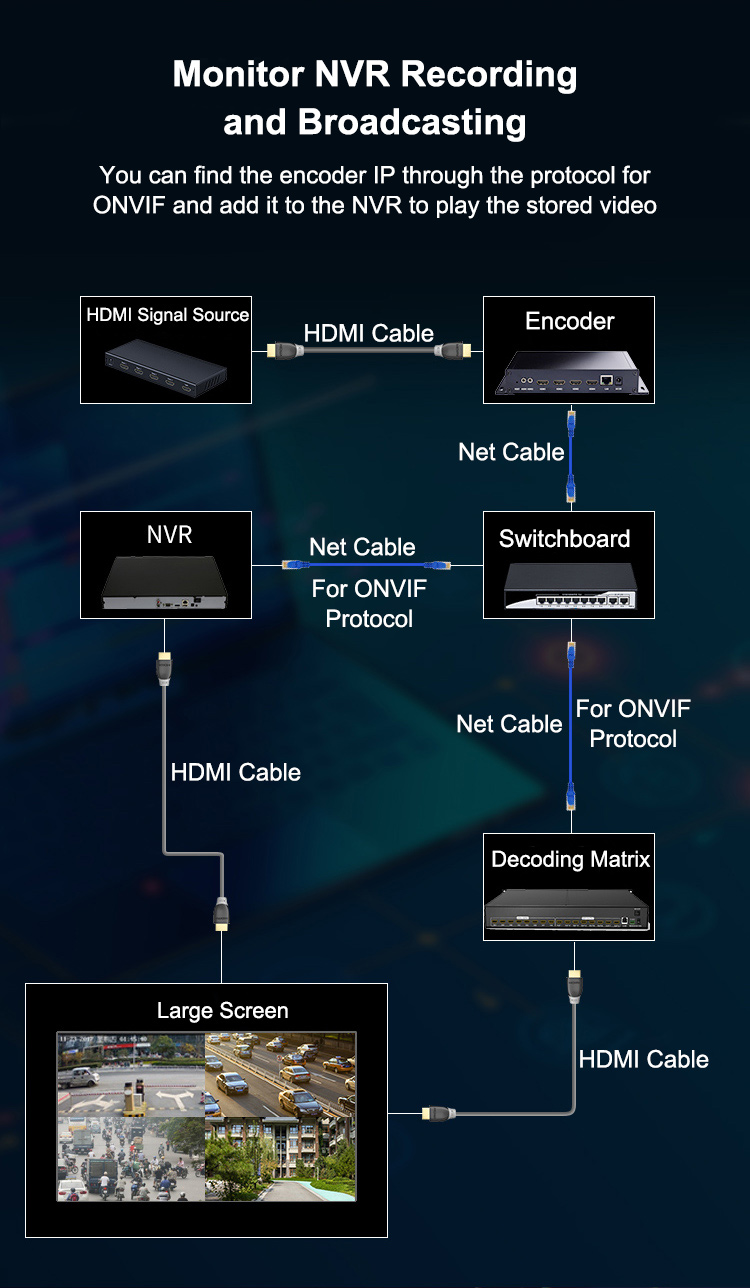

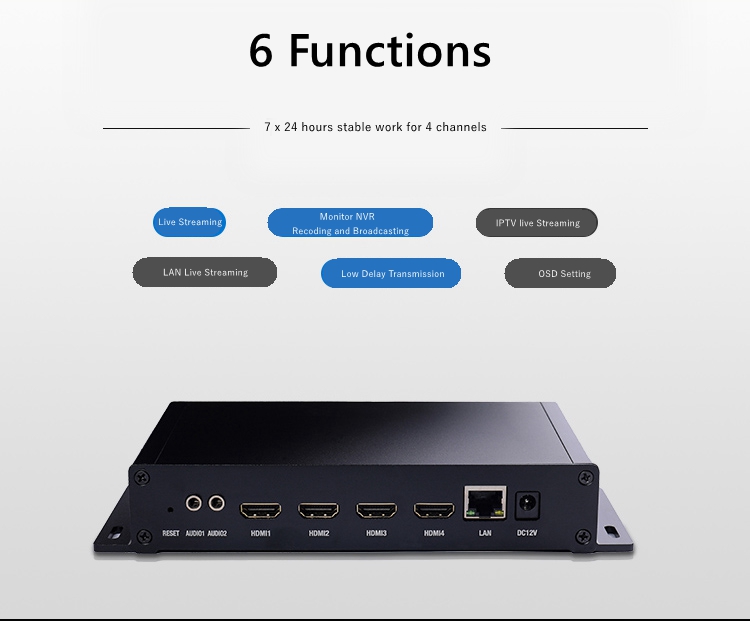

- Monitor NVR recording and broadcasting function
- IPTV live streaming function
- LAN live streaming function
- Low delay transmission
- OSD setting function
- Collecting game computer images for live streaming without affecting the speed of the gaming PC
- Directly replace another computer to complete the live broadcast, save money, space and power

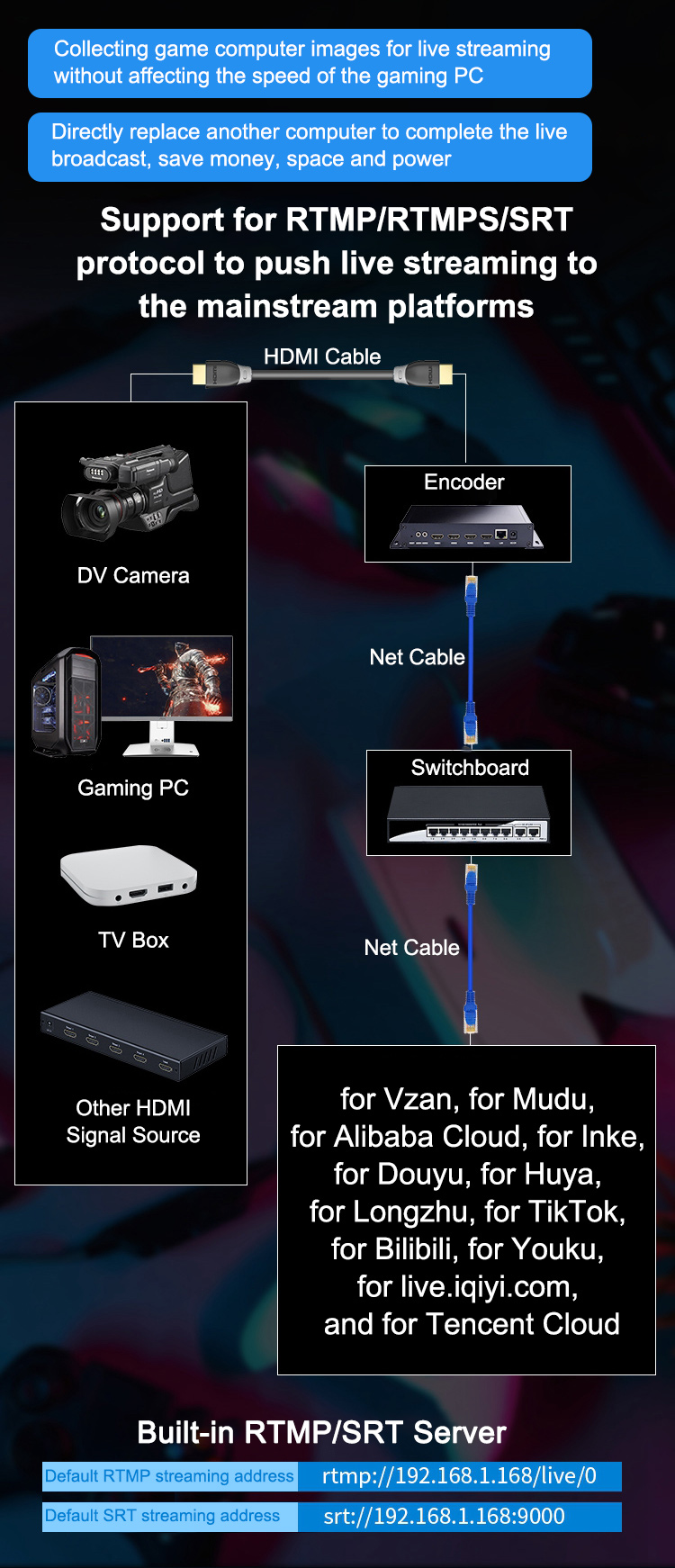

- Support for RTMP/RTMPS/SRT protocol to push live streaming to the mainstream platforms,  including for Vzan, for Mudu, for Alibaba Cloud, for Inke, for Douyu, for Huya, for Longzhu, for TikTok, for Bilibili, for Youku, for live.iqiyi.com, and for Tencent Cloud
- Built-in RTMP/SRT server. Default RTMP streaming address rtmp://192.168.1.168/live/0; Default SRT streaming address srt://192.168.1.168:9000
- You can find the encoder IP through the protocol for ONVIF and add it to the NVR to play the stored video.

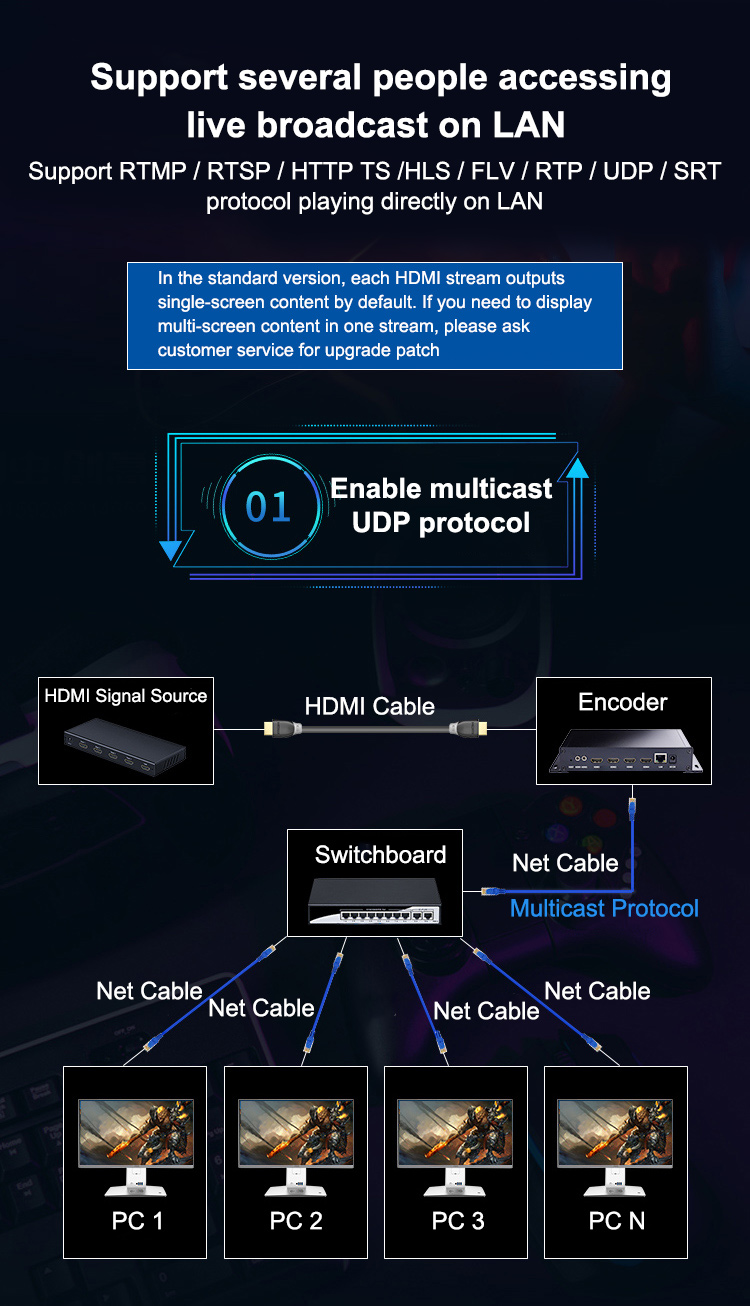

- Support several people accessing live broadcast on LAN and RTMP / RTSP / HTTP TS /HLS / FLV / RTP / UDP / SRT protocol playing directly on LAN
- In the standard version, each HDMI stream outputs single-screen content by default. If you need to display multi-screen content in one stream, please ask customer service for upgrade patch
- Enable multicast UDP

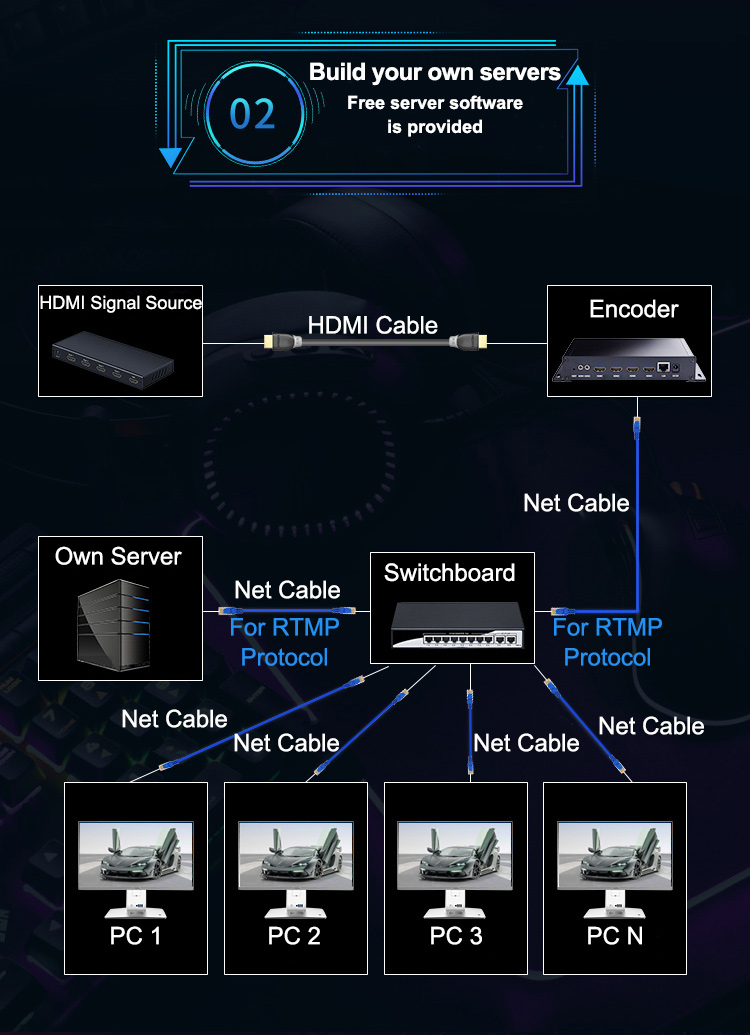

- Free server software is provided, you can build your own servers
- Low latency. Collect computer desktop, play PTE protocol, and the delay is 80-200ms. The PTE protocol is a proprietary protocol developed independently, featuring low latency
- OSD display. LOGO images, text, scrolling text and time can be added to multiple areas in the video screen

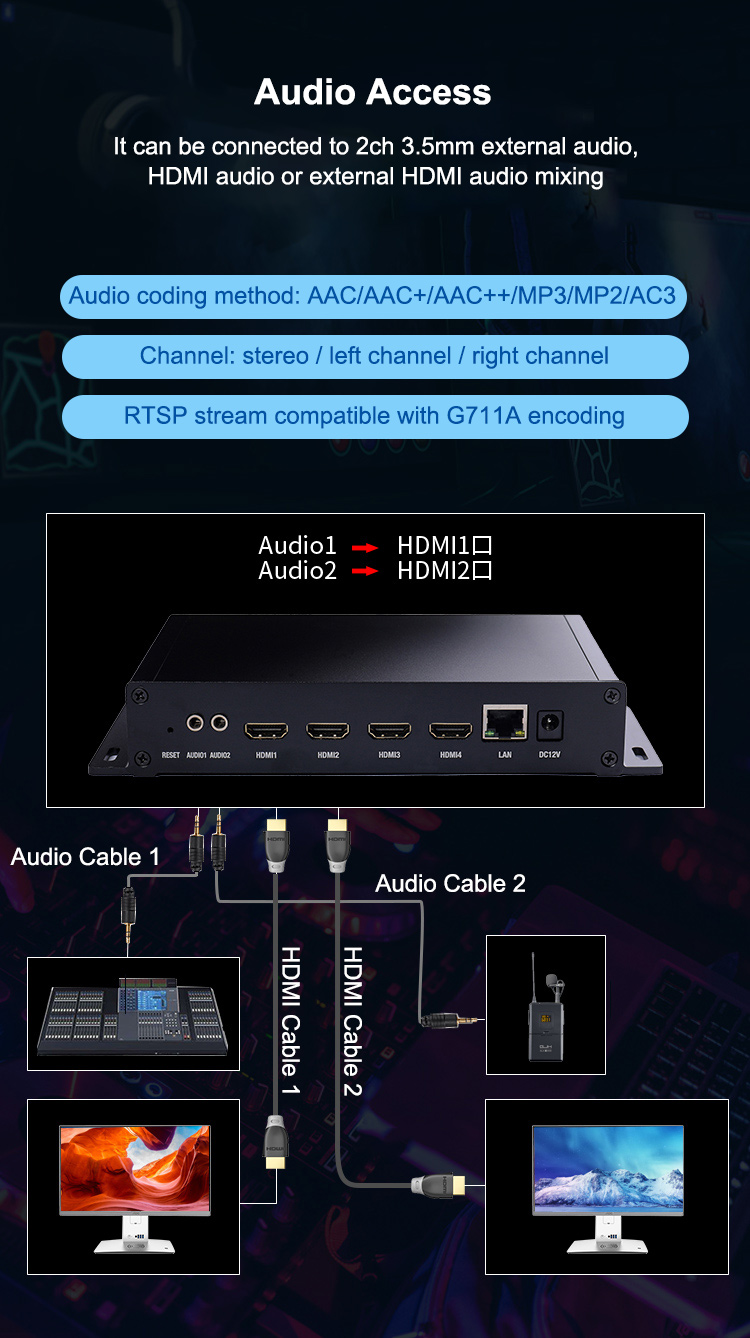

- Audio access. It can be connected to 2ch 3.5mm external audio, HDMI audio or external HDMI audio mixing
- Audio coding method: AAC/AAC+/AAC++/MP3/MP2/AC3
- Channel: stereo / left channel / right channel
- RTSP stream compatible with G711A encoding

Specification:
Audio and video input:
- Video input: 4 channel HDMI
- Audio input: 4 channel HDMI built-in audio; 2 channel 3.5mm external audio

Video encoding:
- Encoding type: H.265/H.264/MJPEG
- H.264 level: Baseline / Main / High optional
- Encoding frame rate: 5-60 adjustable
- Key frame interval: 5-300 frames adjustable
- Bit rate: 32-32000kbit adjustable
- Resolution after encoding: 3840 x 2160 / 1920 x 1080 / 1680 x 1056 / 1280 x 720 / 1024 x 576 / 850 x 480 / 720 x 576 / 720 x 540 / 720 x 480 / 720 x 404 / 704 x 576 / 640 x 480 / 640 x 360 / 608 x 448 / 544 x 480 / 480 x 480 / 480 x 384 / 480 x 360 / 480 x 320 / 480 x 272 / 480 x 270 / 400 x 320 / 400 x 224 / 352 x 480 / 352 x 228 / 320 x 256 / 320 x 240 / 320 x 180 / 240 x 180 / same as input resolution
- Stream control: CBR/VBR optional
- Streaming: Support RTMP/RTSP/HTTP TS/HTTP/FLV/HLS/SRT/UDP multicast/RTP multicast

Audio and video input:
- Network: Gigabit
- Configuration management: configuration management through WEB
- For ONVIF: Support for ONVIF to find and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: <7W
- Working temperature: -20℃ to 60℃
- Working humidity: <90%, no condensation
- Dimensions: 20.5 x 10.5 x 3.5cm
- Weight: 498g

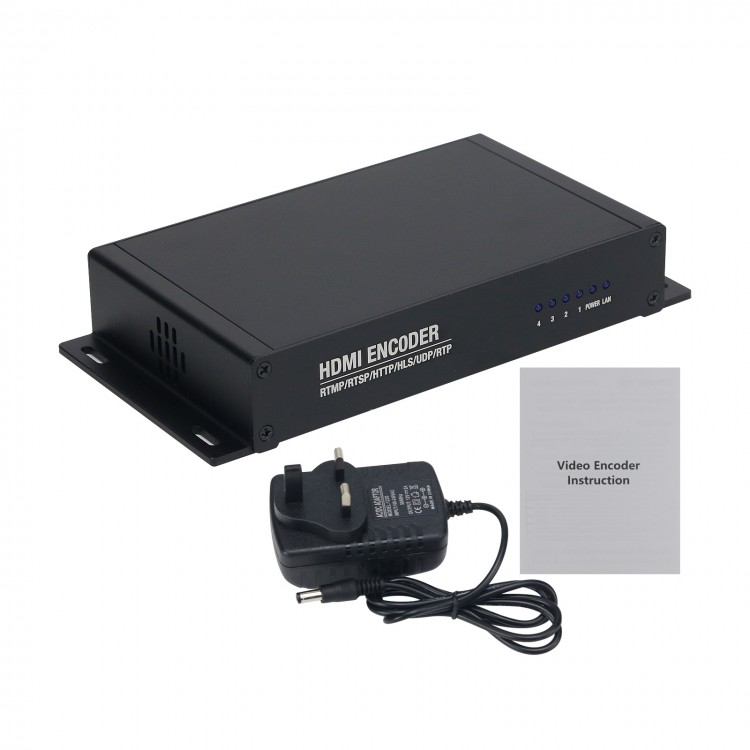

Package Included:
- 1 x HDMI Encoder

Note:
- It supports H.265 and H.264.
