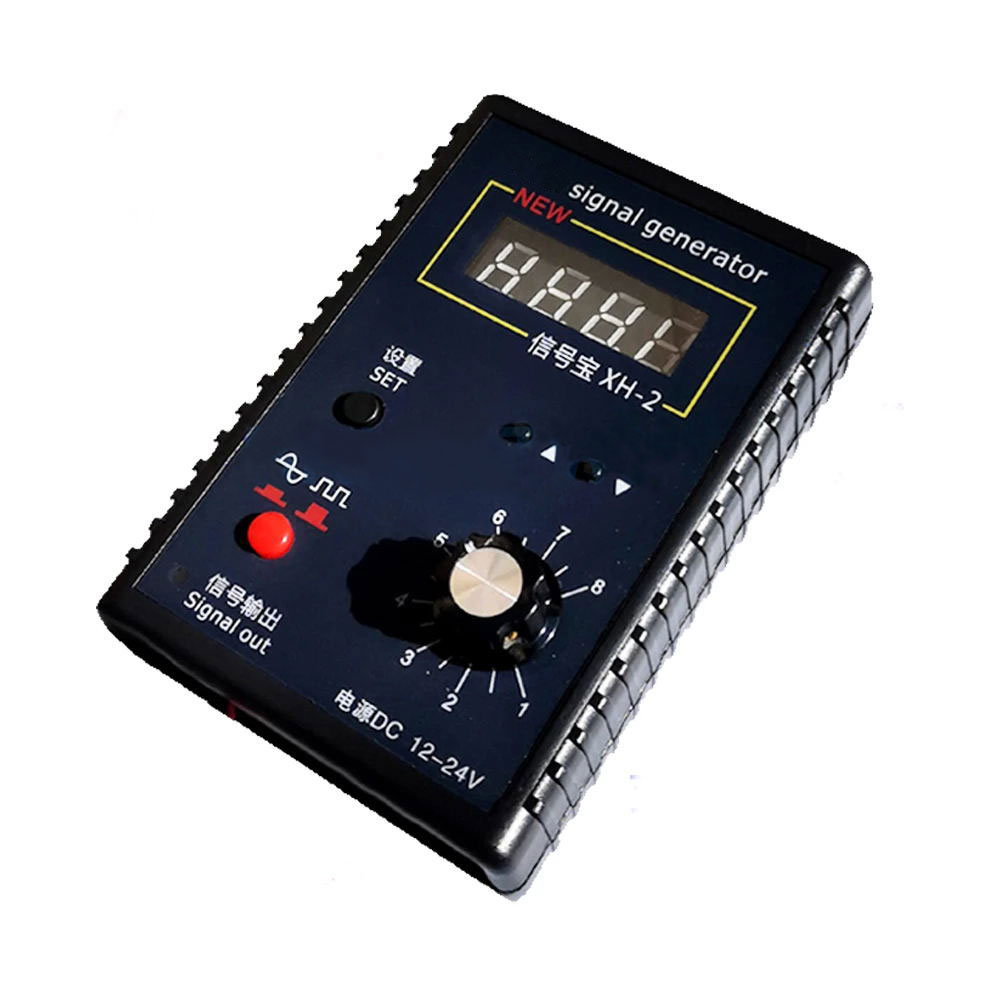

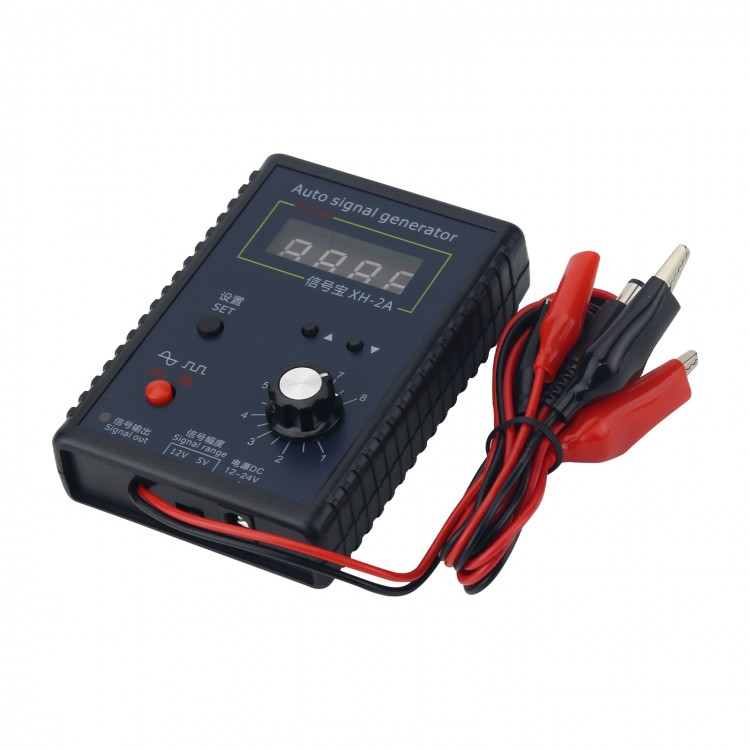

XH-2 Automotive Sensor Simulator Tester 2-8000Hz Car Signal Generator Signal Simulator Vehicle Tool

XH-2 Automotive Sensor Simulator Tester 2-8000Hz Car Signal Generator Signal Simulator Vehicle Tool

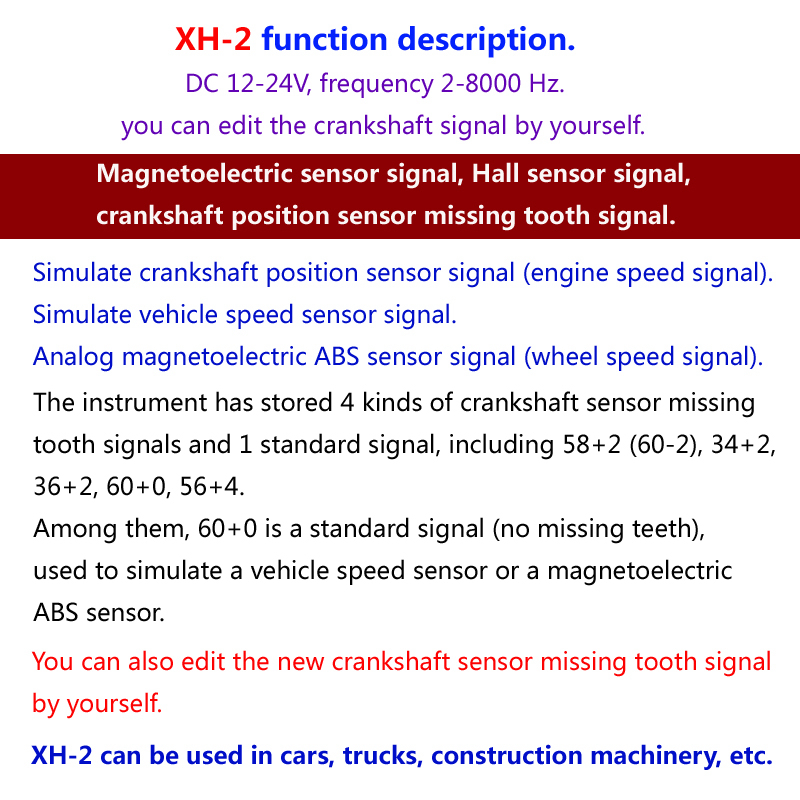

Main Functions:
- Crankshaft position sensor signal simulation output: including 9 types of gear missing teeth signal: 58+2 (60-2), 58+1, 57+2, 57+1, 37+1, 36+2, 35+1, 34+2, and 22+1
- One type of standard 60+0 signal simulation output
- Magnetoelectric signal or Hall signal output. Output amplitude/Peak volt equals to power supply input, can be adjusted by adding potentiometer

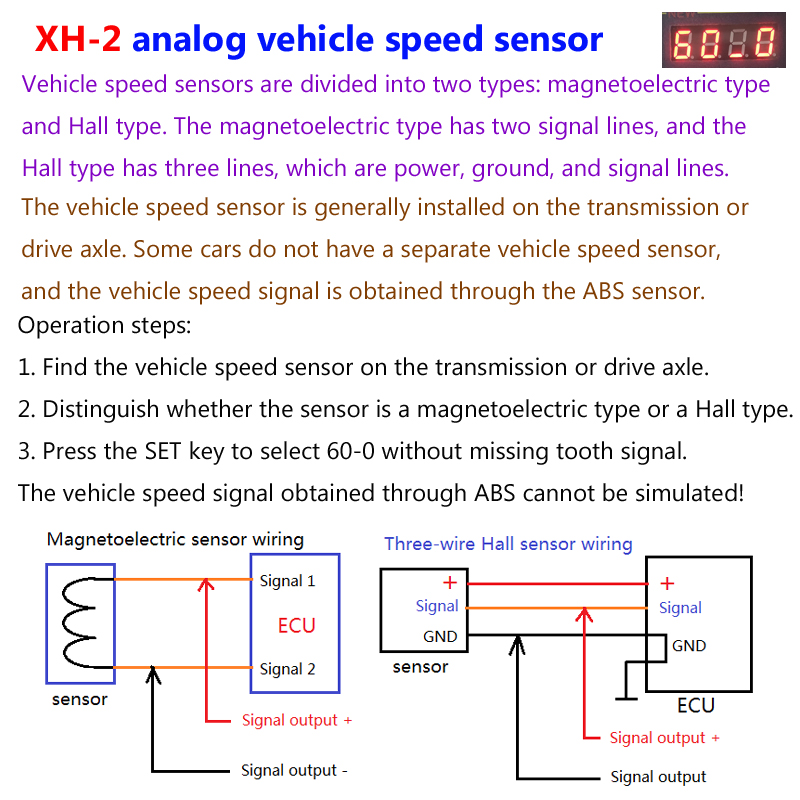

- Use 60+0 signal to simulate vehicle speed sensor signal output. Camshaft sensor signal simulation
- Use 60+0 signal to drive odometer or test odometer. Use it to drive car motor PC board or speed meter

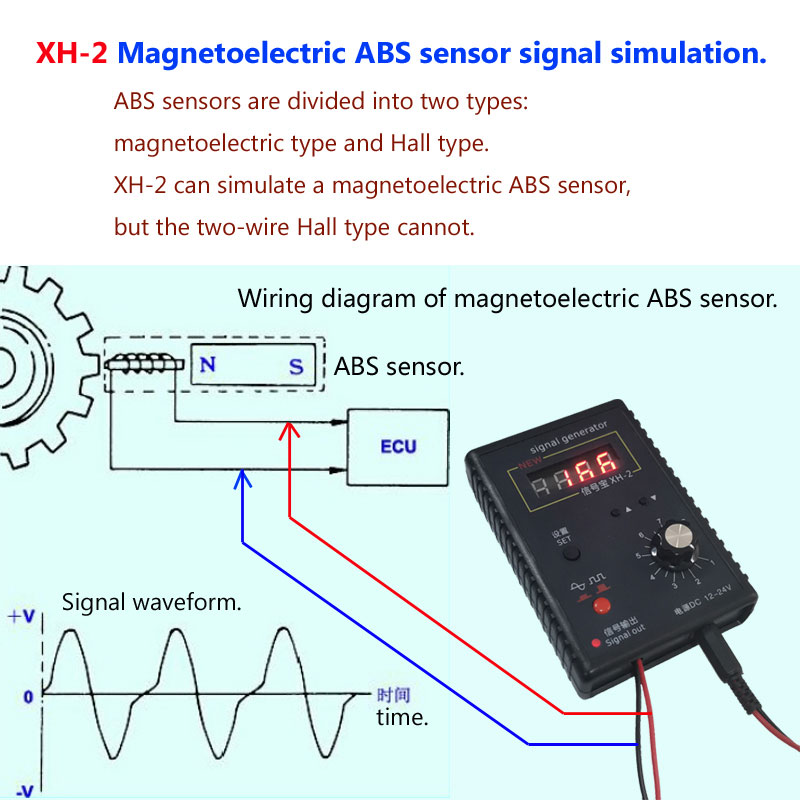

- ABS sensor, optical sensor signal simulation. Use it to analyze and inspect sensor error, car ECU and meters error

Output Parameters:

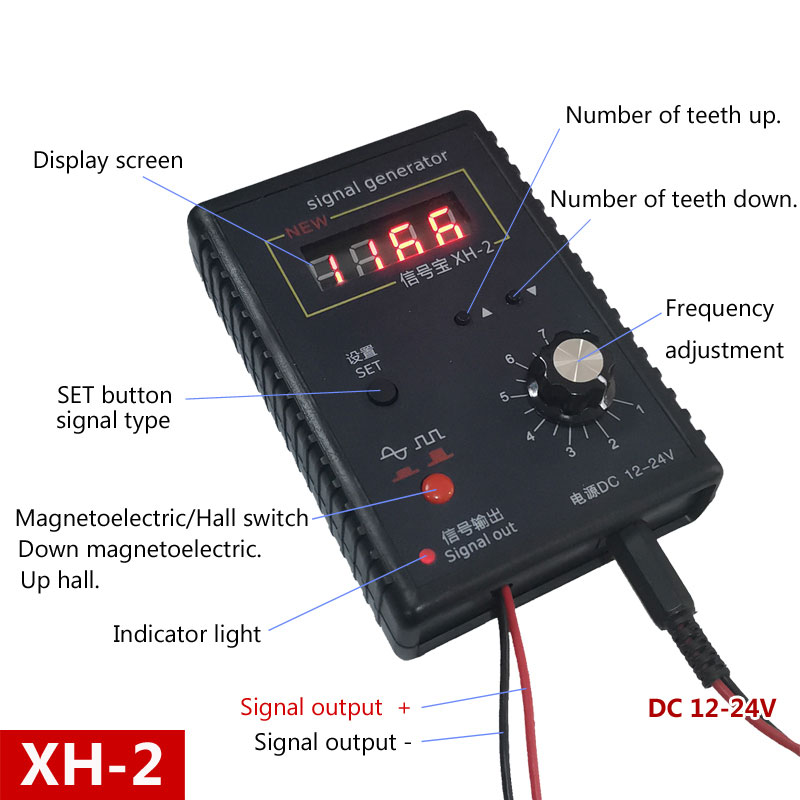

- All types of signal have been embedded inside the signal generator, and can be displayed in LED screen for selection reference, no need to download software

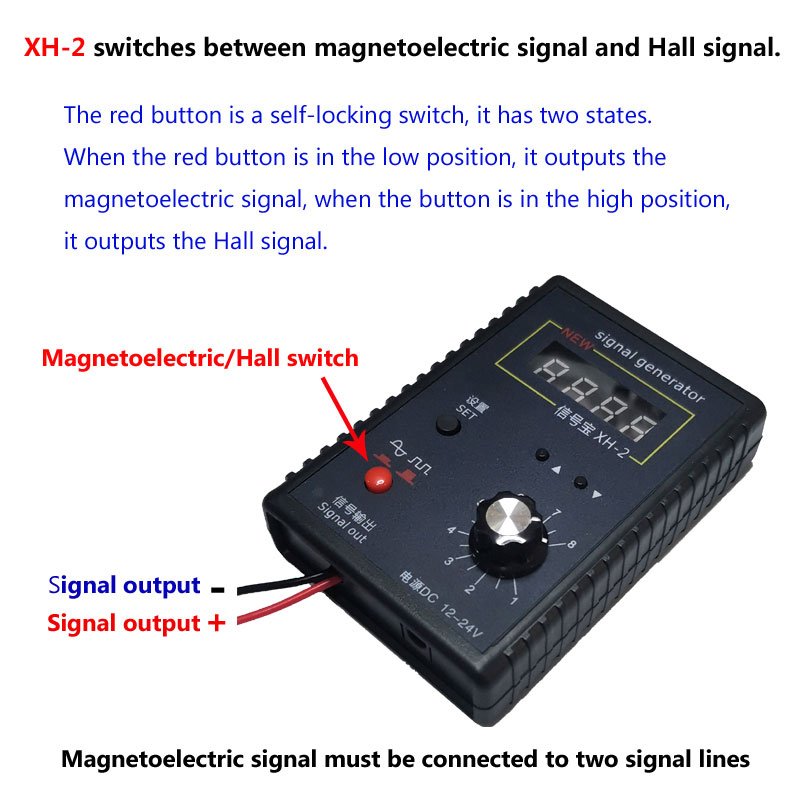

- One button switch between magnetoelectric signal and Hall signal, convenient to use

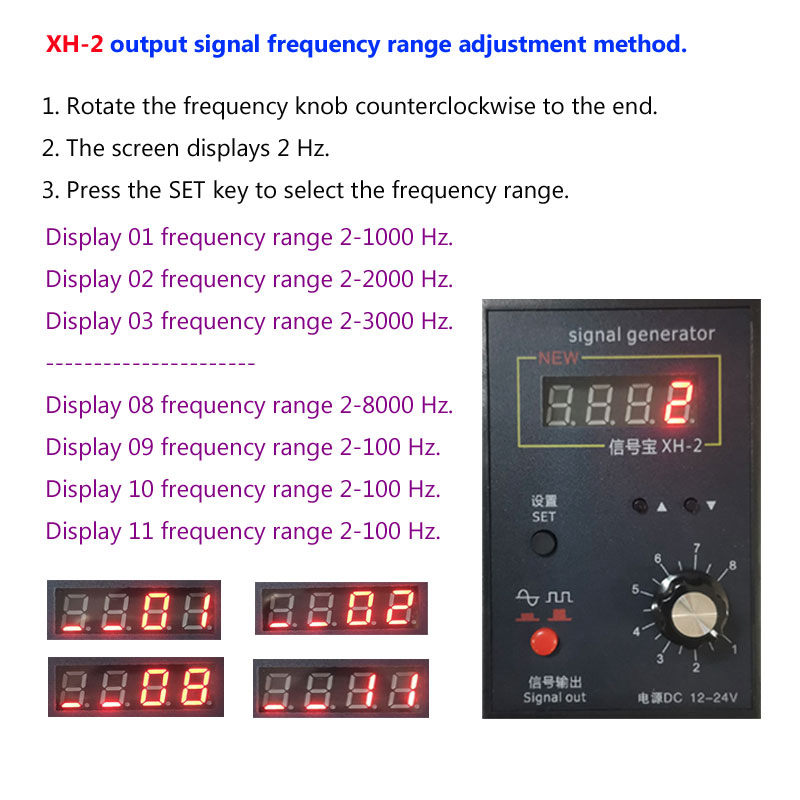

- 9 ranges of frequency selection, accurate frequency output

9 Frequency Ranges:
* 01 refers to 2Hz-1KHz frequency range
* 02 refers to 2Hz-2KHz frequency range
* 03 refers to 2Hz-3KHz frequency range
* 04 refers to 2Hz-4KHz frequency range
* 05 refers to 2Hz-5KHz frequency range
* 06 refers to 2Hz-6KHz frequency range
* 07 refers to 2Hz-7KHz frequency range
* 08 refers to 2Hz-8KHz frequency range
* 09 refers to 2Hz-100Hz frequency range

Package Included:
- 1 x Set of Automotive Signal Generator

Note:
- Batteries are not included in the package.

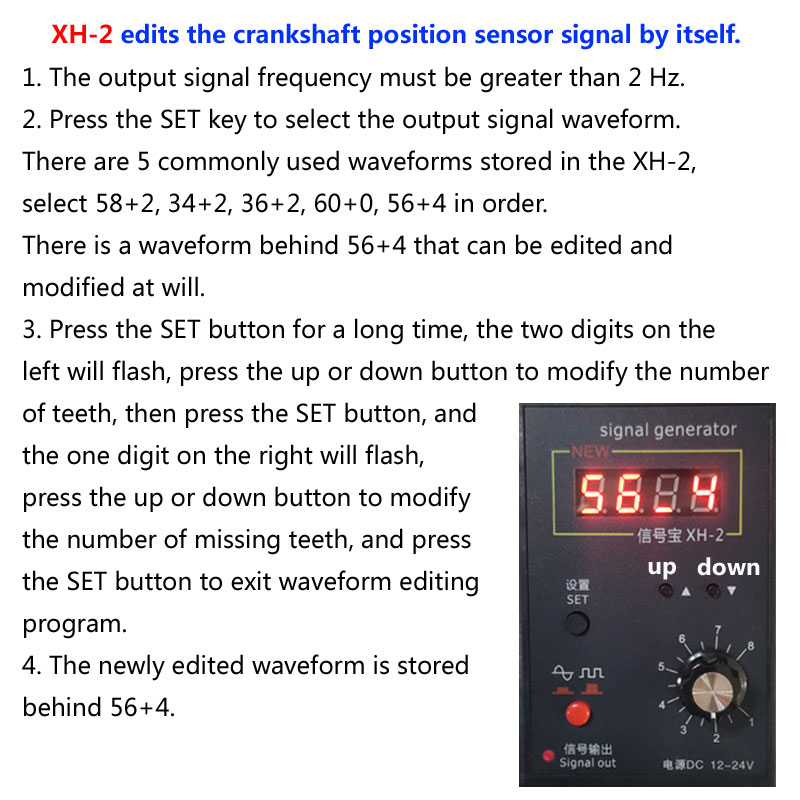

- When the signal generator output is higher than 2HZ, press SET button, it can output 10 types of signal, 60-0 represents standard magnetoelectric or Hall signal output, the other 9 types of signal are magnetoelectric or Hall gear missing teeth signal (crankshaft position sensor signal).
- Users can use multimeter to check output signal type. Use multimeter (20V measurement) to test the signal generator output, it output is about 5.8V, its output is Hall signal. If output is 0V, the output signal type is Magnetoelectric signal.

About Operating Power Supply Input:
- The operating power supply of that signal generator is 12VDC, user can use the 12V power supply for the battery (not included) of the car, or user any other 12V regulated switching power supply or AC/DC power adapter.
- If Battery (not included) or power supply is lower than 12VDC, this signal generator LED is flashing and cannot work normally. Please ensure that the car battery (not included) or power supply is 12Vdc.

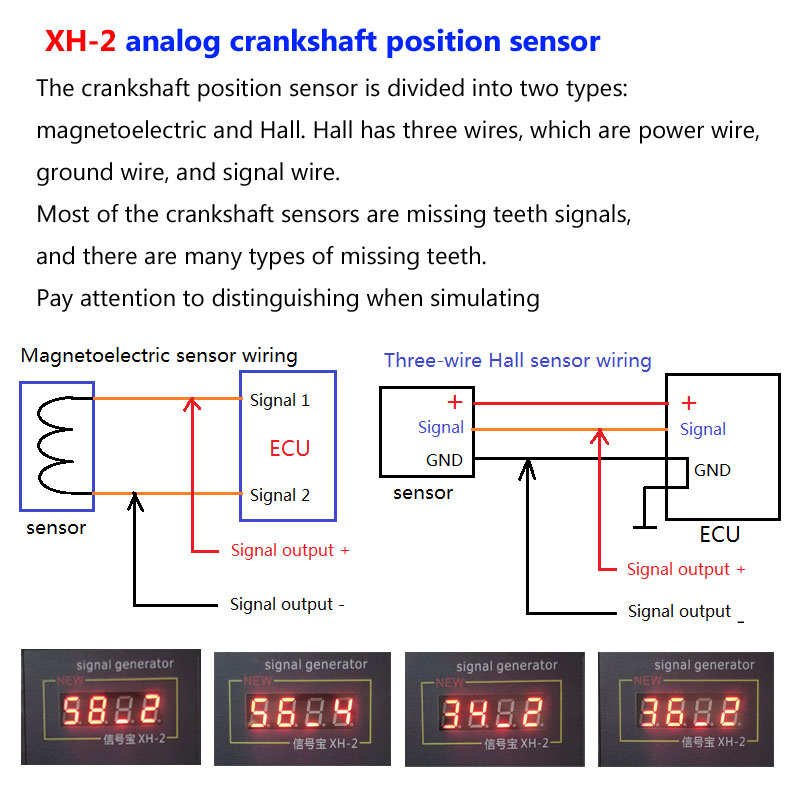

About Signal Output GND:
- If use Hall signal output, signal output GND and the operating power supply GND are in common ground. If use the 12V operating power supply from the battery (not included) of the car, users only need to connect Signal output positive wire.
- If use magnetoelectric signal output, signal output GND and the operating power supply GND are NOT in common ground, users must correctly connect both the output signal positive wire and output signal negative GND wire, thus the signal generator can operate normally.
