XH-A126 High Power Amplifier Board Bluetooth 5.0 Digital Power Amplifier TDA7498E 160Wx2

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.54
  • Price in reward points: 235 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.07 $22.60 $21.89 $20.95 Contact US
Quantity:

XH-A126 High Power Amplifier Board Bluetooth 5.0 Digital Power Amplifier TDA7498E 160Wx2

Features:

- Two-channel output 160Wx2
- High power Bluetooth amplifier board
- Support remote controller
- Support TF card and AUX input

Specifications:
- Product name: Bluetooth digital power amplifier board
- Bluetooth chip: Bluetooth 5.0
- Chip type: digital chip
- Chip model: TDA7498E
- Power supply voltage: DC12-24V
- Output impedance: 4~8Ω
- Number of channels: two channels
- Output power: 160W*2

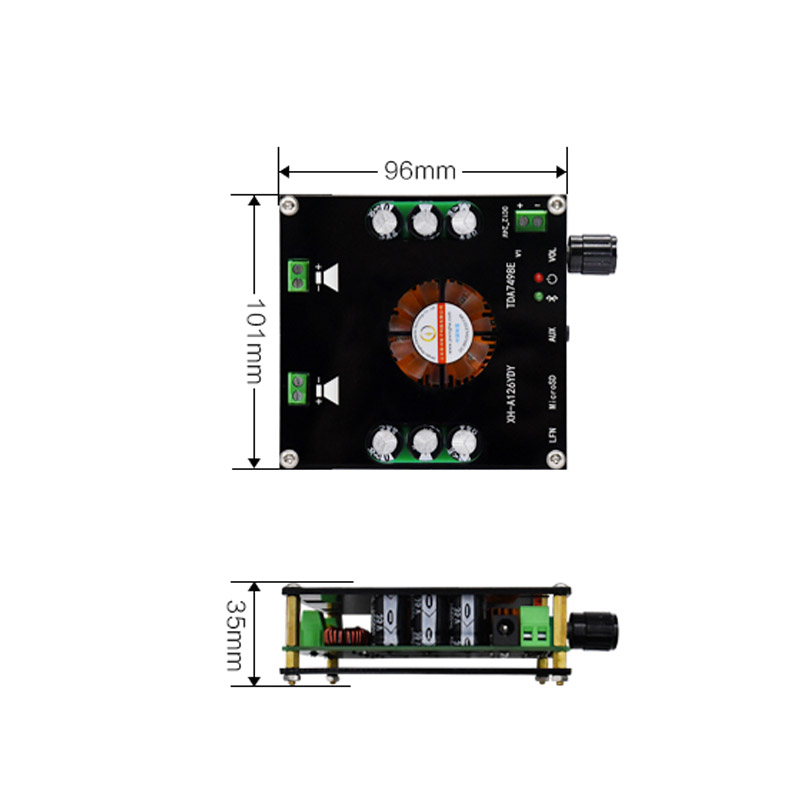

- Appearance size: 96*101*35mm
- Product weight: 188g

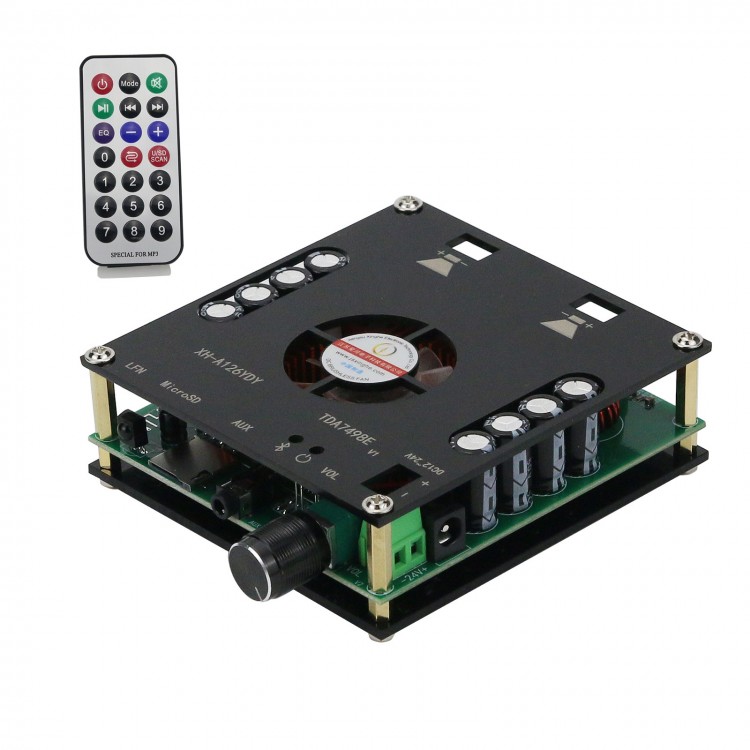

Package Included:
- 1 x Power Amplifier Board
- 1 x Remote Controller

Note:
- It is assembled.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!

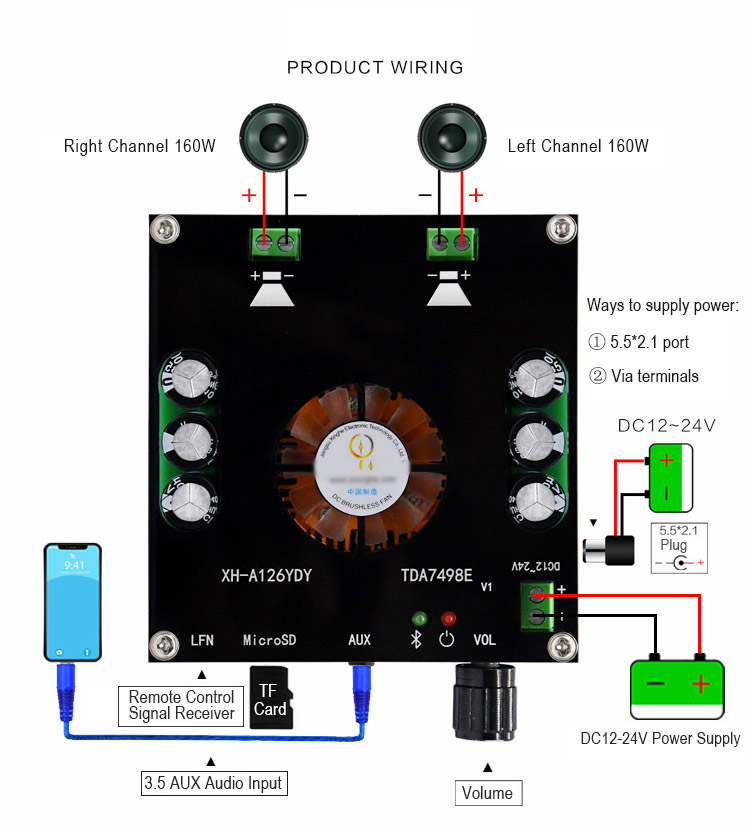

Bluetooth Connection:
1. Power on: Enter Bluetooth and wait for connection (Bluetooth beep)
2. Turn on cellphone's Bluetooth to search and connect to Hazy Audio (Bluetooth name of the amplifier board)
3. The Bluetooth connection is successful (Bluetooth beep), you can play music now

Application Scenarios:
It is suitable for dual-channel 160W speakers, using TDA7498E power amplifier chip for efficient class D operation, superior sound quality and performance, and mainly used in home theaters and active speakers.

Common Problems:
1. When it turns up, the sound will freeze, intermittently. After it turns down, it can play normally.
Answer: Reason 1: The power of power supply is too small. The total output power of this power amplifier board is 320W. When choosing a power supply, it is recommended to select a voltage of 24V and a current of about 13A. Reason 2: If there is no problem with power supply, it may be that the power of the speaker is too small. For example, when the output is 100W, but a 25W speaker is connected, it will freeze when it turns up, and the speaker may be burned out.

2. Bluetooth cannot be connected.
Answer: Users turn on the Bluetooth of mobile phone but cannot find the Bluetooth of the power amplifier board. The same situation occurs when using another mobile phone. There may be a problem with the bluetooth module, you can contact customer service to deal with it.

3. There is too much noise when playing music, or there is noise level when not playing music.
Answer: The function of the power amplifier board is to amplify signals. The main source of noise is that the radio clutter in the environment is amplified by the power amplifier board, so as long as the power amplifier board is running, there will be noise. When choosing an audio cable, try to use the one with shielding function. It is also possible that the sound source is noisy. Normal mobile phones and MP3 have no noise. Most of them are on some old front-end boards, which are not compatible with our company's power amplifier boards. Audio isolators or coupling capacitors can be added to remove them.
