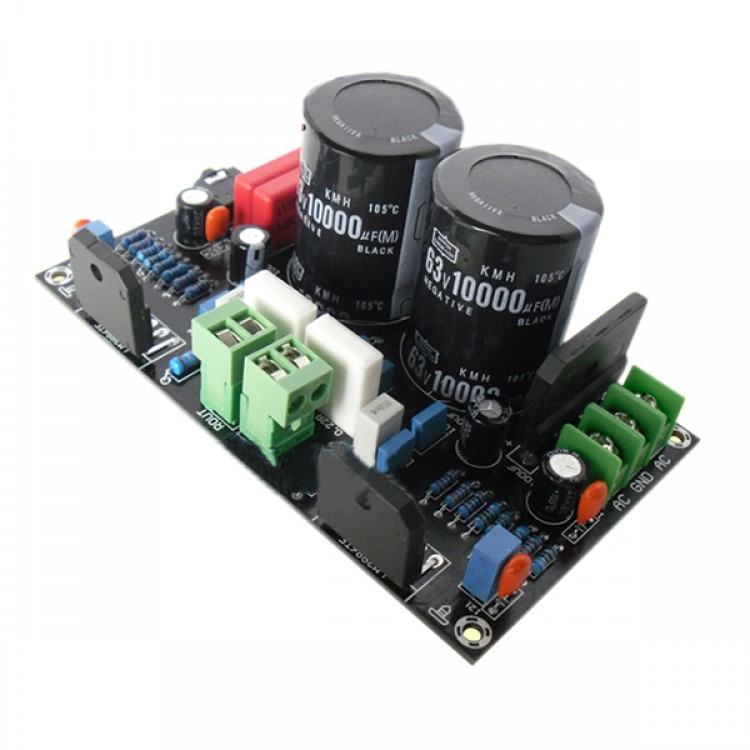

XH-M154 LM3886TF Fever Super Large Power Amplifier Assembled Board WIMA 2.2UF Capacitor 68+68W
Description:
- LM3886TF audio amplifier board
- Specs: GF1091
- Working mode: B type
- Chip: LM3886TF
- Power supply range: AC dual 12-32V 100W above
- Recommended voltage: AC dual 24-28V 100W above
- Size: 118*67*43mm
- Cooling fin is not included
- Output power: 68W+68W
- Dual channel
- Static current: 50-80MA
- SNR: 93%
- Recommending soundbox 40-700W
- Input resistance: 80K-100K
- Output resistance: 4-16 ohm
- Net weight: 160g
- Power supply range: AC12-±42V
