XH-M560 High Power Amplifier Board TPA3116D2 Bluetooth 2.1 Digital Power Amp For U Disk TF Card
Description:

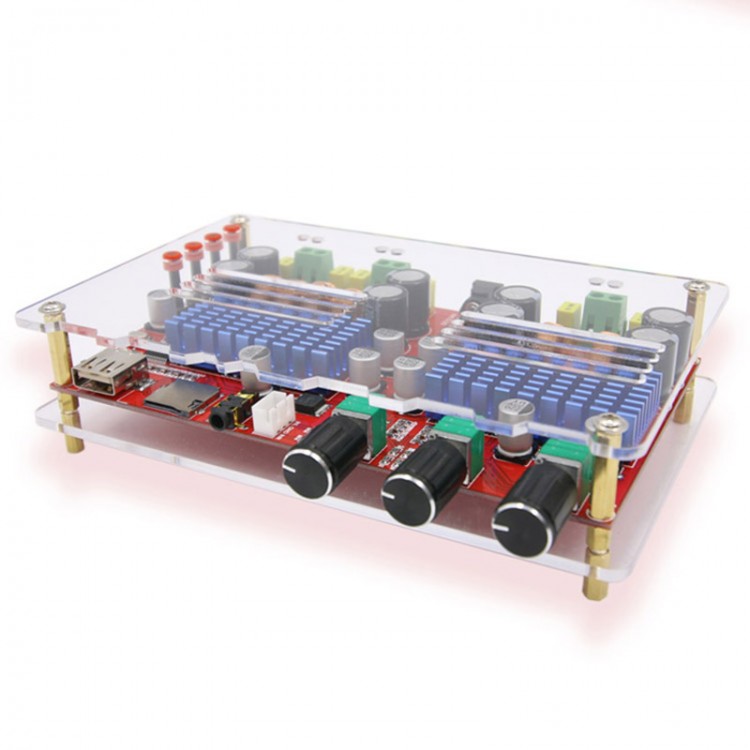

It boasts a crystal shell, beautiful and generous appearance. Using original TPA3116D2 chip, the left and right channels output 60W, and the subwoofer output 100W (the frequency of the subwoofer can be adjusted. Through the frequency knob, it can be adjusted to the subwoofer or the normal channel)
It supports Bluetooth, U disk, TF card, AUX, 3p port multiple audio input. The left and right channels and the subwoofer have onboard dynamic LEDs. The whole machine adopts for Rubycon and other high-end capacitors, the sound is pure and nice to listen to.
Parameters:
- Product Name: Digital Audio Power Amplifier Board
- Product model: XH-M560
- Input voltage: DC12-24V (24V recommended)
- Input current: >5A
- Input impedance: 1kΩ
- Input signal: 1.8V
- Number of channels: 2.1 channels
- Magnification: 45 times
- Output power: 60W+60W+100W
- Output impedance: 4-8 ohms for left and right channels
- Work type: Class D
- Appearance size: 200*100*42mm (Excluding the size of knob protruding part)
- Product net weight: 300g
Package Included:
- 1 x Power Amplifier Board
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!

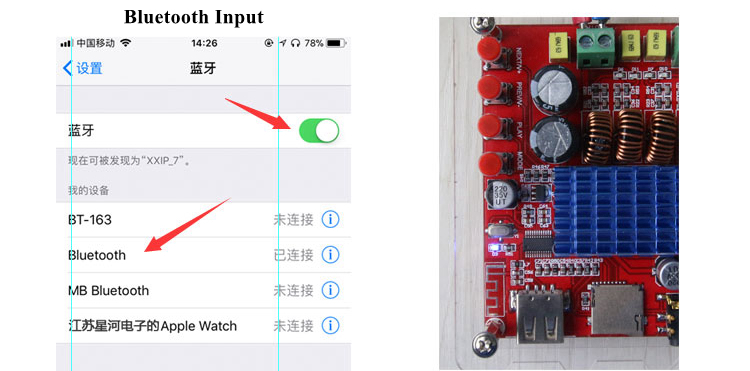

1. Bluetooth input
Turn on the voltage of the power amplifier board, then open Bluetooth settings of your cellphone, search for Bluetooth and connect to it. Open phone music player to play music
Attention: When the blue light flashes after the power amplifier board is powered on, it means that it is waiting for connection. After the connection is successful, the blue light is always on!

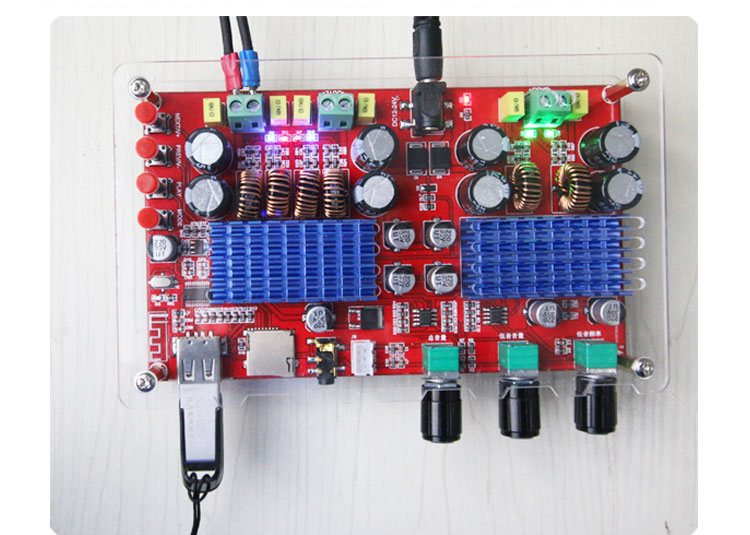

2. U disk or TF card input
You can copy songs in mp3 format into a U disk or TF card, and then insert them into the USB port or TF card slot of the board to play directly

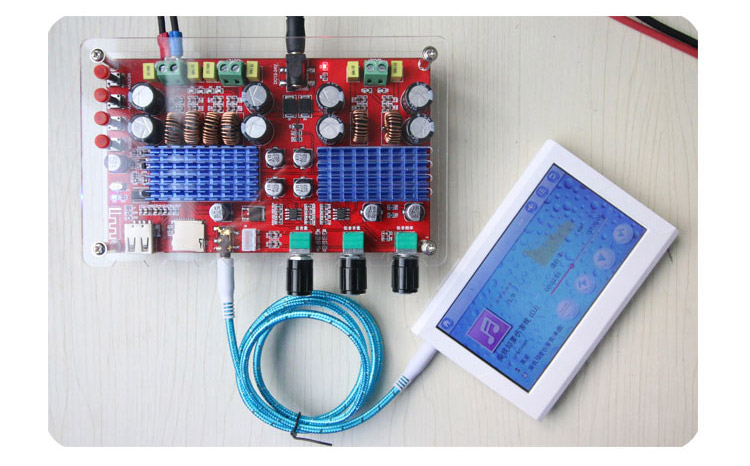

3. Support AUX or small 3P terminal input

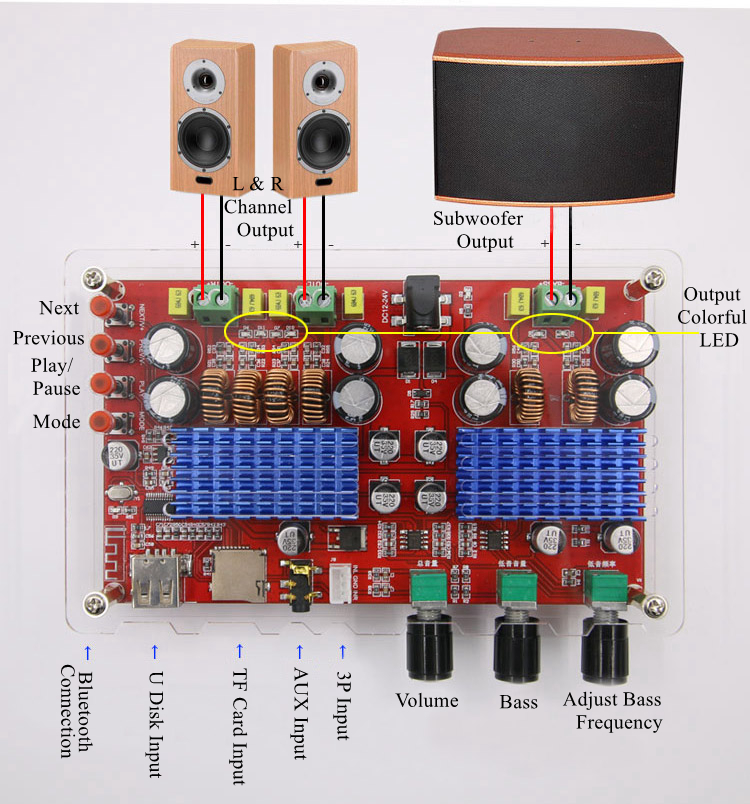

The audio signal of mobile phone or MP3 can be directly sent to the audio port of the power amplifier board for amplification. The connection diagram is shown below
