XiangSheng DAC-01A DAC Headphone Amplifier USB with Bluetooth Receiver Audio AMP Black Panel

XiangSheng DAC-01A DAC Headphone Amplifier USB with Bluetooth Receiver Audio AMP Black Panel

Headphone Amplifier Description:
The DAC-01A DAC Headphone Amplifier stands out with its high fidelity vacuum tube output . With no less than five sources signal inputs for selecting : DVD/CD, AUX, coaxial, optical and USB input.

The DAC-01A lets you “upgrade” the music listening experience, for any type audio setup, from computer-based systems, to network music devices, or standard CD/DVD etc. Just plug it into your existed setup and enjoy the superior high end sound quality.

This is a new design so not like the old Tube DAC. The unit have two output, one with transistor and one with single 6N3 vacuum tube. So you can change the two output to find more fun. You can compare the sound between the two output then find out which can match you listen taste.

Headphone Amplifier Features:
- 5 sets of inputs: including 2 sets of analog RCA inputs(DVD/CD, AUX), (1) coaxial, (1) optical and (1) USB input.
- 2 sets of RCA outputs – transistor and vacuum tube.
- Built-in headphone amplifier: allows you to enjoy music with privacy. Great power, music layers and details.
- Genuine imported processing chip. All resistors and capacitors are audiophile grade to ensure sound quality. Key parts are from Germany and Taiwan etc..
- R-shape high efficiency transformer.
- Separate power supply rectification to analog and digital circuits.
- Gold coated RCA connectors and coaxial connector.
- Vacuum tube output use well-known Chinese 6N3 tube. It can be replaced with 5670 type of tube.
- Brushed aluminum faceplate, with all metal buttons and knobs, plus blue LED indicator light.
- Having two RCA analogy un-balance output(Normal Output and Tube Output), can be connected to transistor amplifier and tube amplifiers.
- The volume potentiometer does not control volume on the line outputs, just the headphone.

Headphone Amplifier Specifics
- Tube:Tube Used 6N3 ( can be replaced with 5670 tube)
- Input Impedance : Analog :100 ohm Digital: 75 ohm
- Harmonic Distortion:NO: less than 0.001% TO: less than 0.1%
- Headphone Amp:Output Power: 1000mW-300mW
- Frequency : 20Hz-30KHz
- Signal/Noise Ratio:Normal Output: 96dB; Tube Output: 90dB
- Impedance : 32 ohm -600 ohm
- Sampling Frequency:32kHz ,44.1kHz ,48kHz ,88.2kHz ,96kHz
- Resolution Capability:16bit ,20bit and 24bit audio depending on source
- Output Impedance:600 ohm
- Output Voltage:> 2000mV
- Dynamic Range:117 dB
- Size:260mm (W) x 167mm (D) x 55mm (H)
- Weight:2.5 KG

Bluetooth receiver:
- This receiver integrated headphone amplifier and TF card/U-disk player
- Bluetooth transmission is stable, support for small capacity lossless transmission.
- Support TF card,U disk playing function, support APE play, support small capacity WAV lossless, support  format like MP3, WMA,etc..
- Built-in lithium polymer battery, card player for 6 hour
- Built-in independent headphone amp circuit
- Built-in sound effect processing chip, for the loss of the  WMA, MP3 and other formats of the file, with bass boost, harmonic excitation compensation function
- With a remote controller, the body also has a button control, and there is a display of relevant information

Bluetooth receiver Function:
1. Charging port, power adapter is 8.4V/0.1A
2. Power switch
3. Line output interface, can be connected to power amplifier or headphone amp.
4. Headset output interface, built-in independent amp circuit, can push 32 -300Ohm headset.
5. TF card socket, audio files can be copied into the TF card into the machine to play.
6. U disk jack, audio files can be copied into the U disk, insert the player.
7. Line input interface, analog signal like sound card, mobile phone can be input to the machine, used as an independent amp.
8. Press long as the volume increases, the short press for the next song.
9. Play / pause button. Under bluetooth mode, press this button, dial a phone number.
10. Press long as the volume decreases, the short press for the last song.
11. Input mode selection button. Can switch among AUX, Bluetooth, MP3, etc.
12. MIC microphone port. Under bluetooth mode, you can call.
13. Bass boost knob.
14. Harmonic compensation knob.

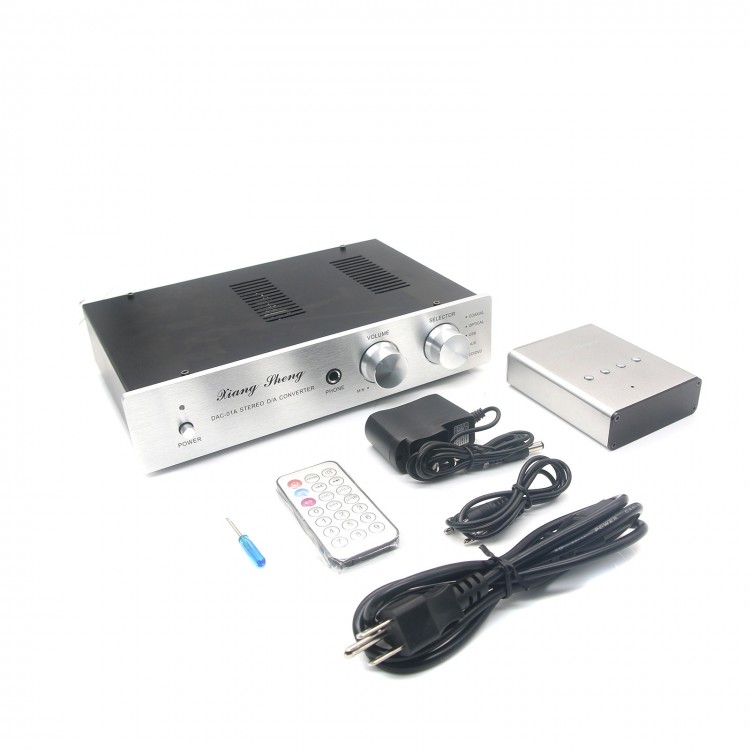

Packing includes:
- 1 * DAC Headphone Amplifier
- 1 * Bluetooth receiver
- 1 * Remote controller
