XIAOR GEEK Wifi Bluetooth Video Smart Robot Car Kit 4WD Robot Car DIY with STM32 Motherboard

XIAOR GEEK Wifi Bluetooth Video Smart Robot Car Kit 4WD Robot Car DIY with STM32 Motherboard

Features:
- Wifi video smart robot car kit
- Optional motherboard: for Raspberry Pi, Arduino, 51duino, and STM32
- Programming language: C/Python/Scratch (for Raspberry Pi); for Arduino IDE (for Arduino UNO); Keil (51duino); IAR (STM32)
- Multi-functional chassis: The car chassis can replace major core main control boards and various functional equipment and facilities, which greatly meets the needs of users for different functions. Support Wifi, Bluetooth, IR sensor, and ultrasonic modules. Support real-time video and camera; 2DOF PTZ; phone control
- WIFI and Bluetooth control modes: After the car is turned on, an AP hotspot will be generated. Connect a mobile phone or PC to this hotspot to control the operation of the car

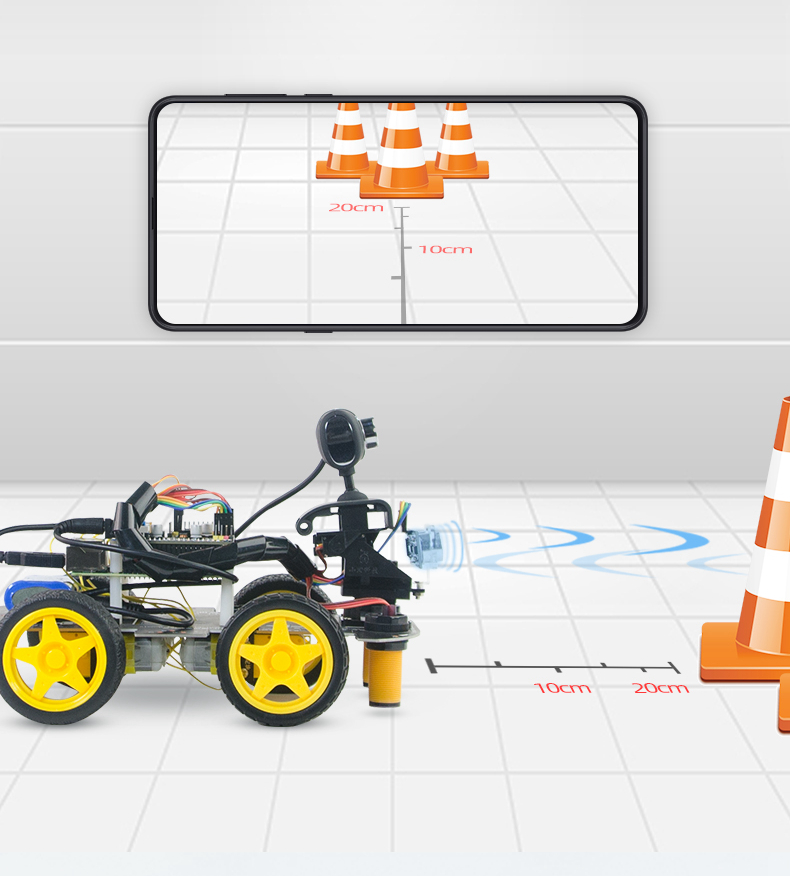

- Ultrasonic ranging back transmission: When the car is running, the radar interface of the APP or PC software can see the distance between the car and the obstacle, and clearly display the distance value in cm
- 2DOF PTZ: You can flexibly control the PTZ to rotate up, down, left and right through your phone touch screen or mouse
- Real-time video transmission: Connect the car in WIFI mode, and the PC and mobile APP screen can display the video image captured by the car camera in real time, presenting a first-person perspective

Specifications:
- Motor drive: imported L298P two-way high-power motor drive chip
- Optional Core board: for Raspberry Pi 4B/UNO board/STM 32 board/51duino board
- Charging method: direct charging
- Frequency range: 2.400-2.4835GHz
- Camera: HD camera (adjustable distance)

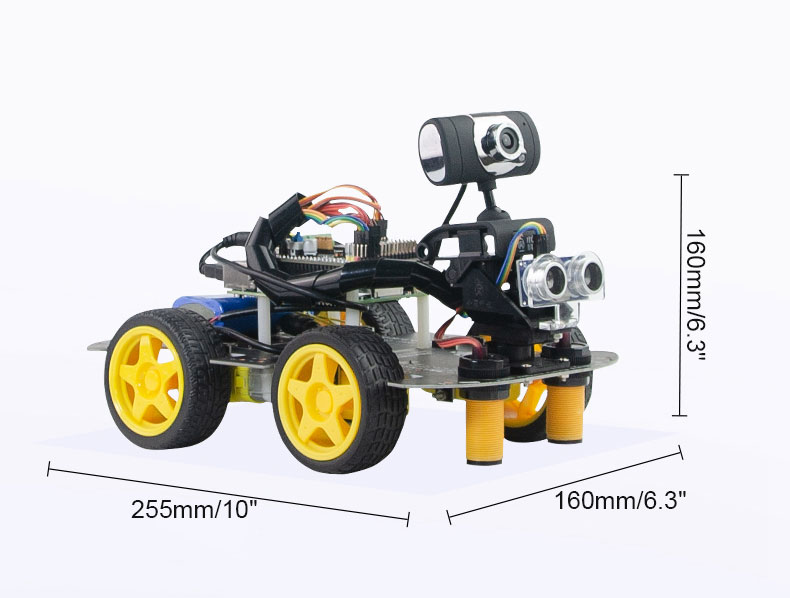

- Dimensions: 255 x 160 x 160mm/10 x 6.3 x 6.3"
- Compilation environment: for C/Python/Scratch (for Raspberry Pi), Arduino IDE (for Arduino), Keil (51duino), and IAR (STM32)
- Wireless communication: Support 802.11b/g/n protocol, up to 150Mbps
- Signal range: ≤ 80m/262.5ft open distance
- Remote control mode: 1. APP for IOS; 2. APP for Android; 3. PC client
- Weight: 850g/1.9lb

TM32 Motherboard:
- Over 40 programming IO ports
- One-click download circuit
- Up to 72MHZ main frequency
- 64K storage
- SWD & JTAG debug interface
- 2x12-bit D/A and A/D interface

Note:
- Battery is not included. 7.4V lithium battery pack is recommended.
- Assembling is needed.
