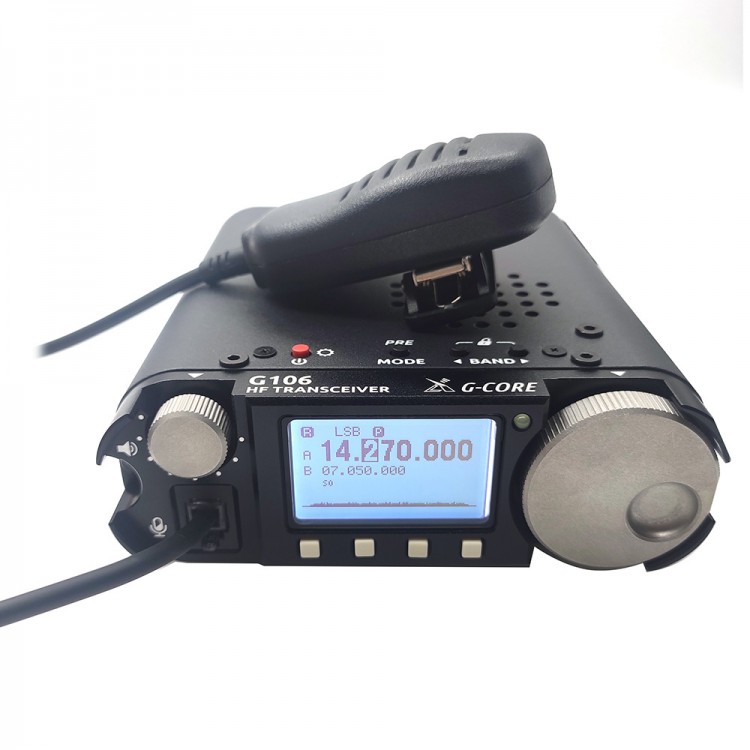

XIEGU G106C 5W HF Transceiver QRP SDR Transceiver SSB/CW/AM Three Modes WFM Broadcast Reception
Description:
The Xiegu G106 is a new 5 watt QRP transceiver with a general coverage receiver 0.55-30 MHz with SSB/CW/AM transmit capabilities in the 80 to 10 meter amateur radio bands, WARC bands included. The G106 also have Wide FM receive in the broadcast FM band 88-108 MHz.
The G106 is based on an SDR architecture with 16bit sampling to deliver superior performance. It has a digital CW filter with three bandwidths to help you fight interference and get more clear reception of weak signals. With the optional external DE-19 digital adapter, it can be connected to a PC for working digital modes including FT8.
As an entry-level portable SDR transceiver, G106 will be the perfect HF transceiver to start explore the bands with SSB, CW and exciting digital modes like FT8.
Features:
- High-performance SDR 16-bit circuit
- Compact, robust and user friendly
- General coverage HF receiver
- Transmit in all amateur radio bands 3.8~29.7MHz
- WFM broadcast receiving in 88-108 MHz
- Digital modes option capable
- Computer control ready
Specifications:
- RX frequency range: 0.55~30MHz; 88~108MHz (WFM)
- TX frequency range: 3.5~3.9MHz; 10.1~10.15MHz; 18.068~18.168MHz; 24.89~24.99MHz; 7.0~7.2MHz; 14.0~14.35MHz; 21.0~21.45MHz; 28.0~29.7MHz
- Operating mode: SSB/CW/AM, WFM (receive only)
- Receiving sensitivity: CW: 0.25uV at 10dB S/N; SSB: 0.5uV at 10dB S/N; AM: 10uV at 10dB S/N
- Frequency stability: ±1.5ppm within 30min after power on at 25°C: 1ppm/hour
- Transmitting power: ≥ 5W at 13.8V DC
- Transmitting spurious suppression: ≥ 50dB
- Audio output power: 0.3W
- Operating voltage: 9~15V DC
- Standby current: 0.37A at Max
- Transmitting current: 2.8A at Max
- Dimensions: 120 x 40 x 135mm/4.7 x 1.6 x 5.3"
- Weight: About 720g/1.6lb (only host)
Package Included:
- 1 x G106 transceiver
- 1 x Handheld microphone
- 1 x Power cord
- 1 x English manual
