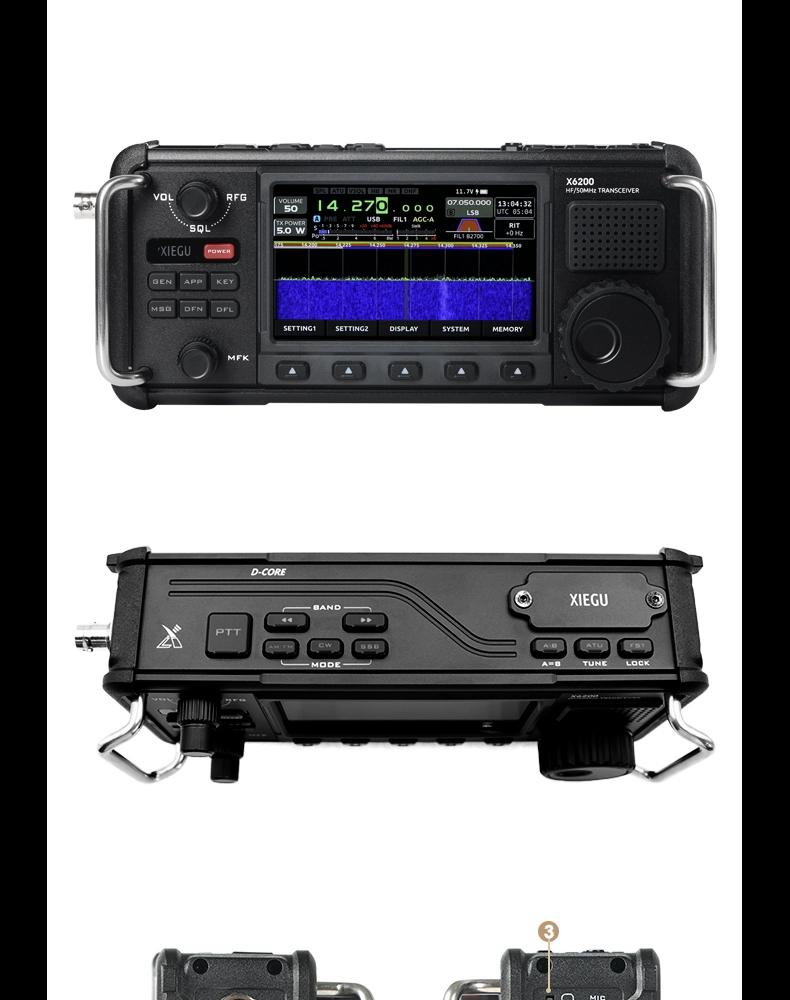

XIEGU X6200 SDR HF/50MHz Full Mode SSB/CW/AM/FM Portable Shortwave Radio with 4-inch HD Color Screen
Features:
- By adopting advanced RF direct sampling technology, RF signals are directly sampled and converted into digital signals, achieving high-definition voice transmission. Equipped with powerful baseband and RF units, it brings new powerful features and a more convenient user experience to amateur radio enthusiasts.
- A 4-inch high-definition large screen provides intuitive visibility, equipped with waterfall display and spectrum function, which can intuitively display the signal activity on the selected frequency band.
- The display interface supports switching between Chinese and English, and users can choose the corresponding language according to their needs.
- HF/50MHz full mode, supporting multiple communication modes including SSB, CW, AM, FM, and data communication modes. Provide a maximum transmission power of 8W to meet the communication needs of amateur radio enthusiasts. When using the built-in battery, the maximum transmission power is 5W.
- Support receiving WFM radio and aviation frequency bands to experience more listening pleasure. Broadcast frequency band 88-108MHz, aviation frequency band 108-136MHz.
- Compact design, compact appearance, total weight of about 930g, built-in detachable battery pack, battery capacity of 3200mAh, full battery life of about 4 hours (* only for receiving status)
- The body integrates PTT buttons and a built-in microphone, making it convenient to use the radio outdoors.
- Connect a Type-C data cable to the computer to perform FT8 operations. The radio has a built-in sound card and FT8 decoder.
- Built in high-efficiency automatic antenna tuner and antenna standing wave scanner can help users quickly complete antenna setup and debugging work.
- Integrated multi-mode modem, supports decoding CW, RTTY, and PSK signals, and displays them in text form on the screen.
- Pre-set telegram and recording transmission, by storing text information and recording voice information in advance, press the corresponding tag to start automatic transmission.
Specification:
- Model: X6200
- Frequency range:
Receiving: 0.5 - 30MHz, 50 - 54MHz, 88 - 108MHz, 108 - 136MHz
Transmitting: 1.8 - 54MHz (only for amateur frequency)
- Transmitting power: 0.1 - 8W (DC13.8V); 0.1 - 5W (built-in battery)
- Working mode: SSB, CW, AM, FM
- Current consumption: receiving 650mA at MAX, transmitting 3A at MAX
- Working temperature: 0 - 50℃
- Antenna interface: BNC female connector
- Antenna impedance: 50ohms
- Power interface: DC5525
- Power voltage: 9 - 15V DC
- Size: about 200 x 89 x 51mm
- Host net weight: about 930g
Package Included:
- 1 x Shortwave Radio
- 1 x Multifunctional Handheld Microphone
- 1 x Power Adapter
- 1 x Power Cable
- 1 x Type-C Data Cable
- 1 x User Manual
