Description：

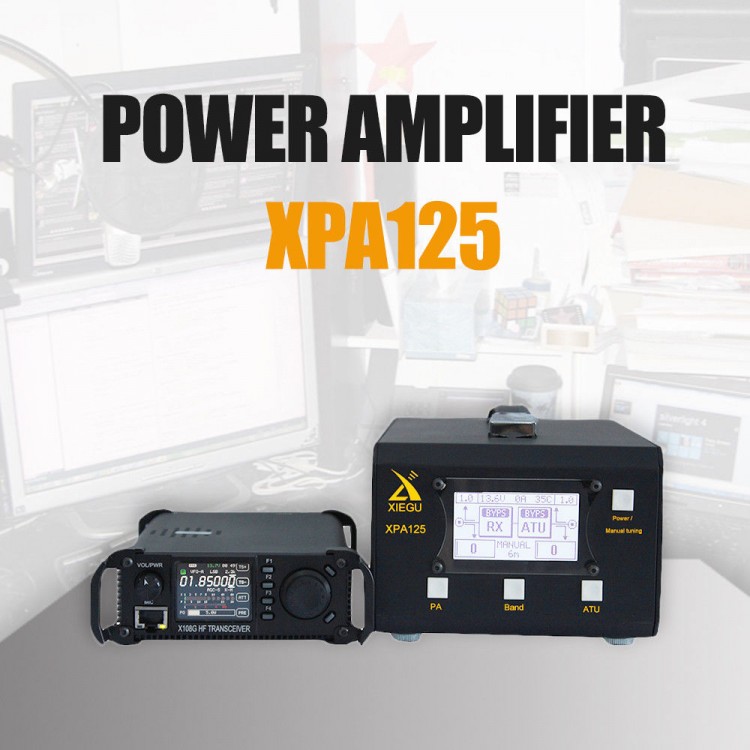

The new generation of Xiegu products, Xiegu XPA125, with a built-in antenna
tuner, can amplifies the output up to 125W. This power amplifier features
temperature protection, overcurrent protection, input and output detection, high
and low level selectable, PA/ATU switchable. Besides, it also combine LC antenna
tuner; If work with Xiegu 108G or X5105, the band and launch automatic control
can be achieved with the AlC function.
Features:
Built in 125W solid state power amplifier, automatic antenna tuner
Auto tuning function, precise and fast
Harmonic suppression 39dB
Input/output protection function
Active/passive heat radiation design
Compact size, easy to carry
The maximum output power can be automatically constant (only for X108G
and X5105) [ALC control function]
Perfect protection function, including inputs and outputs, over-current,
over-temperature
XPA125 has a perfect external interface, it can be connected with other
QRP models to achive power amplication effect
Note: After XPA125 amd X108G connection, the band and launch automatic
control can be achieved, and it with the AlC function
Other
Functions:
PA function
Band set function: can set the LPF band and working mode
ATU function
Switch machine function
Remove the protection function
Force tuning function
Screen display
Specifications:
Technology Parameters of Power Amplification:
Amplified Frequency Range: 0.5~50MHz
Maximum Output Power: 125W
Maximum Operating Ambient Temperature: 55℃
Whole Gain: 13dB (+ 2dB)
Working Voltage: DC 12~14.5V
Current Parameter: position in readiness @Max 550mA
Emission Current 30A@Max
ATU Basic Parameter:
Tuning Frequency Range: 1.8M~30M
Maximum Tuning Range: 14Ω~500Ω
Size & Weight:
Overall Size: 260*150*100(mm) [do not include knob, handle and other prominent]
Weight：3.3 Kg
General Troubleshooting
Pckage Content:
1x Xiegu XPA125 HF Power Amplifier
1x Power Supply Cable
1x Communication Cable
1x Data Cable
1x Using Manual (Please
Click Here to Download)
