Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $14.03 | $13.75 | $13.32 | $12.74 | Contact US |

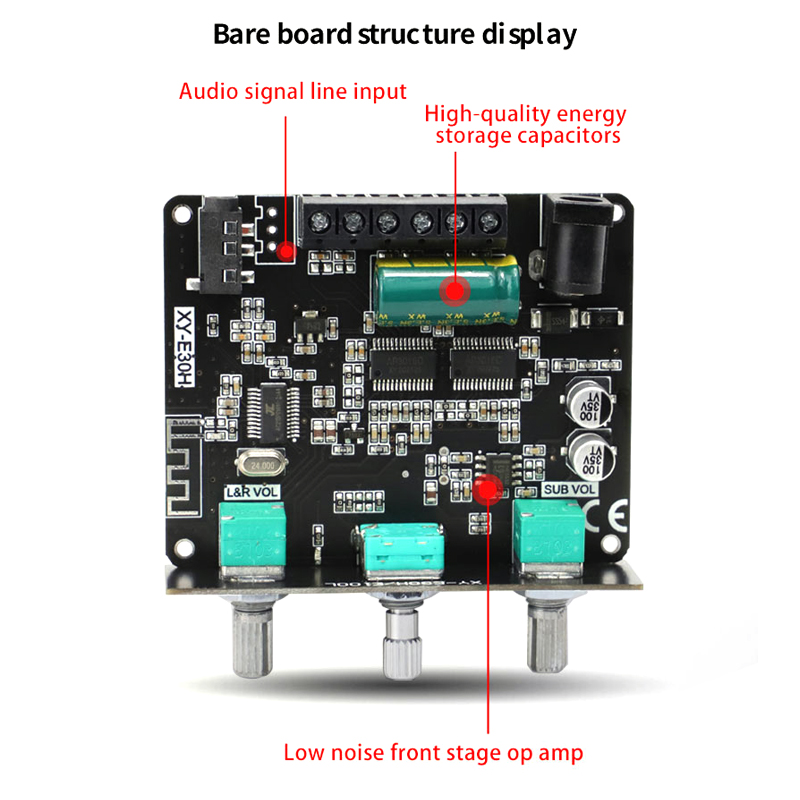

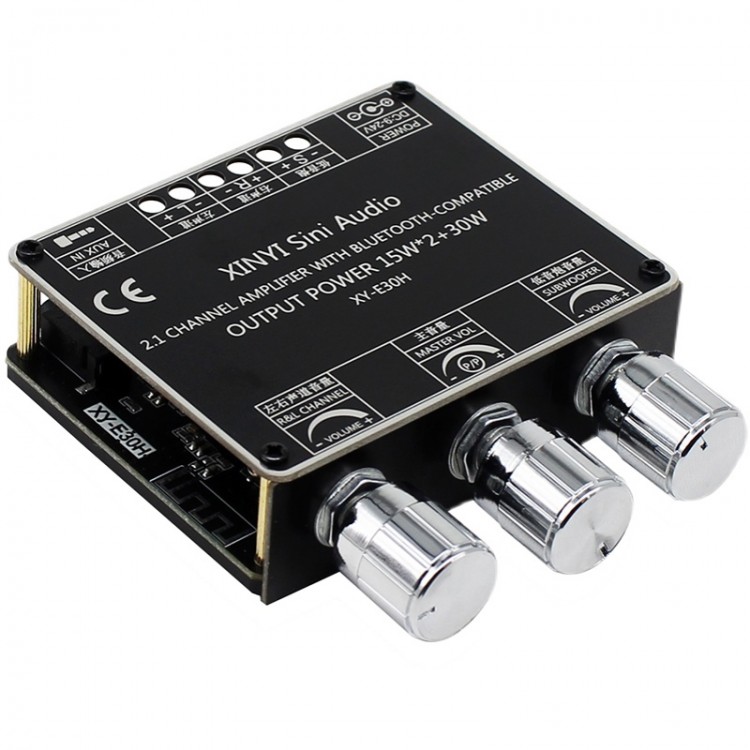

XINYI Sini Audio 2.1 Channel Amplifier Board 15W*2+30W BT5.1 Bluetooth Amplifier Module XY-E30H
Specifications:
- Product model: XY-E30H
- Name: 2.1 channel bluetooth amplifier module
- Power supply: DC9-24V/over 3A
- Bluetooth version: 5.1
- Audio channel: 2.1 channel
- Audio input: Bluetooth + AUX
- Audio output: left and right channels + subwoofer

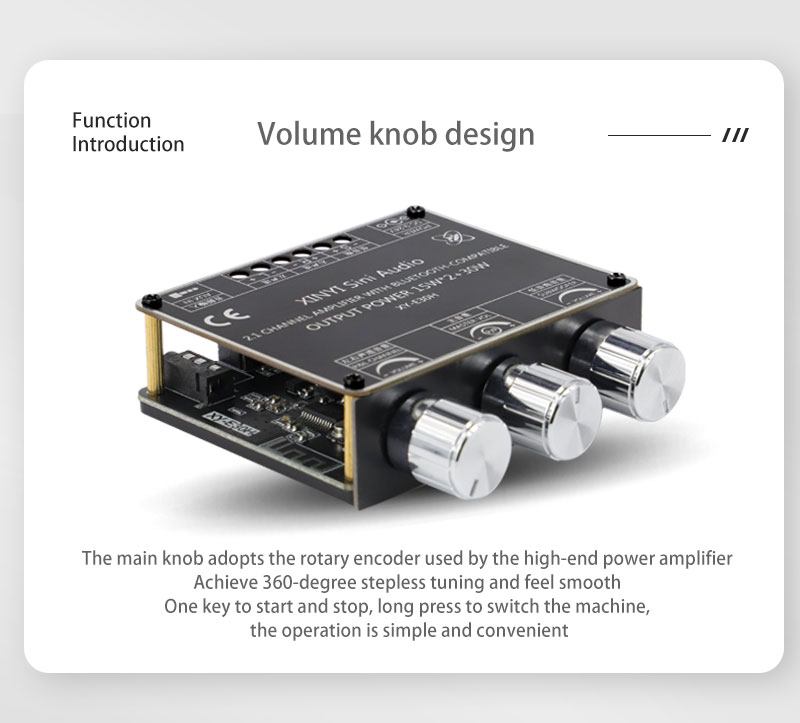

- Volume adjustment: high-end encoder knob with smooth feel
- Frequency range: 20HZ-30KHZ
- Signal-to-noise ratio: 92dB
- Output power: 15W*2 (left and right channels)+30W (subwoofer)
- Speakers with left and right channels: 5W-30W/4Ω-16Ω
- Subwoofer speaker: 5W-50W/4Ω-8Ω
- Protection mechanism: electrostatic, over-current, short-circuit and over-temperature protection

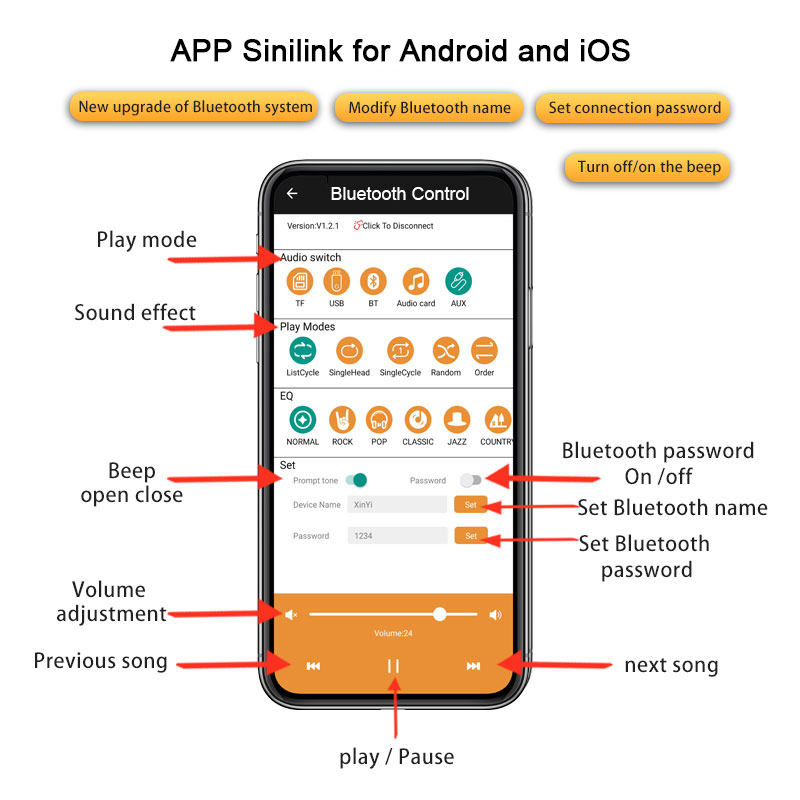

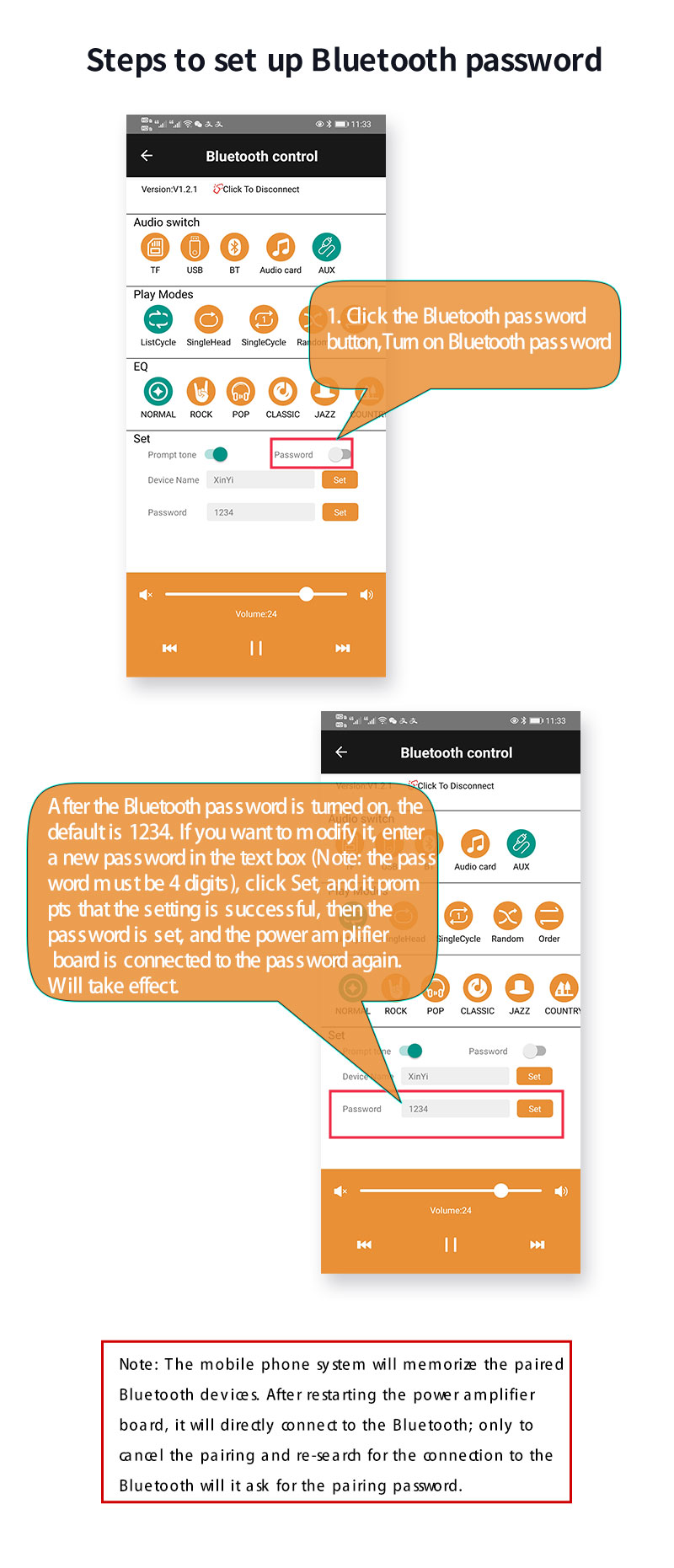

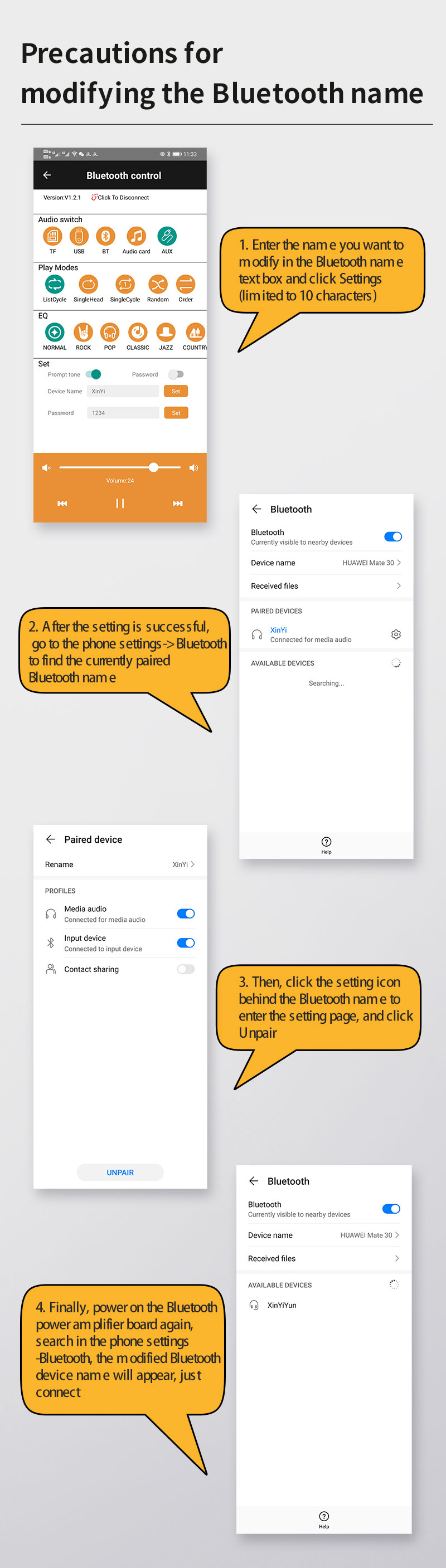

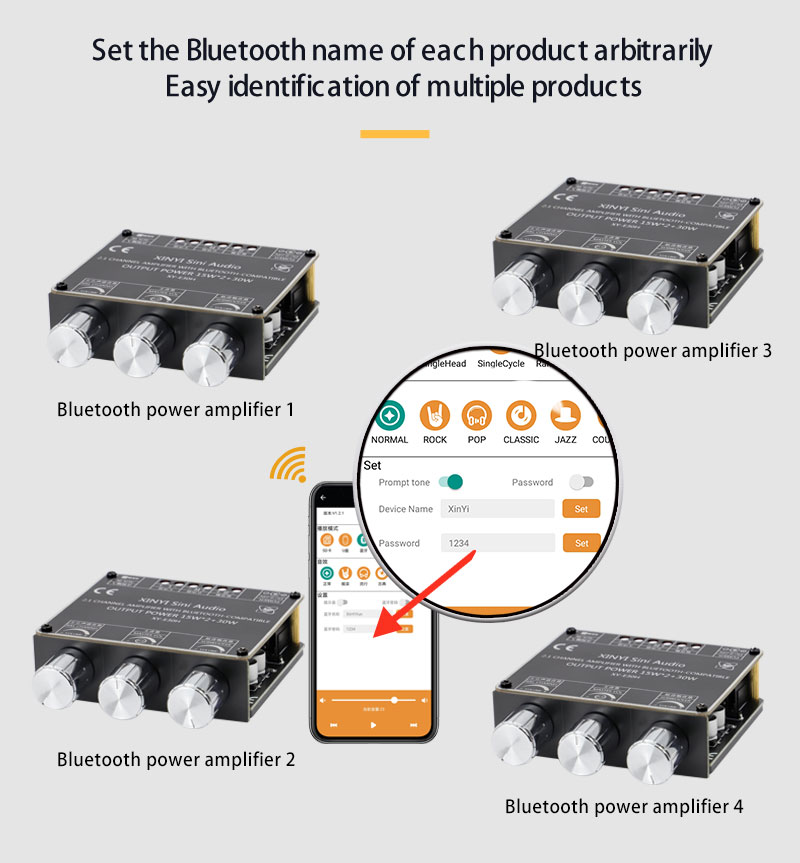

- Unique function: Support Sinilink-APP to modify bluetooth name, set bluetooth password and turn off/on prompt sound
Package Included:
- 1 x Set of Power Amplifier Board
Note:

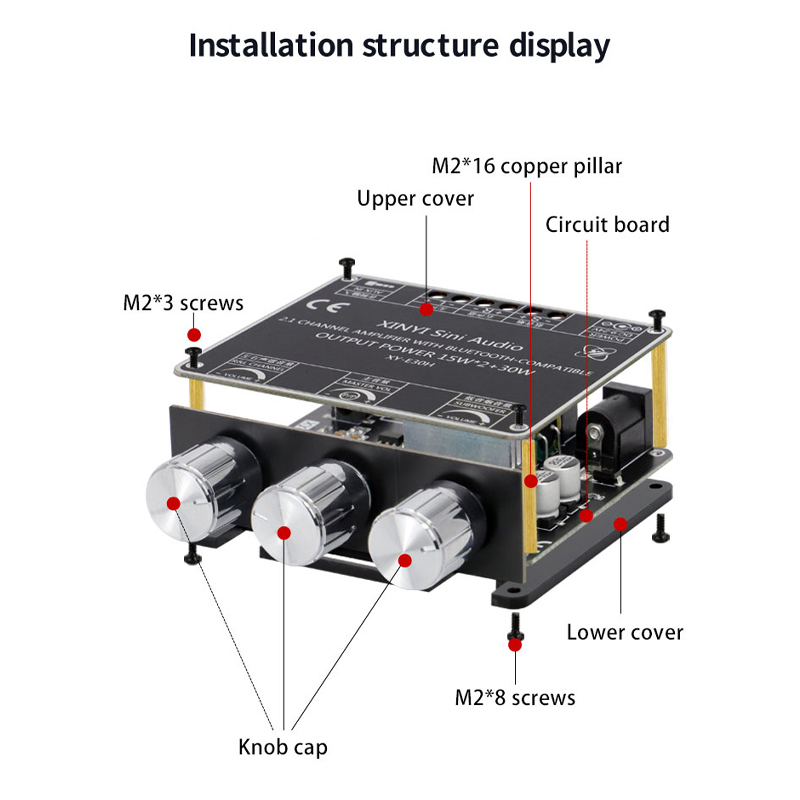

- Assembling is needed.
