Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $10.37 | $10.16 | $9.84 | $9.42 | Contact US |

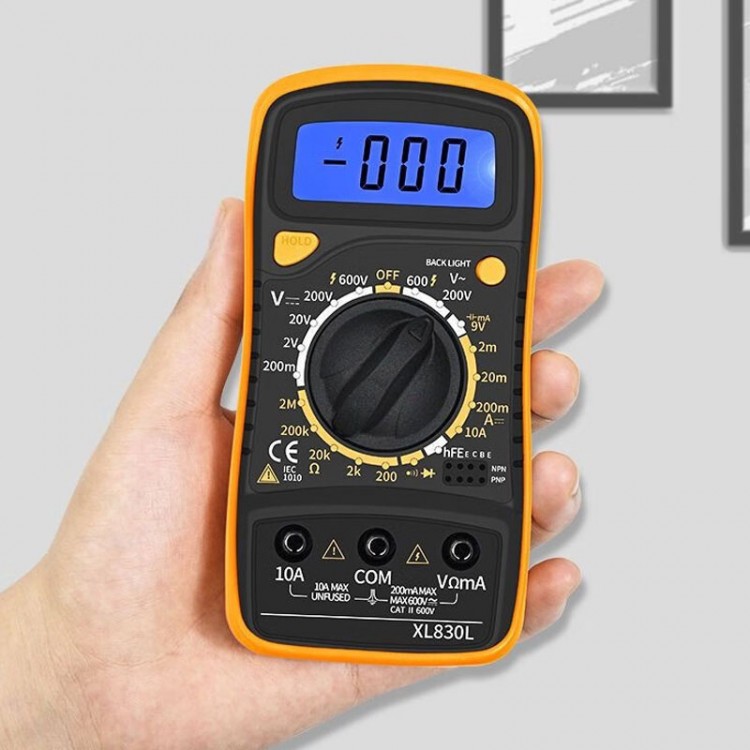

XL830L Handheld Multimeter Digital Multimeter w/ Backlight to Test Voltage Current Resistance Diode
Features:
- Multifunctional multimeter
- Digital multimeter: With data hold function. Better recording of values and meeting your measurement needs.
- User-friendly design: Built with ergonomic technology, it provides users with a comfortable experience
- With backlight: The multimeter can be used day and night
- Widely used: It can be used in various environments to meet the measurement requirements of users. It can used for circuit detection, appliance repair, electricity detection and electronic repair
Functions:
- 3 ½ digit display and maximum displayed value is 1999
- Data hold function
- Display low-voltage symbol
- With backlight
- Overload protection
- On-off measurement
- Diode test: Support
- Triode test: Support
- On-off measurement: Support
- Backlight: Support
Specifications:
- DC voltage range: 200mV-2V-20V-200V-600V ±0.5%
- AC voltage range: 200V/600V ±1.0%
- DC current range: 200uA-2mA-20mA-200mA-10A ±1.8%
- Resistance range: 200Ω-2kΩ-20kΩ-200kΩ-2MΩ ±1.0%
- Transistor measurement: Yes (PNP/NPN transistor hFE)
- Diode measurement: Yes
- Input resistance: 1MΩ
- Maximum display: 1999 ( 3 ½ digit display)
- Display size: 45 x 20mm/1.8 x 0.8"
- Product size: 130 x 65 x 33mm/5.1 x 2.6 x 1.3"
Package Included:
- 1 x Multimeter Tester
- 1 x User Manual
Note:
- Battery is not included. A 9V 6F22 battery is recommended.
