XL830L LCD Digital Voltmeter Ohmmeter Ammeter OHM Multimeter Tester
Description :

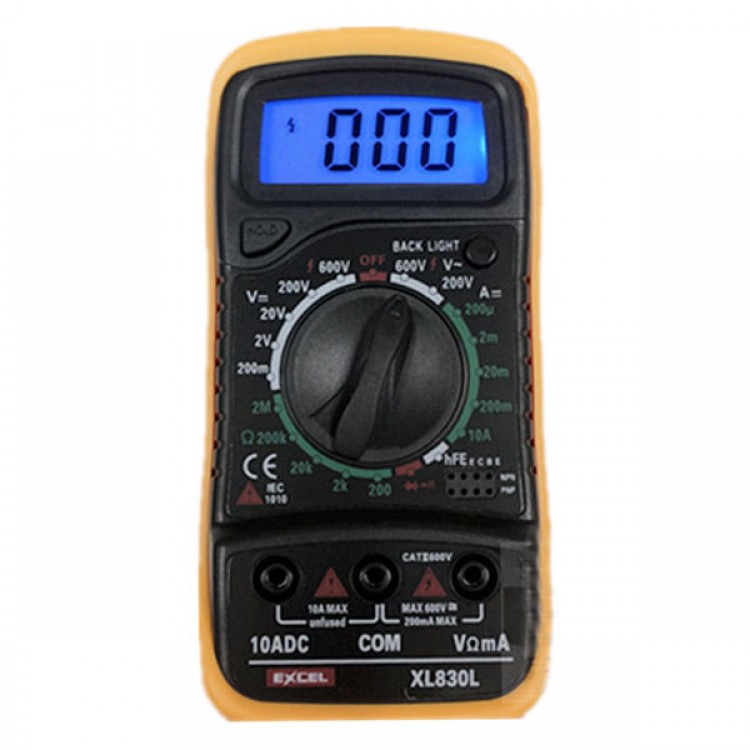

XL830L LCD Digital Voltmeter Ohmmeter Ammeter OHM Multimeter Tester
This is a XL830L handheld digital multimeter for measuring DC and AC voltage, DC current, Resistance, Diode and Transistor, with battery operated. It is so easy and efficient, so practical for electrician use.
Easy to operate and the readings indicated directly on the screen. It can be use to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.
Features :
Model : XL830L
15mm high LCD Display
Max display : 1999, Auto polarity display
Portable and compact design;overload protection on all ranges
Diode assembly test / Transistor P-N junction test/Transistor HFE test
Continuity test with buzzer sound in circuit
Low battery voltage indication
Data hold function
DC Voltage : 200mV/2V/20V/200V +- 0.5%, 600V +- 0.8%
AC Voltage : 200V/600V +- 1.2%
DC Current : 200A, 2mA, 20mA +- 1%, 200mA +- 1.5%, 10A +- 3%
Resistance : 200Ohms,2KOhms, 20KOhms, 200KOhms, 2MOhms +- 0.8%
Display : LCD, 1999 counts
Fuse protection : F-200mA/250V
Operating Temperature : -0C to 40C
Overrange Indication : Only figure "1" on the display
Polarity Indication : "-" displayed for negative polarity
Low Battery Indication : - /+ display
Power by One 9V battery (installed)
Specifications :
Maximum voltage between terminals and earth ground
CAT II600V
Fuse protection F 200mA/250V
Power 9V battery, NEDA1640 or 6F22
Display LCD, 1999 counts, updates 2-3/sec
Measuring method Dual-slope integration A/D converter
Overrange Indication Only figure “1” on the display
Polarity indication “-“ displayed for negative polarity
Operating Environment 0 to 40 Celsius
Storage temperature -10 to 50 Celsius
Low battery indication “- +” appears on the display
Size 138mmX 69mm X 31mm
Weight Approx. 240g
Notes :
Please do not change the inner circuit to avoid damaging the ammeter.
Do not connect it to the voltage over 1000VDC or 750VAC.
Make sure not connect the error measure range.
Please do not use the ammeter if the back cover is wrong.
Please remove the pen and cut off the power before replacing battery and fuze.
Package includes :
1 x XL830L Digital LCD Multimeter
1 x Test Leads line(red&black)
1 x 9V Battery Included
1 x User Manual
