Description:
- The new generation of XMOS XU208 program digital interface, higher than the previous generation U8 running memory, so that XMOS audio and rise to a new level (XU208 memory 1000MIPS, U8 only 500MIPS), shoulder Italy Amanero program, and more stable, coaxial The output also supports dsd DOP, which Amanero can not!
The program features:
-1 "size compatible with our previous interface, can be interchangeable, interface common
-2 "coaxial output support DSD dop (DSD64 format only)
- 3 "can upgrade the gold-plated temperature compensation crystal and femtosecond CCHD957 (this is the other section does not have the function)
- 4 "with PCM and DSD indicators (this is the other section does not have the function)
- 5 "ultra low noise LDO regulated power supply, solid capacitors, Panasonic FC capacitor filter
- 6 "output port with DSD ON
- 7> support external power supply, voltage: DC5V, current "200mA (this is the other models are not the function)
- 8> PCB size: 78 * 60mm, working current 130mA
- The sampling rate supported by each output interface:
- PCM: 44.1KHz, 48KHz, 88.2KHz, 96KHz,
- 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz
- DSD: 2.8MHz (DSD64) - DoP, native
- 5.6 MHz (DSD128) - DoP, native
- 11.2 MHz (DSD256) - native
[Where I2S out supports full sampling rate, S / PDIF supports up to 192KHz and DOP DSD64]
Bit Width: Up to 32 bit over I2S output
Up to 24 bit over S / PDIF
System compatibility:
1, Windows 7, Windows 8, Windows 10; 32/64 bit, need to install a dedicated driver
2, Native MacOS 10.6 and later, using the system comes with the driver
3, Native Linux with UAC2 compliant kernel, using the system comes with the driver, (in the Ubuntu and Daphile system tested above, based on INTEL X86 platform)
4, Android OS 4.2 and above, the need for equipment to support OTG function, in general, Andrews 5.0 system is the default support, 5.0 the following recommendations with a dedicated player to use (such as the seashell player).
Package:

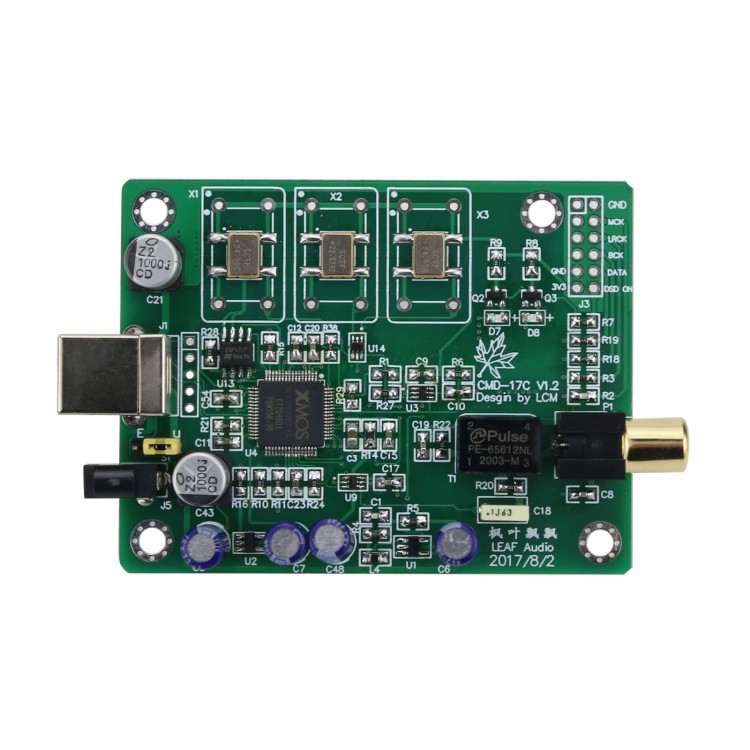

1xXMOS XU208 Asynchronous USB Digital Interface Coaxial DSDOP IIS Output DSD128
