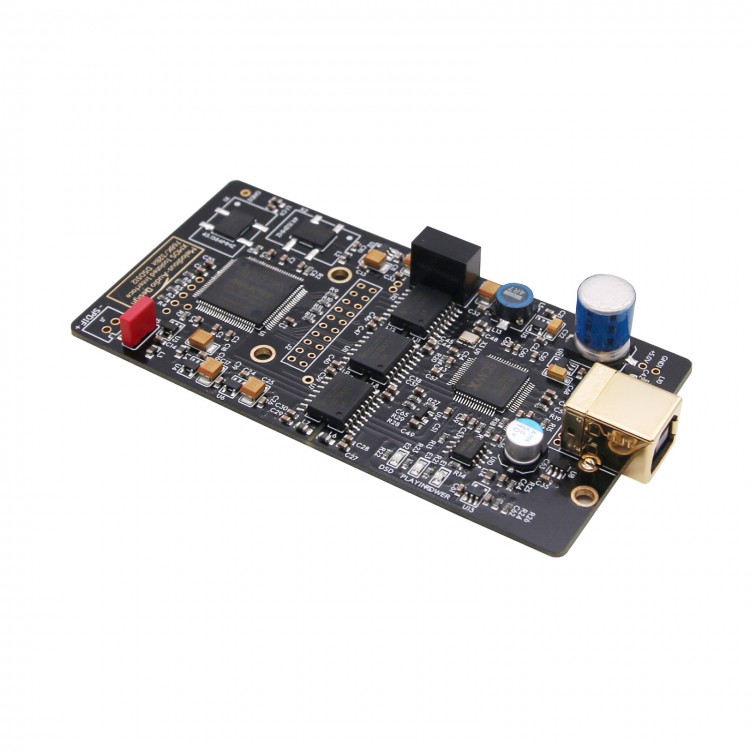

XMOS XU208 Isolated USB Digital Interface Card Support for DSD512 PCM768K DAC

XMOS XU208 Isolated USB Digital Interface Card Support for DSD512 PCM768K DAC

Features:
- Professional for using XMOS XU208 USB audio chip
- 3pcs high speed 480Mbps isolated chips without disturbance of PC
- 2pcs American crystal oscillators, FPGA digital shaping, clock management, DOP demodulation
- I2S output compatible with Amanero USB port; with SPDIF coaxial output
- I2S support for PCM768K, DSD512 Native, DOP256
- Four-layer gold-plated PCB and 5-way low noise LDO linear stable and independent power supply

Technical Parameters:
PCM Sampling Rate:
- I2S Output: Support 44.1K, 48K, 88.2K, 96K, 176.4K, 192K, 352.8K, 384K, 705.6K, 768K
- Bit Depth: 16Bit, 24Bit, 32Bit
- SPDIF supports up to 192K, 24Bit

DSD Sampling Rate:
- DSD64/DSD128/DSD256/DSD512 (Native)
- DSD64/DSD128/DSD256 (DOP)

- I2S output support all DSD formats, SPDIF supports DSD64 DOP output mode.

Compatibility:
- For Windows 7/8/10, 32/64Bit, special drive is needed
- For iPhone, Mac, OS system with drive
- For Linux including Ubuntu, Daphile, and Raspberry Pi with drive
- For Android OS 4.0 and above which support OTG function

Package Included:
- 1 x XMOS USB Digital Interface

Note:
- The above parameters can be reached with relevant DAC decoder (not included). If you are not sure whether your device is compatible with our product, please consult the seller of your device.
- We cannot guarantee that your non-original system work with our item. But we have tested that it is compatible with Samsung Note3, Note5, Note8, S5, S7, S8, and Huawei P20.
- The default is without soldered pin header. The USB socket is gold-plated 2.0 type. But if you need 3.0 socket or need to the pin welded, please tell us when purchasing. Thank you!
