Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $66.34 | $64.98 | $62.95 | $60.24 | Contact US |

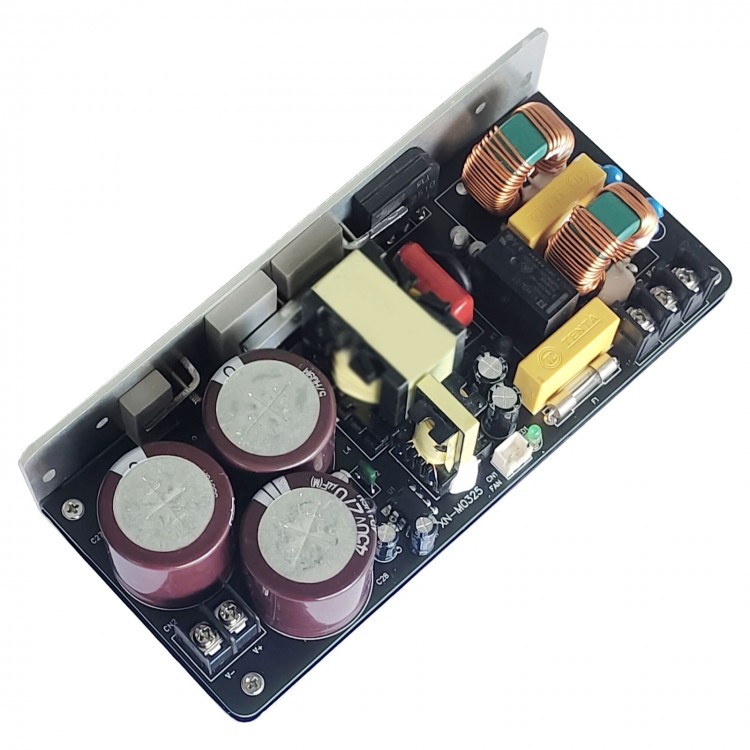

XN-M0325 1000W PFC Module PFC Power Supply AC-DC DPF Power Supply Module AC 100-240V to DC 380V
Features:
- Small volume

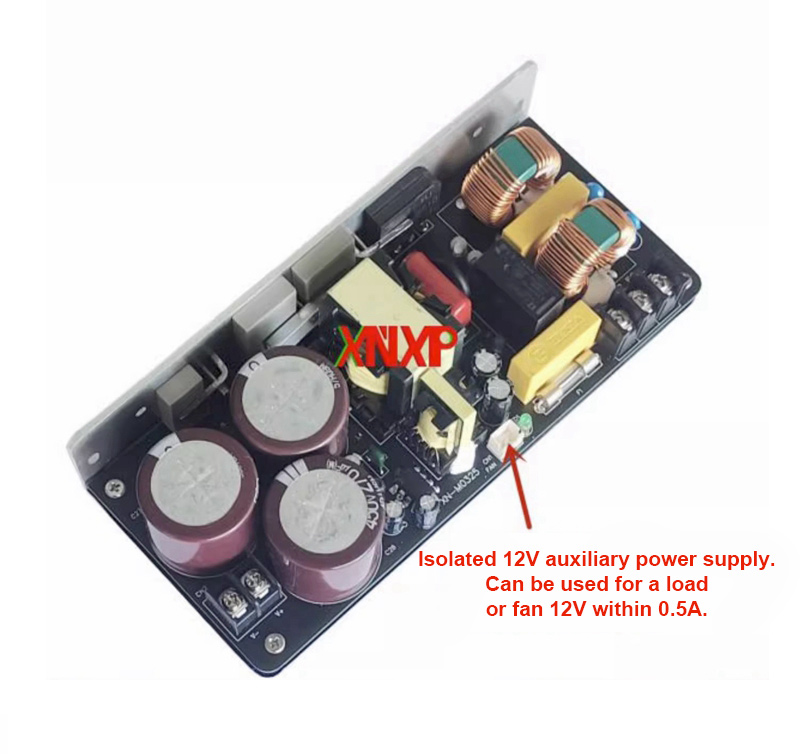

- Its isolated auxiliary power interface can supply power to the external. A fan can also be connected (12V within 0.5A)
- PFC power supply can save about 15% of electrical energy, especially high-power power supply
- Help you make efforts to save energy and reduce carbon emissions
Specifications:
- Model: XN-M0325
- Input supply voltage: AC100-240V
- Output voltage: DC380V (±2%)
- Power factor: 0.92-0.99 full load
- Efficiency: over 0.95
- Rated power: 1000W (at 220V input); 60% derating at 110V input. Forced air cooling according to the ambient temperature of use

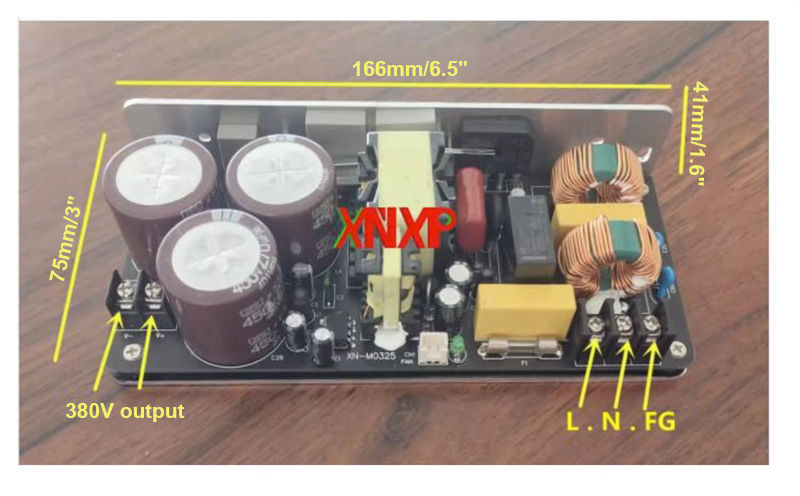

- Installation and fixing method: The bracket is an L-shaped aluminum plate, which is convenient for fixing the bottom or side and good heat dissipation with the fixed plate is ensured
Package Included:
- 1 x PFC Module
