Xprog V6.12 Xprog Programmer ECU Programmer Tool Kit With USB Dongle

Xprog V6.12 Xprog Programmer ECU Programmer Tool Kit With USB Dongle

Top 5 Reasons to Get Newest XPROG V6.12:
- New Generation Hardware, runs more steady and faster than old version.
- Latest software version: V6.12 ,Firmware V5.4
- Language: English
- Operating system: For WinXP/Win7/Win8
- Add new authorization: For AUTH-0028-1 Renesas V850 Authorized and AUTH-0028-2 Renesas SuperH Authorized 2017/10/9; For AUTH-0028-3 Renesas RL78 Authorized and AUTH-0028-4 Renesas M32C Authorized(New Add)

Q: What is the difference between this V6.12 version and V5.84, V5.74?
A: Xprog V6.12 Added Authorized:
For AUTH-0028-3 Renesas RL78 Authorized
For AUTH-0028-4 Renesas M32C Authorized

Added 4 Adapters:
ADP-0019 Rev.B
ADP-0006 M35080 ICP adapter
QFP64 MC908AZ/AS60 3K85K adapter
QO18S714

It improve the PCB performance.

XPROG V6.12 Using Tips:
1.XPROG V6.12 dongle isn't compatible with older version Xprog. You are not allowed to update from the older version Xprog V5.55 V5.60 V5.70 V5.84 to this newest V6.12 XPROG-M Dongle.
2. Please close all anti-virus software in your computer, because the anti-virus software will kill Xprog V6.12 driver and software.
3. Disconnect internet. Or V6.12 XPROG-M hardware may be damaged .
4. Uninstall all the old version XPROG software before you install V6.12 software, because XPROG V6.12 hardware is not compatible with other version XPROG software. Otherwise the hardware will be damaged.
5. Never try to UPDATE it, the hardware will be damaged if you try to update it online.

Install Notice:
Requirement for Windows system as below:
1.System for Windows should be for Windows XP 32bit OR Windows 7 64 bit, all the patch software for the Windows system should be installed already and the system properly works well.
2.System for Windows should be with at lest 2 partitions (except the CD ROM.)
3.Can not be working with virtual hard disk.

Install Steps Manual:
1.Click the file "installation.reg", get the file information to the regedit.
2.Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the Xprog software will not start.
3.Plug the Xprog main interface to the computer, install the USB driver.
4.Copy the folder "XPROG-BOX6.12" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.

XPROG V6.12 Authorizations:
For AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
For AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
For AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
For AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
For AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
For AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization(allows to read/write secured EEPROM and flash memory)
For AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
For AUTH-0008 BMW EWS3 authorization
For AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
For AUTH-0010 MB ZGS001 authorization
For AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
For AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
For AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
For AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
For AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization(allows to read/write secured EEPROM and flash memory)
For AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
For AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM,view /change mileage, Chassis number (VIN), serial number and PIN code).
For AUTH-0023-1 MAC7xxx
For AUTH-0023-2 XC23xx
For AUTH-0024-1 MC9S12Cxx
For AUTH-0024-2 MC9S12XE
For AUTH-0024-3 9S12XE SECURITY
For AUTH-0024-4 MC9S12HA/HY/P
For AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
For AUTH-0027-1HC(S)908 update Authorized 2016/3/13
For AUTH-0027-2HC(S)908 security Authorized 2016/3/13
For AUTH-0028-1 Renesas V850 Authorized 2017/10/9
For AUTH-0028-2 Renesas SuperH Authorized 2017/10/9
For AUTH-0028-3 Renesas RL78 Authorized ---New!
For AUTH-0028-4 Renesas M32C Authorized ---New!

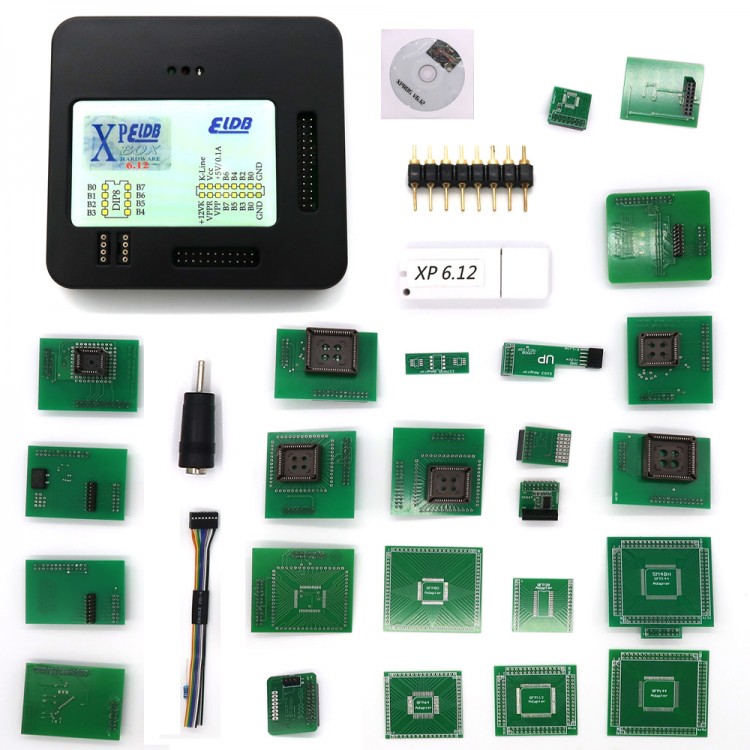

XPROG-M V6.12 Adapters Included:
ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
Additional adaptor for 5M48H P-FlashADP-0019Rev.A
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP64 adaptor
QFP80 adaptor
QFP112 adaptor
QFP144 adaptor

Package Included:
- 1 x Set of ECU Programmer
