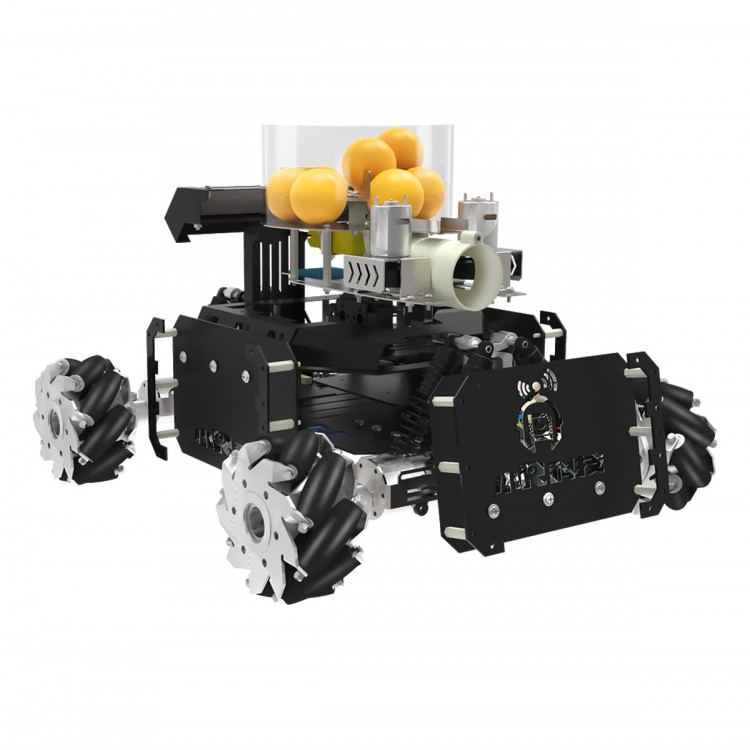

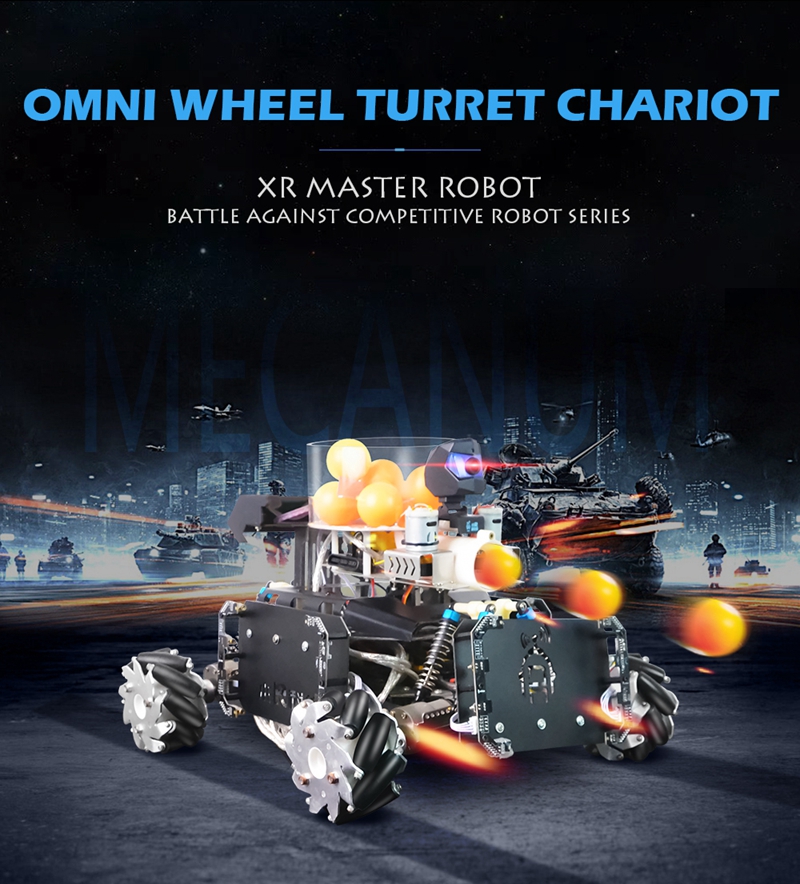

XR Master Remote Control Battle RC Car Omindirectional 180° Rotating Turret Ping Pong Balls 5M Range

XR Master Remote Control Battle RC Car Omindirectional 180° Rotating Turret Ping Pong Balls 5M Range

Description:
Suitable for: iOS/Android App, iPad, PS2 joystick, Web browser, VR(Not included)

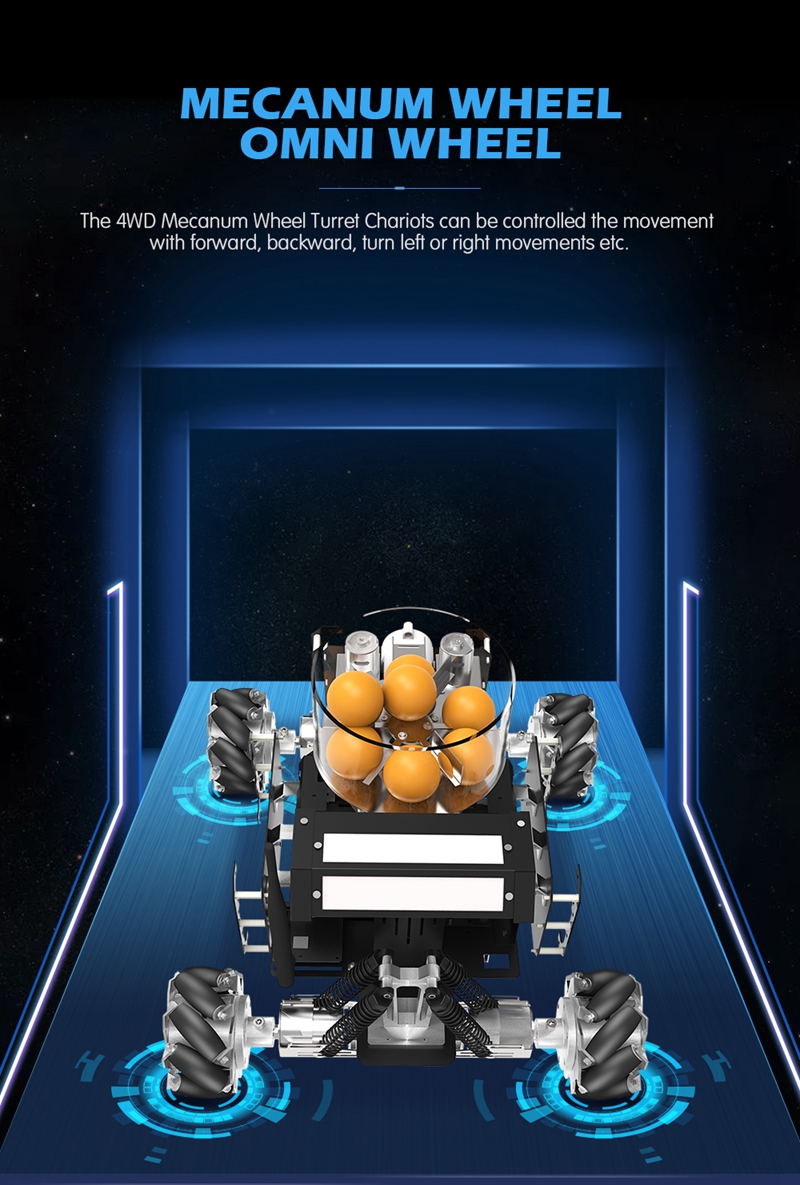

1. 100MM/4-Inch Omni Wheel
The 4WD Mecanum Wheel Turret Chariots can be controlled the movement with forward, backward, turn left or right movements etc.

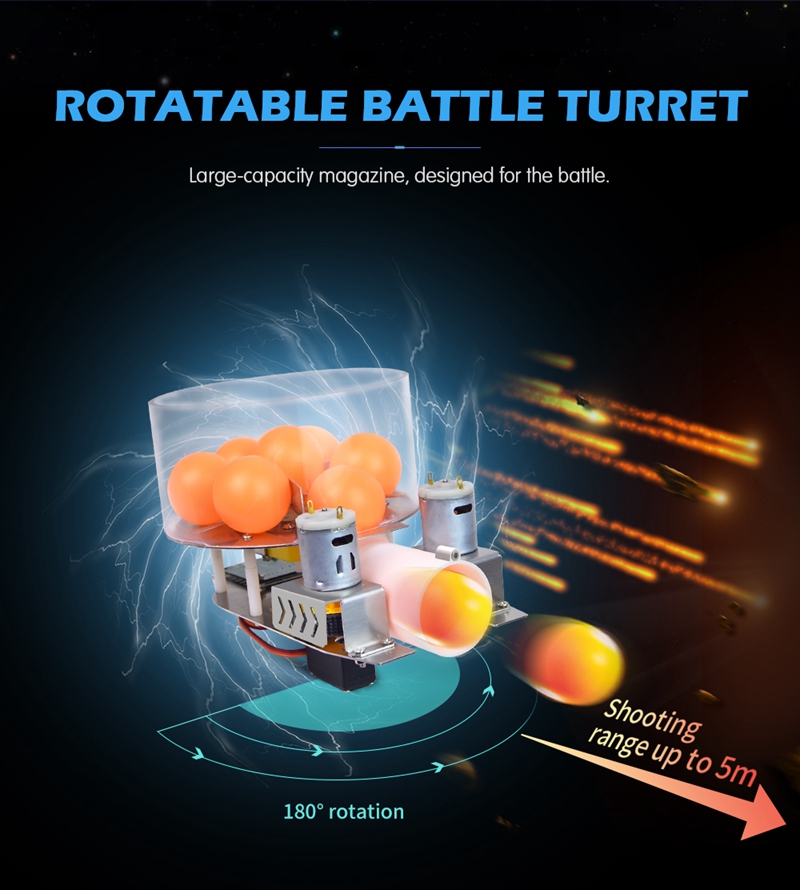

2. 180° Rotating Turret, 5M Shooting Range
180° steering gear, all-round fire, no dead angle against,shock experience. And shooting range up to 5M.

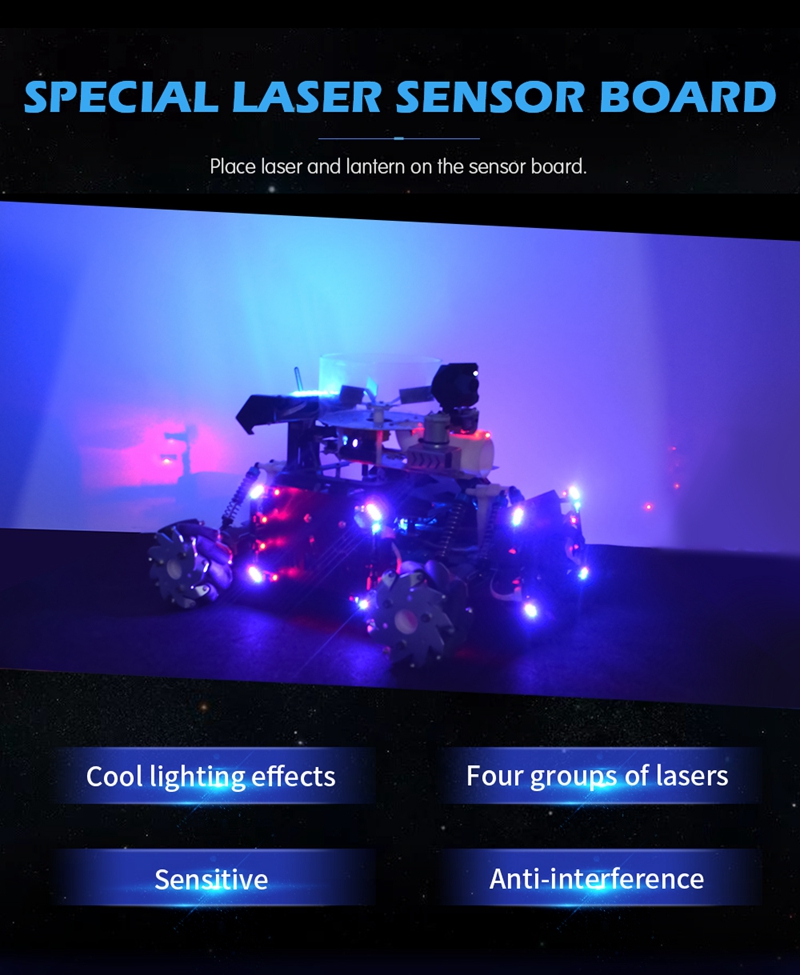

3. Special Laser Sensor Board
The laser sensor board features four sets of lasers and some colored lights for cool lighting effects while being sensitive and anti-jamming.

4. Blood Strip Light
When the laser sensor board is hit by the other bullet, the blood volume will be reduced by 1 points(10 in total). when the blood volume is less than 5 points, the blood strip will blinking, as the blood volume is further reduced, the frequency of the blood stripe flashes quicker, showing dangerous effects.

5. Avoid Shock Springs
The robot car uses an independent suspension system with 8 thick springs, which makes the movement more stable and reduces damage.

6. Team Control
With two people, the driver controls the chariot movements.The gunner controls the turret. Enjoy team battle fun with your friends.

7. Single Control
The left hand controls the direction of chariot movement, the right hand controls the turret.

8. Long Working Time
All aspects of the robot are optimized, making the power supply life increased by 300% to more than 60 minutes. And reuse it more than 1000 times.

Features:
- 180° rotation ping pong fort
- Shooting range up to 5m
- Special laser sensor board
- Colorful blood strip light
- Avoid shock springs
- WiFi real time video transmission
- Single control
- Team control

Product Parameters:
- Microprocessor: STM32F4 29IGT6
- Control Algorithm: Series PID control algorithm
- Input: Laser sensor board, PS2 handle, camera
- Chassis Craft/Material: Laser cutting/304 Stainless steel
- Working Voltage: 24V
- Programming Language: C Language
- Fort Servo: 180-degree metal steering gear
- Output: laser sensor board, Blood strip light, other lights
- Power supply scheme: LM2596s AMS1117
- Working Time: >60 minutes
- Motor: 24V DC motor
- Motor Drive scheme: L298P
- Safety Protection: Anti-back connection of power input
- Chassis structure scheme: All terrain system
- Remote control: For iOS/Android app,PC, PS2 handle, VR(Not include)
- Size: 410*355*280mm
- Weight: about 8KG

Motor Parameters:
- Rated Voltage: 24V
- Max power: 11.5W
- Reduction ratio: 1:90
- No-load current: ≦100mA
- No-load speed: 107rpm
- Rated torque: 8.5kg.cm
- Rated torque: 0.83N.m
- Rated speed: 60rpm
- Rated current: ≦0.95A
- Locked rotor torque: ≧17.0kg.cm
- Locked rotor current: ≦2.3A
- Reducer length: 24L
- Reducer Encoder Wire: 990

Package Included:
- 1 x Car body
- 1 x Versus fort
- 1 x PS2 handle(Build-in power supply)
- 1 x ST-Link
- 1 x TTL
- 1 x Bag of Hardware
- 1 x Charger
- Several Table Tennis Balls
- 1 x User Manual
