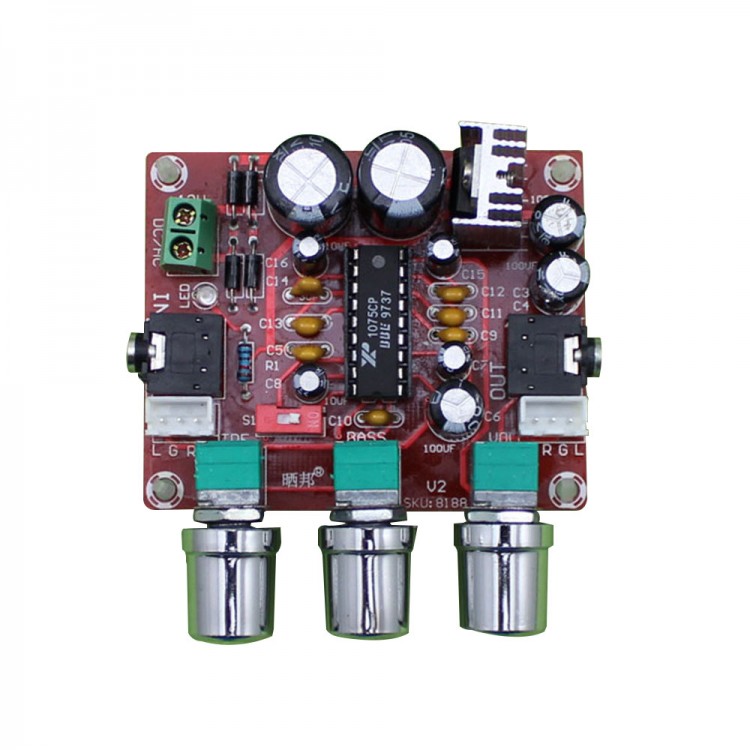

XR1075 Tone Board BBE Digital Audio Processor Exciter For Preamplifier Module
Description:
BBE sound enhancement processing technology can correct and restore signal loss and phase deviation of the audio system due to various reasons which led so faithfully reproduce the sound, the listener feel rich bass, positioning sense, clarity, brightness close to the ideal site effects, which for the pursuit of authentic beauty in the realm of music enthusiasts, "BBE" is the preferred weapon.
Features:
- XR1075 new bipolar technology
- Low noise figure
- The total harmonic distortion is less, and the volume of the chip is smaller (18-pin dual in-line package)
- The peripheral element is further simplified, in particular high-frequency extension of better
- High-frequency resolving power (resolution) enhancement adjustment range and low-frequency compensation adjustment range is wider than the XR1071.
- Minimum operating voltage : 6V, typ 12V,
- Operating current :15mA
- High frequency resolving power enhanced adjustment range:-0.5 ~ + 13dB
- Low-frequency compensation adjustment range: -0.5 ~ + 13dB
- High-frequency compensation adjustment range by changing respectively 4 (16) five (15) feet of input level control.
- It has the same internal XR1075 BBE processing circuit patent two channels.
Package included:
- 1 x XR1075 Tone Board
