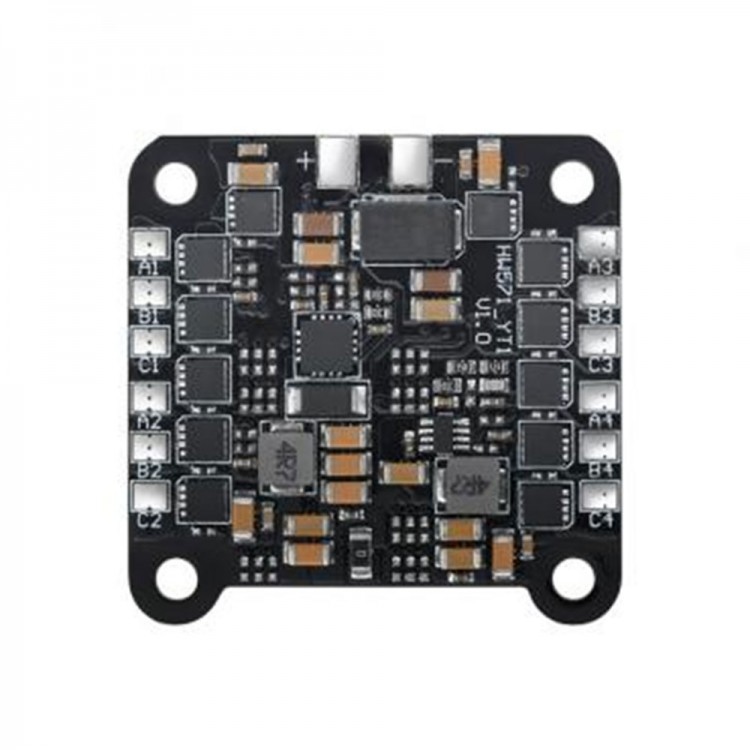

XRotor 12A Micro ESC 4 in 1 1-4S Electronic Speed Controller for FPV Racing Drone Quadcopter
Manual: Click here
Specifications:
- Product Name: Xrotor 20A 4IN1 Micro
- Product Number
- Cont./Peak Current: 12A×4/18A×4
- LiPo Cells: 1-4S LiPo
- BEC Output: 5V,1A
- Input Wires: Red-18AWG-100mm*1 / Black-18AWG-100mm*1
- Output Wires: solder tabs
- Input Connectors: No
- Output Connectors: No
- Note: All the wire length above is the original length not the length you see from the outside.
Features
- Firmware: HW Special Program for FPVs
- ESC Programming: Supported
- Stick Programming: Transmitter

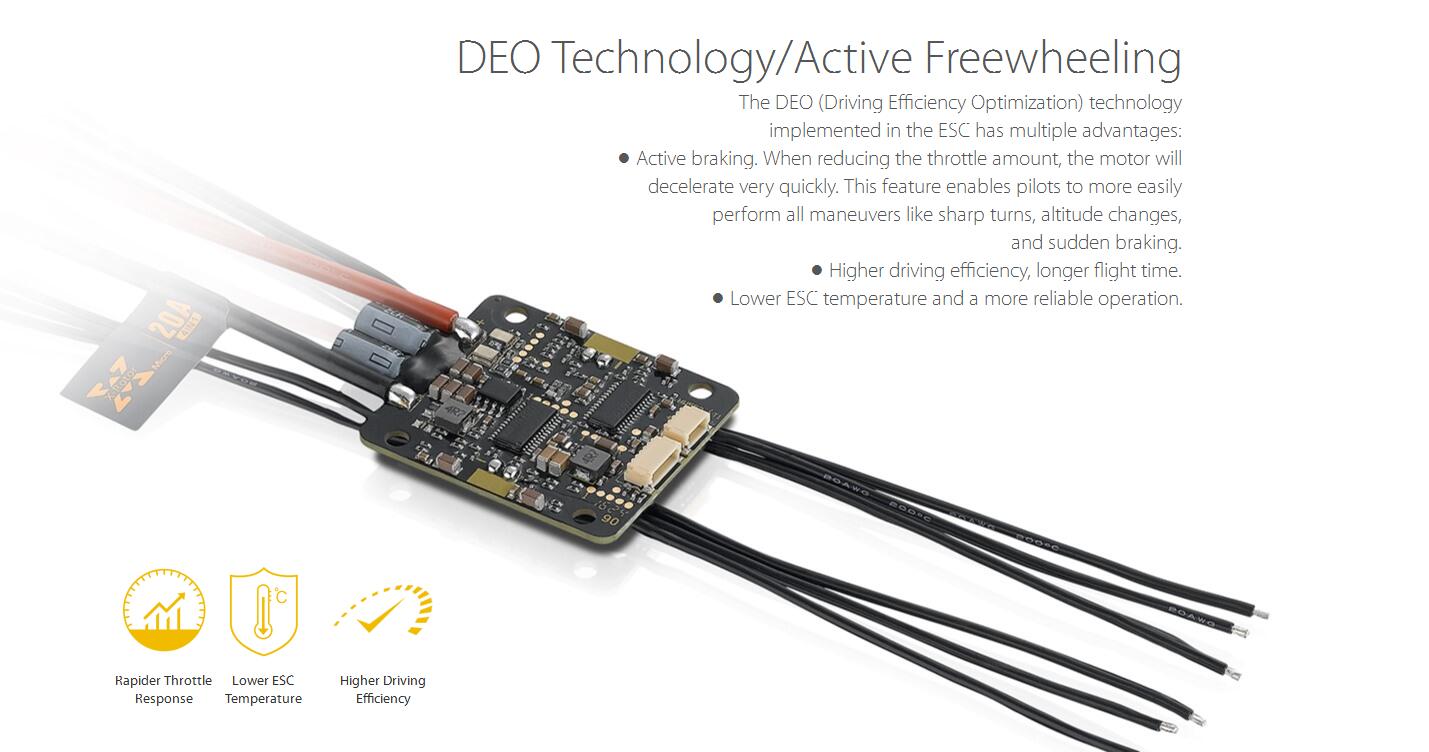

- DEO: Supported
- Throttle Range Calibration: Supported

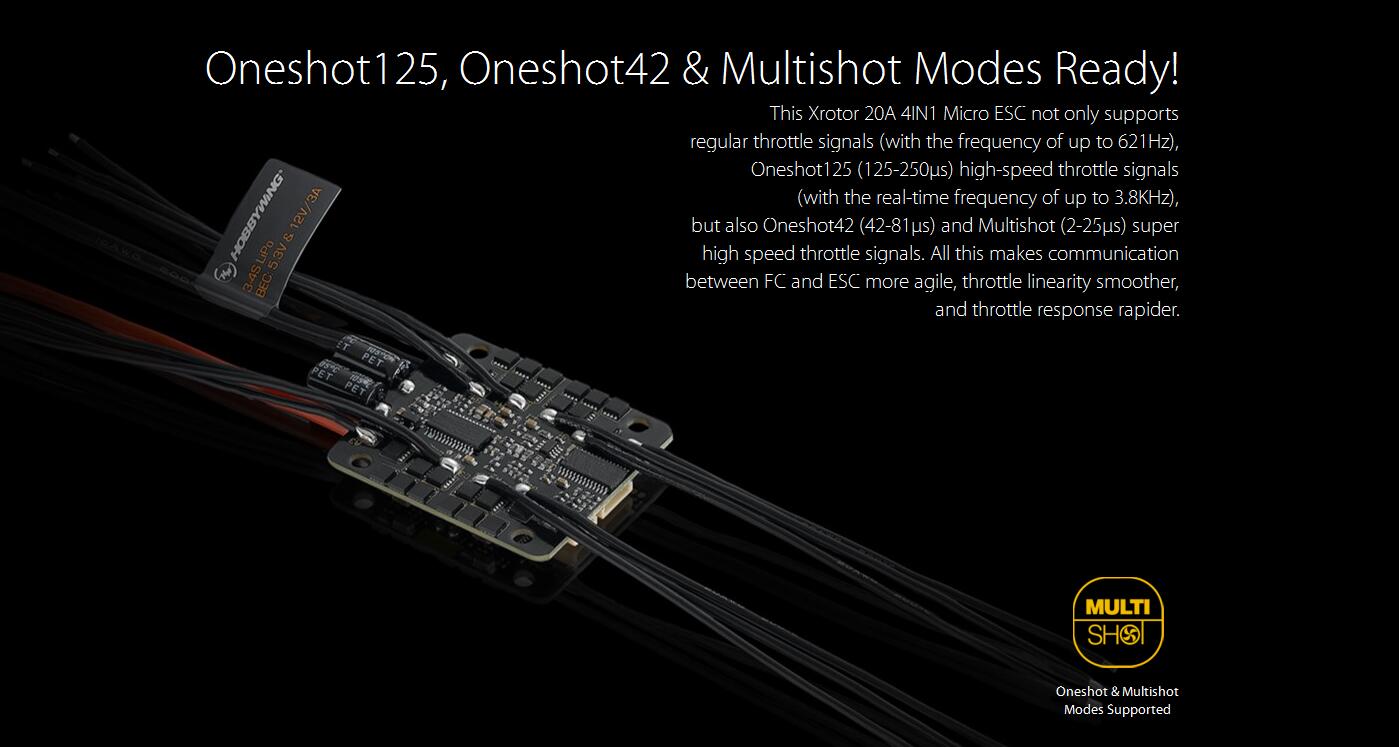

- Oneshot125 Mode: Supported
- Oneshot42 Mode: Supported
- MultiShot Mode: Supported
- Timing: Not Supported

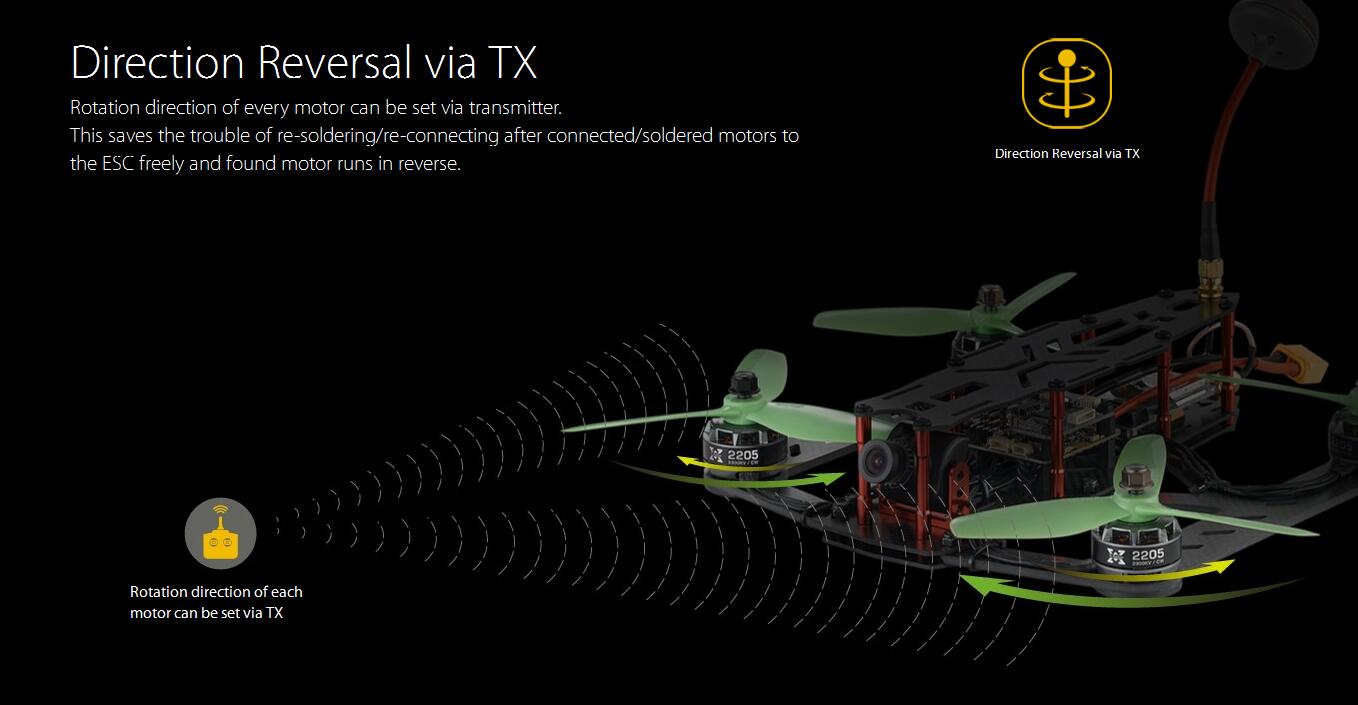

- Motor Rotation: Supported
- Size: 38.1x37.9x5.3mm
- Weight: 8g
- Applications: 150mm FPVs
Package list:
- 1 x XRotor 10A ESC
