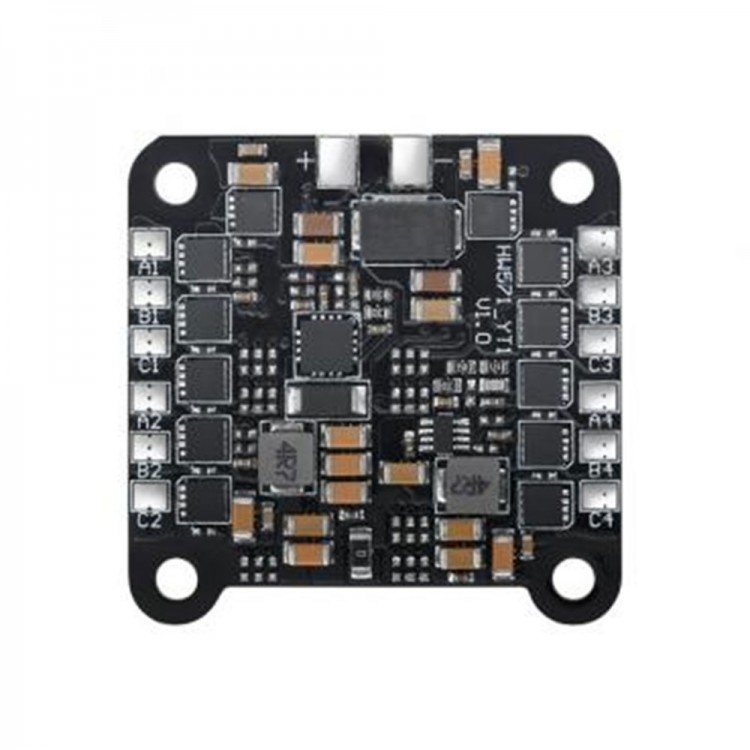

XRotor 20A Micro ESC 4 in 1 Electronic Speed Controller for FPV Racing Drone Quadcopter
Manual: Click here
Specifications:
- Product Name: Xrotor 20A 4IN1 Micro
- Product Number
- Cont./Peak Current: 20A×4/25A×4
- LiPo Cells: 3-4S LiPo
- BEC Output: 5.3V/12V,3A
- Input Wires: Black-20AWG-100mm*3 / Black-20AWG-95mm*3 / Black-20AWG-85mm*3
- Output Wires: No wires but solder tabs
- Input Connectors: No
- Output Connectors: No
- Note: All the wire length above is the original length not the length you see from the outside.
Features
- Firmware: HW Special Program for FPVs
- ESC Programming: Supported
- Stick Programming: Transmitter
- DEO: Supported
- Throttle Range Calibration: Supported
- Oneshot125 Mode: Supported
- Oneshot42 Mode: Supported
- MultiShot Mode: Supported
- Timing: Not Supported
- Motor Rotation: Supported
- Size: 54x36x7mm
- Weight: 24.5g
- Applications: 130-280mm FPVs
Package list:
- 1 x XRotor 10A
