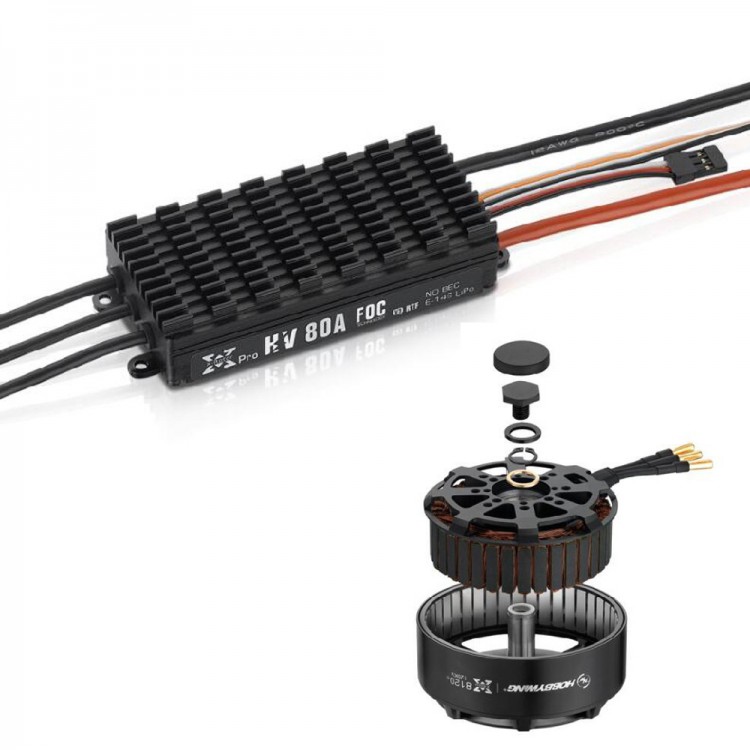

XRotor 8 FOC Power System 8120 100KV Motor + HV 80A FOC V3 ESC + Positive Propeller

XRotor 8 FOC Power System 8120 100KV Motor + HV 80A FOC V3 ESC + Positive Propeller


Product Description:
- XRotor 8 FOC Power System Combo Brushless 8120 100KV Motor + HV 80A FOC V3 ESC for FPV Racing Quadcopter+Propeller
- XRotor 8 FOC Power System Combo the max tension:13.6kg/axis (48V,sea level)
Recommend takeoff weight:5~7kg (48V,sea level),uses 12s battery,application environment temperature range:-20℃-65℃,power assembly weight:910g
- XRotor pro HV 80A FOC V3 ESC
- Optimized FOC power system
- Data-logging and multiple protections
- "Double" current protections
- Waterproof,rustproof and anti-corrosive
- High-efficiency heat dissipation structure
- Triple interlocking design
- Impact-resistant
- Heat-resistant

Parameter:
Motor mode: XRotor 8120 100KV:
- KV value:100
- Outer Diameter: 90.2mm
- Weight: 645g
- Fitted blade:HW2911
Outlet:enamelled wire straight out
- Recommended Props: 30 inch
(Note: this motor can rotate clockwise and counterclockwise.)
ESC mode: XRotor HV 80A FOC V3:
- Recommended Input Voltage: 12S LiPo
- Max. Input Voltage: 60.9V
- BEC:No
- Operating Pulse Width: 1100us-1940us (adjustable)
- Throttle Signal Frequency: 50-621Hz
- The max current:80 A (Requires excellent heat dissipation conditions)
- The max peak current (10s)100A (Requires excellent heat dissipation conditions)
- Input line:12AWG
- Output line:14AWG
- Weight:85g(Wire is not included)
- PWM input signal level:3.3V/5V (compatible)
- Compatible signal frequency:50-500Hz
- Working pulse width:1100us-1940us (Solidification,not support calibration)
Propeller:
- Diameter×Pitch:29x11 inch
- Weight:180g

Application: for 120-180cm Agricultural Drones

Package List:
- 1 x XRotor 8120 100KV Motor
- 1 x XRoto PRO HV 80A FOC V3 ESC
- 1 x Positive Propeller
